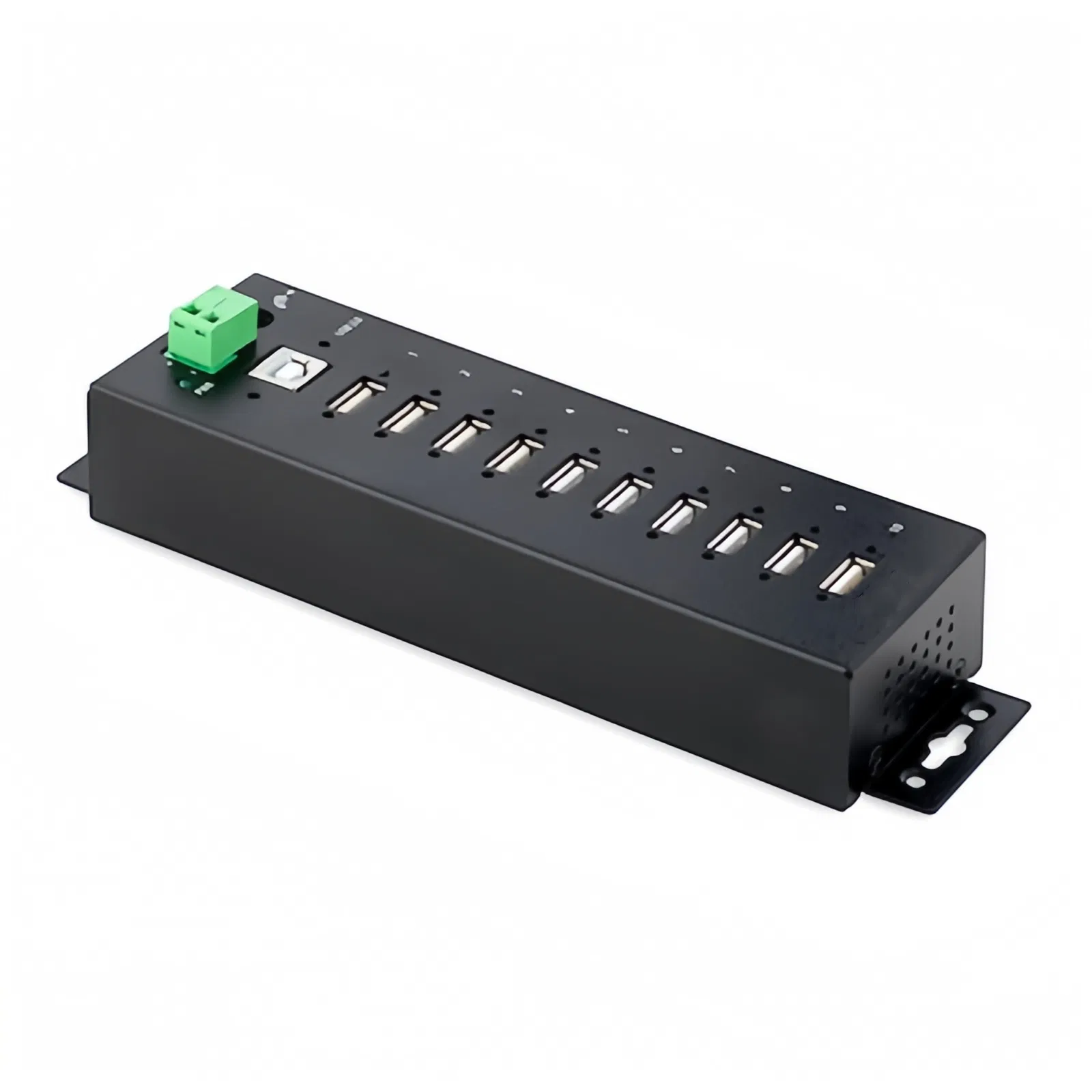

Custom 10-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-a Hub

Customization: Available
Interface Type: USB
Structure Function: HUB No Manage

Product Description

Basic Specifications
Model NO.
10-port usb 3.0 data hub with power adapter
Bandwidth
Customziation
Network Management
Customziation
Ports
10 Ports
Transfer Rate
5Gbps (USB 3.2 Gen 1)
Size
Rack-Mounted / Wall-Mounted
Signal Processing
Intelligent HUB
Industrial Class
16-Port Industrial Grade Available
Protection
15kV Air / 8kV Contact ESD
Surge Protection
350W
🛡️
Rugged Design
Metal housing for harsh environments
Fast Charging
BC 1.2 support up to 2.4A
🔌
Power Flexibility
7-24V DC Terminal Block
🏗️
Easy Mounting

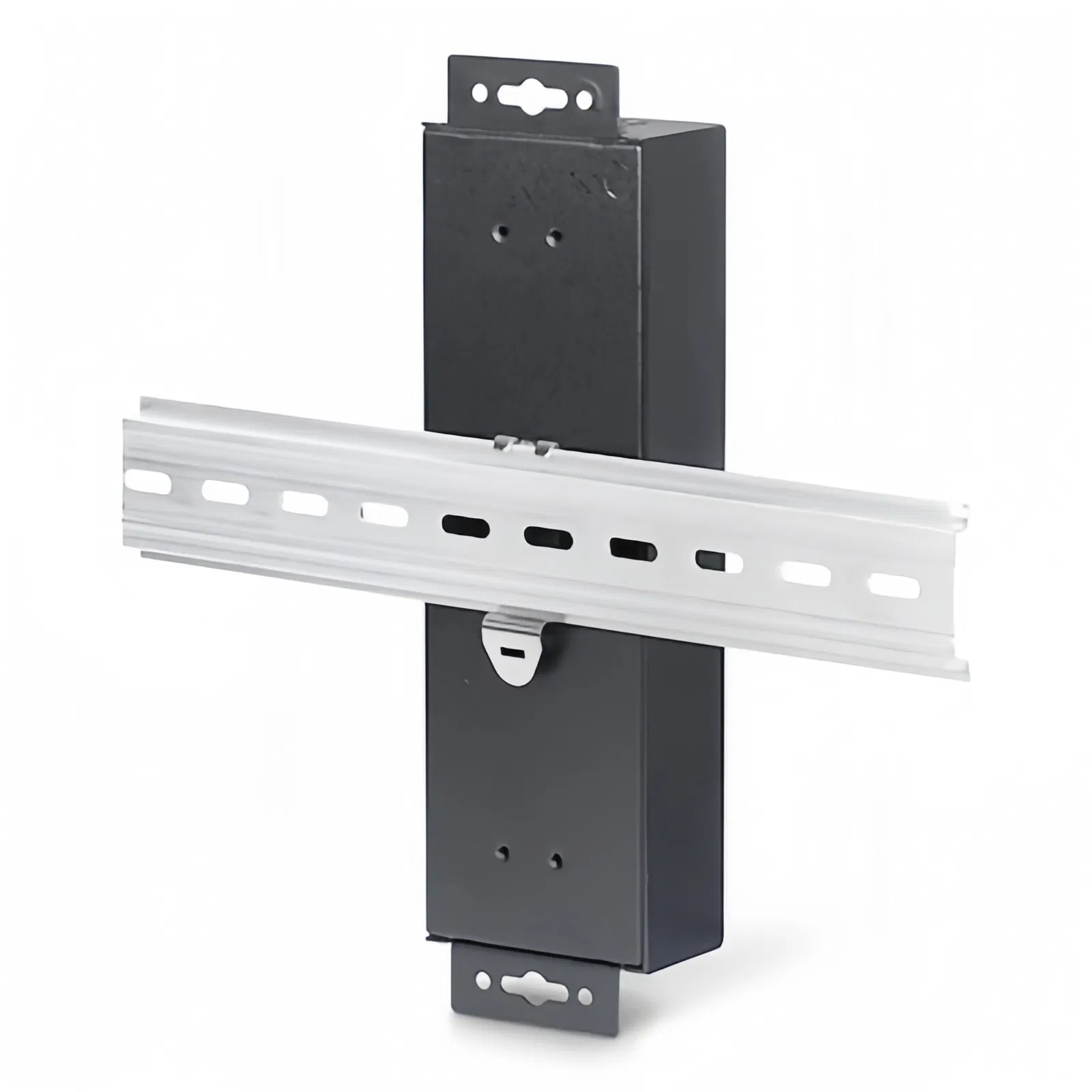

DIN Rail & Wall Mountable
Product Overview

This industrial-grade 10-port USB 3.2 Gen 1 hub provides the scalability and power supply flexibility required for harsh industrial environments, repair labs, and conference rooms. Featuring a rugged metal housing, it is designed to meet advanced connectivity requirements in factories and office settings.

Perfect for Harsh Environments

The hub delivers reliable performance with a heavy-duty metal casing. It supports a wide-range 7-24V DC terminal block input, allowing you to power the hub based on your specific input capabilities. It operates efficiently in temperatures ranging from 0°C to 70°C and offers integrated surge and ESD protection for every port.

Connect & Charge More Devices

Designed for high-volume connections, this hub offers 10 high-speed ports. It supports USB battery charging specification 1.2, delivering up to 2.4A on any port (maximum 50W total), ensuring your mobile devices charge faster than through traditional USB ports.

Product Gallery
Frequently Asked Questions
What is the maximum data transfer speed of this hub?
The hub supports High Speed USB 3.2 Gen 1 (formerly USB 3.0) with data transfer rates up to 5Gbps.
What kind of protection does it offer for industrial use?
It features a rugged metal housing, 15kV Air/8kV Contact ESD protection, and 350W surge protection to prevent damage to connected devices.
How can this USB hub be mounted?

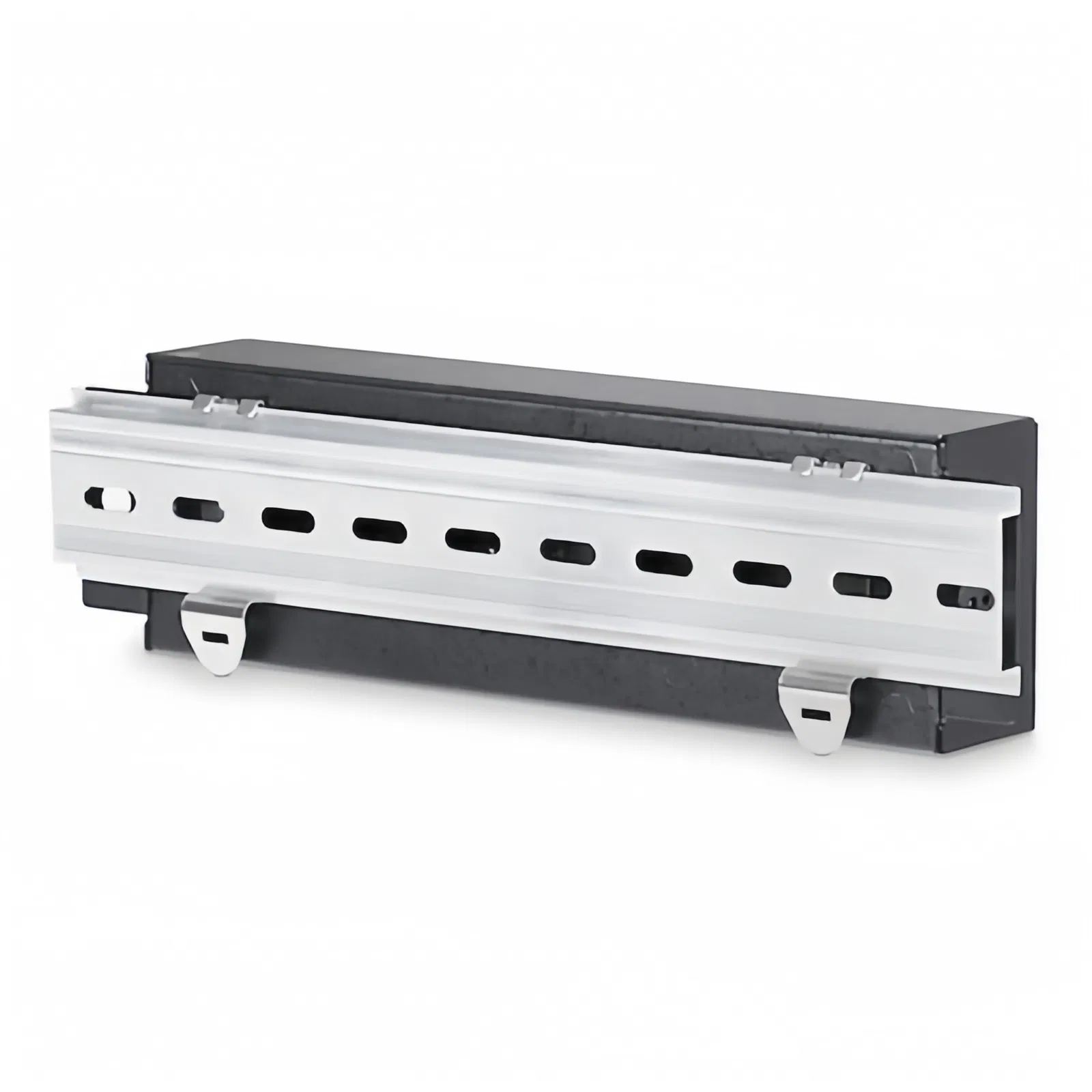

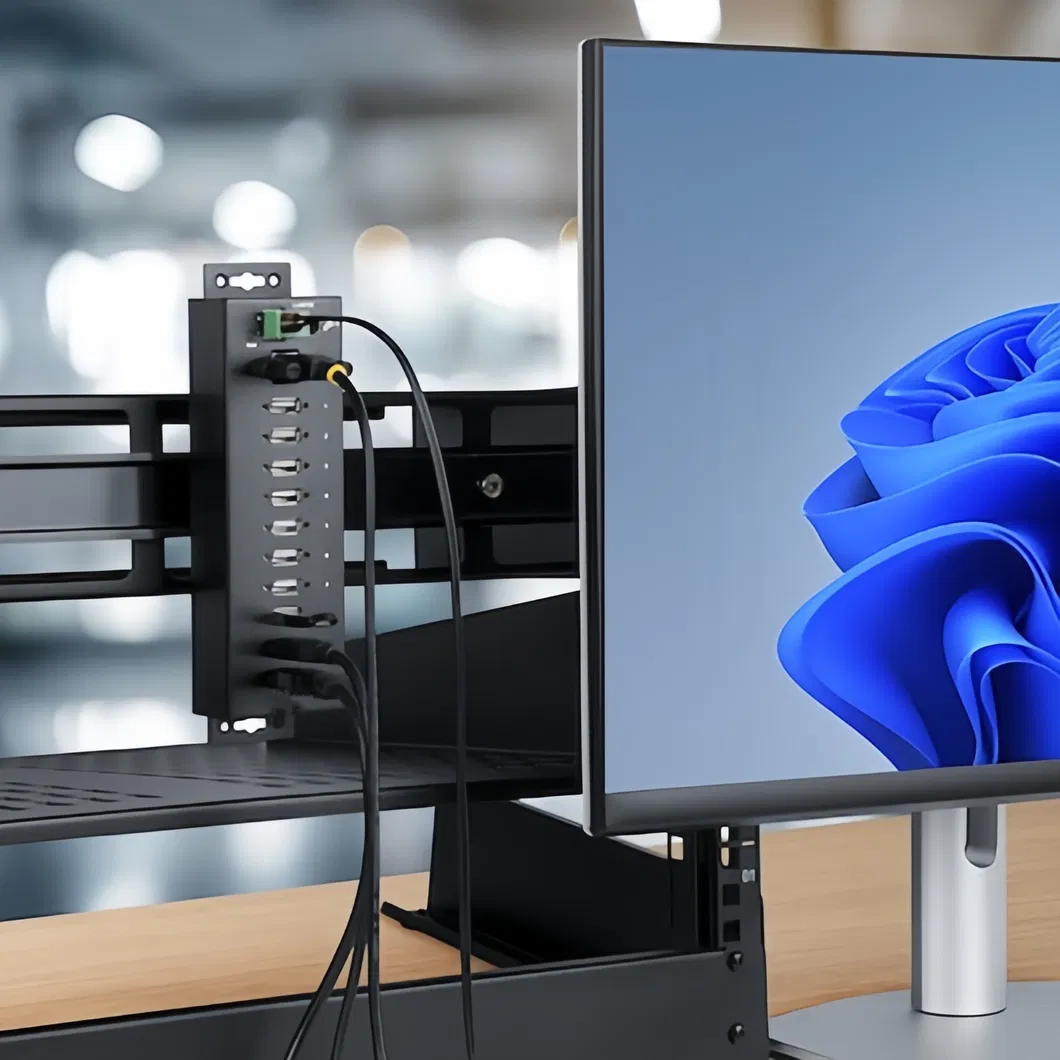

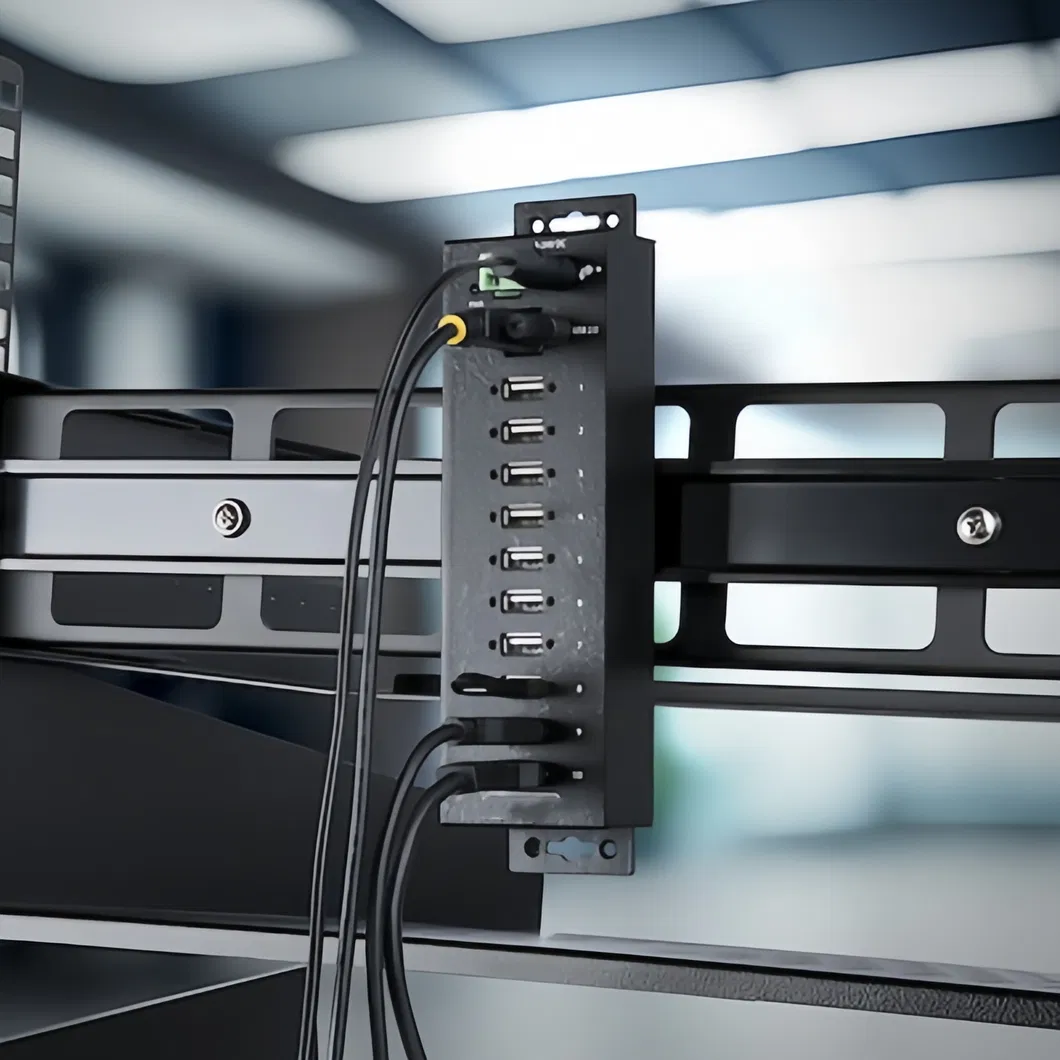

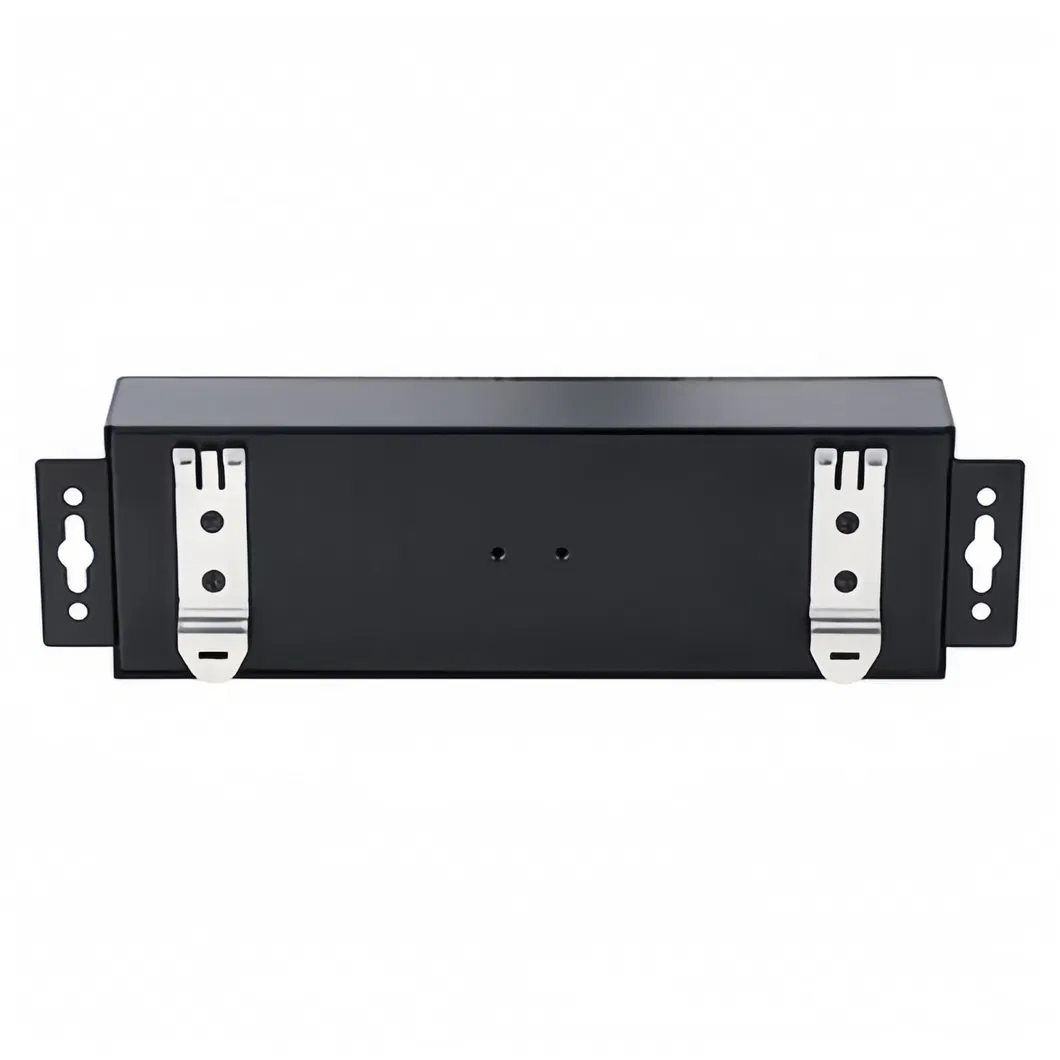

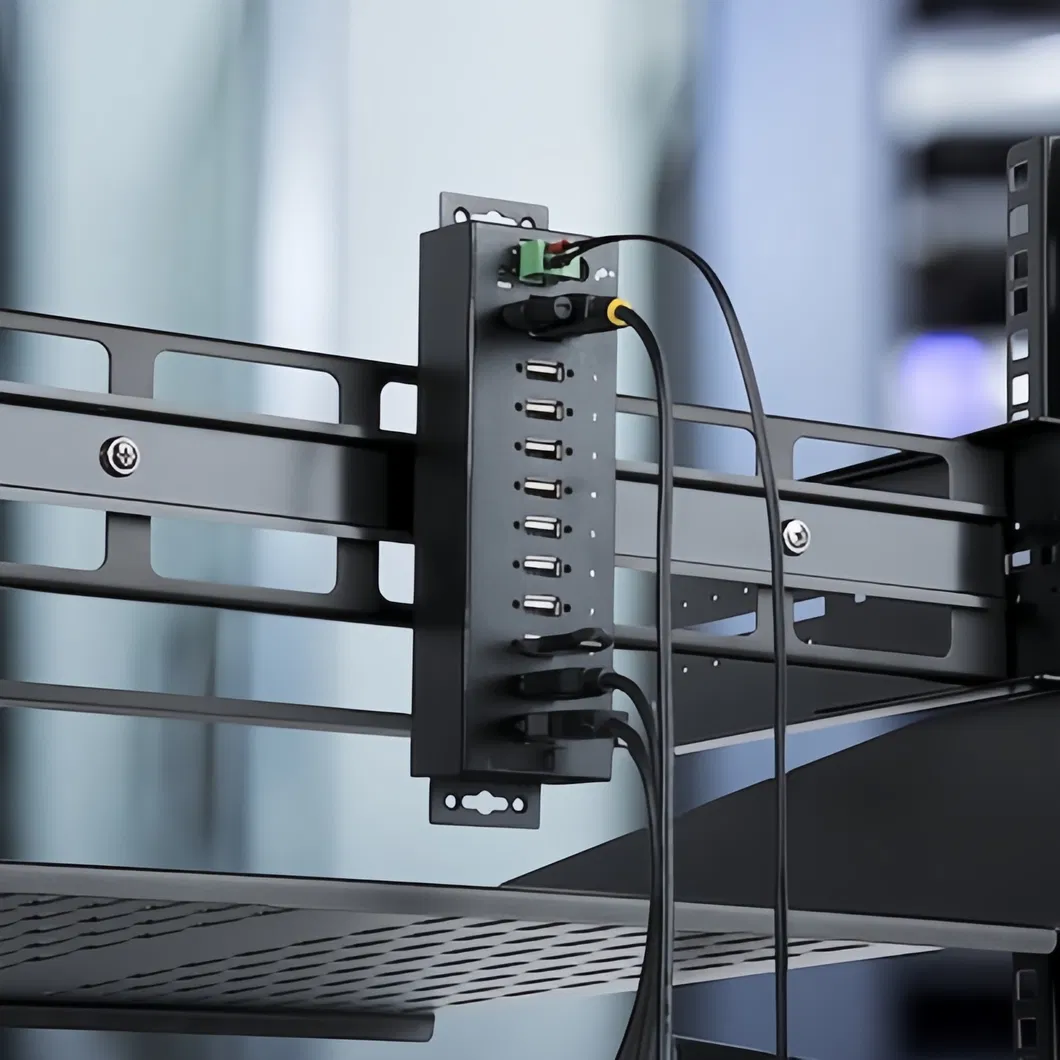

The hub is highly versatile and can be mounted on a wall, under a desk, or on a DIN rail using the included brackets.
What are the power input requirements?

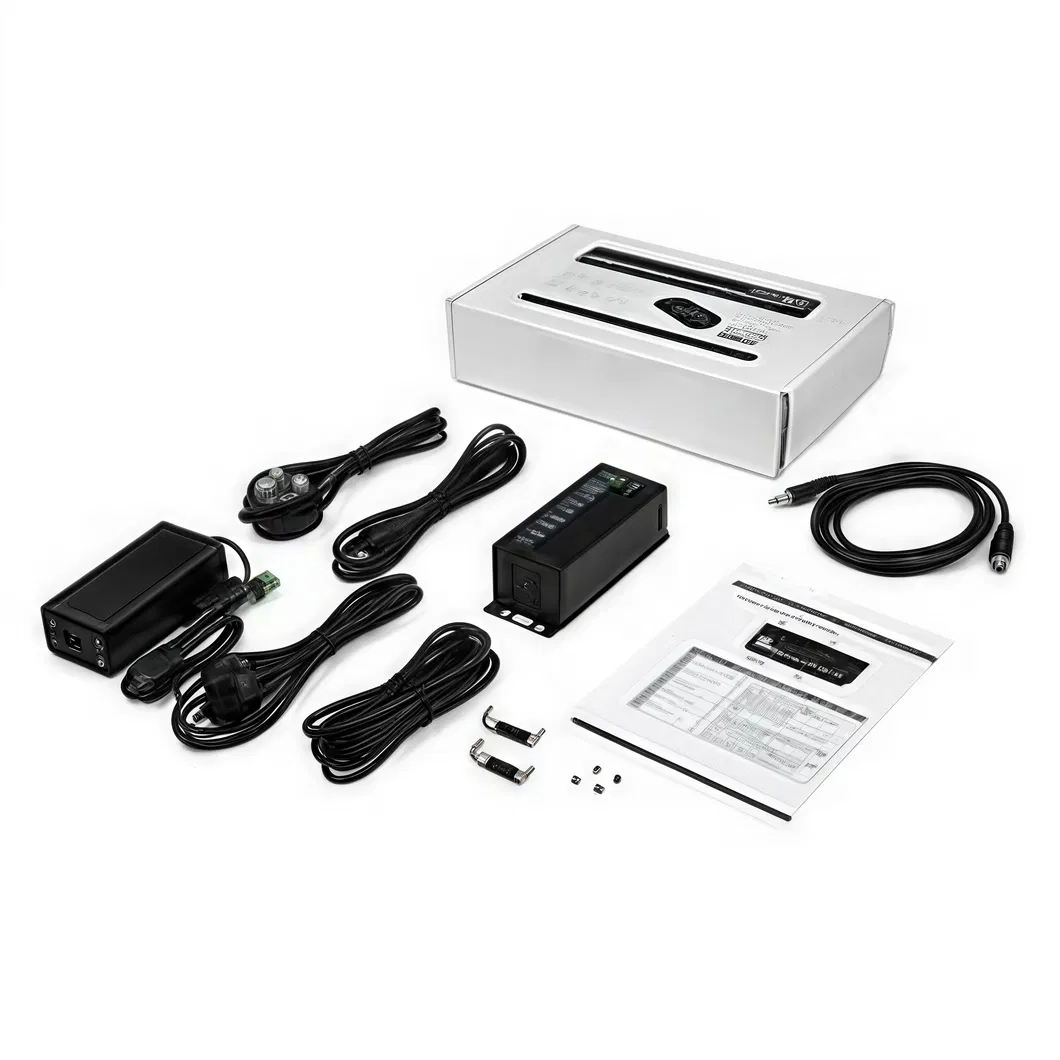

It supports a wide +7-24V DC range via a terminal block or can be powered by a standard AC outlet with the included adapter.
Does it support charging for mobile devices?
Yes, it supports USB Battery Charging Specification 1.2, providing up to 2.4A (12W) on ports with a total power budget of 50W.
Is this hub compatible with older USB devices?
Yes, the USB 3.2 Gen 1 hub is backward compatible with USB 2.0 and USB 1.1 devices.
