Basic Information
Model
Metal Industrial USB-A Hub
Network Management
Customization
Transfer Rate
Customization
Compatible Network
Customization
Signal Processing
Intelligent HUB
Type
16-Port Industrial USB 3.0 Hub
Product Description

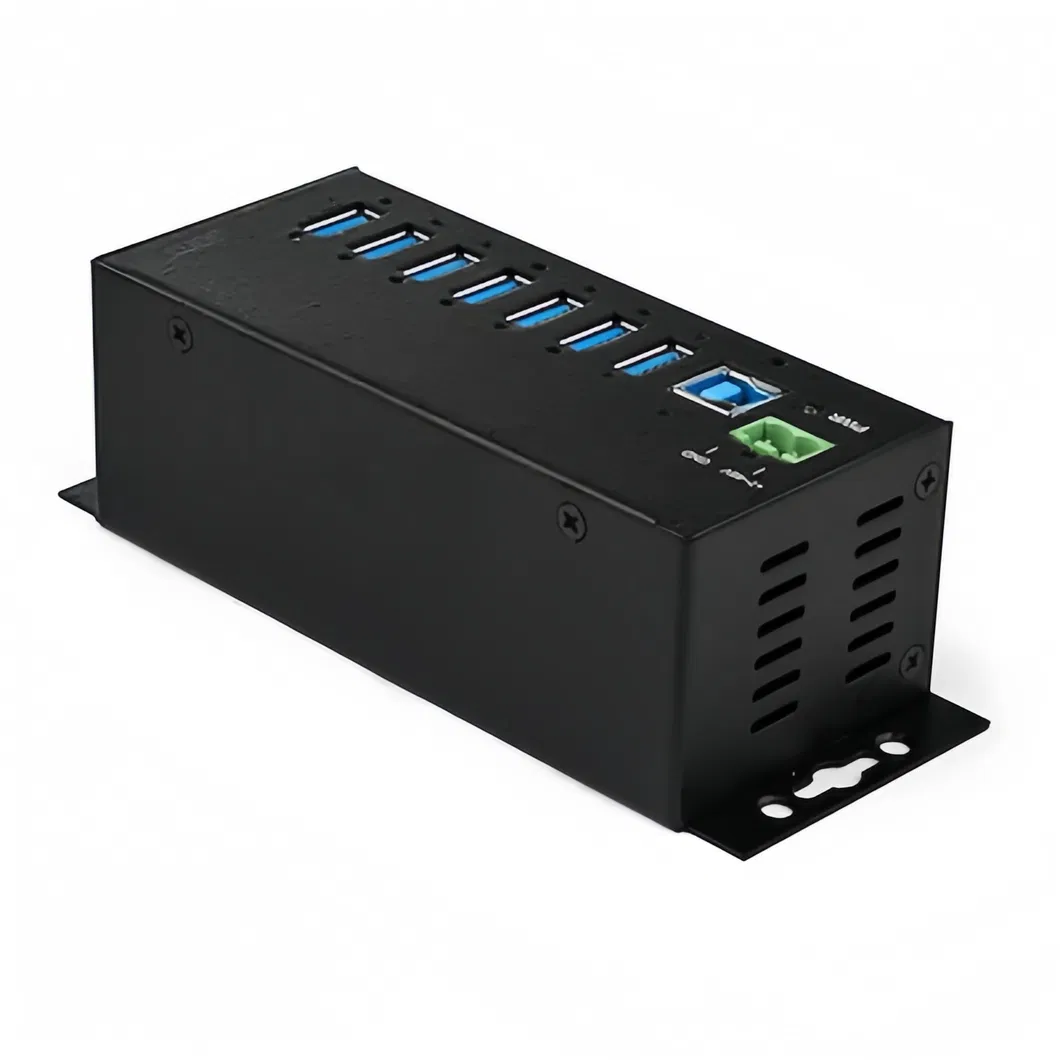

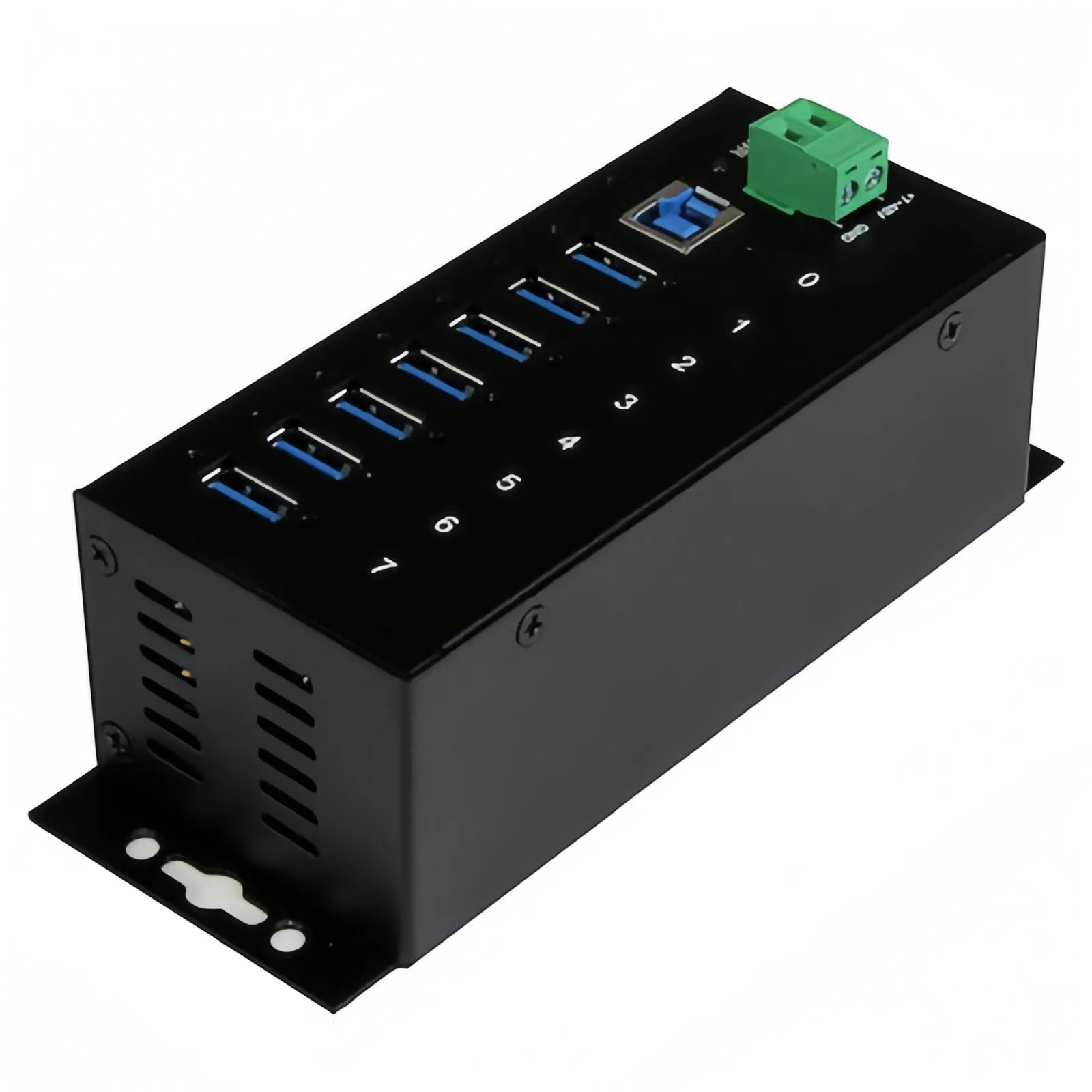

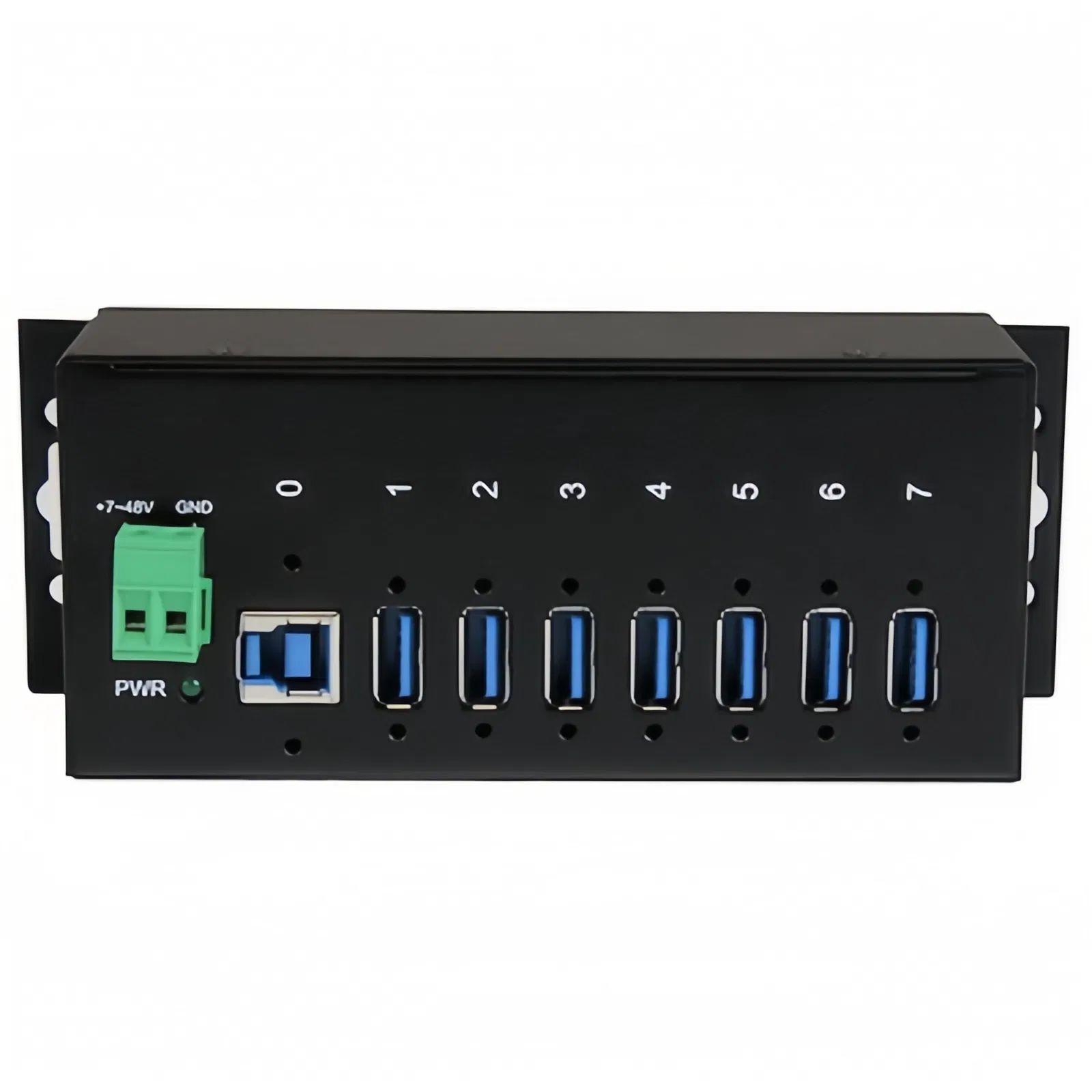

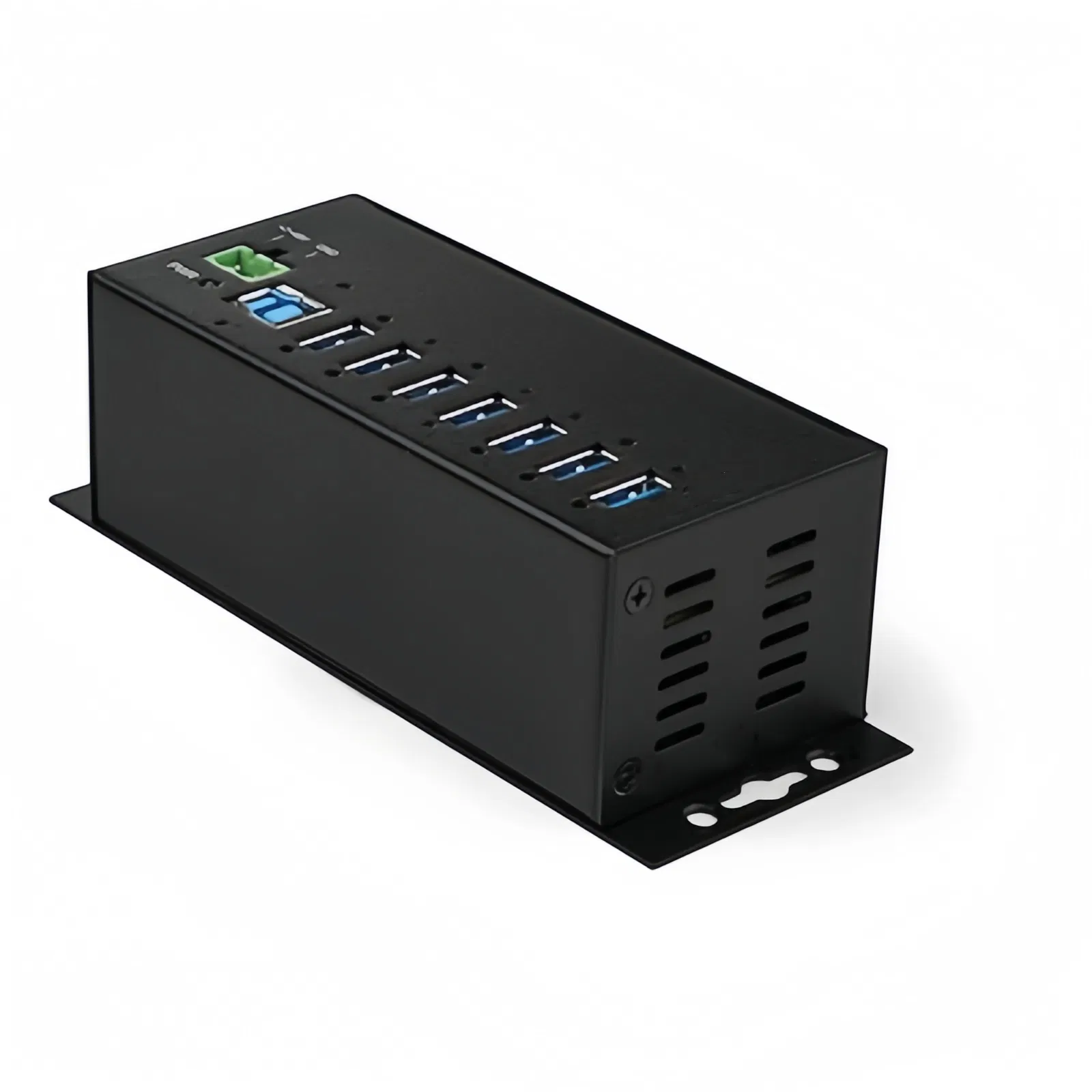

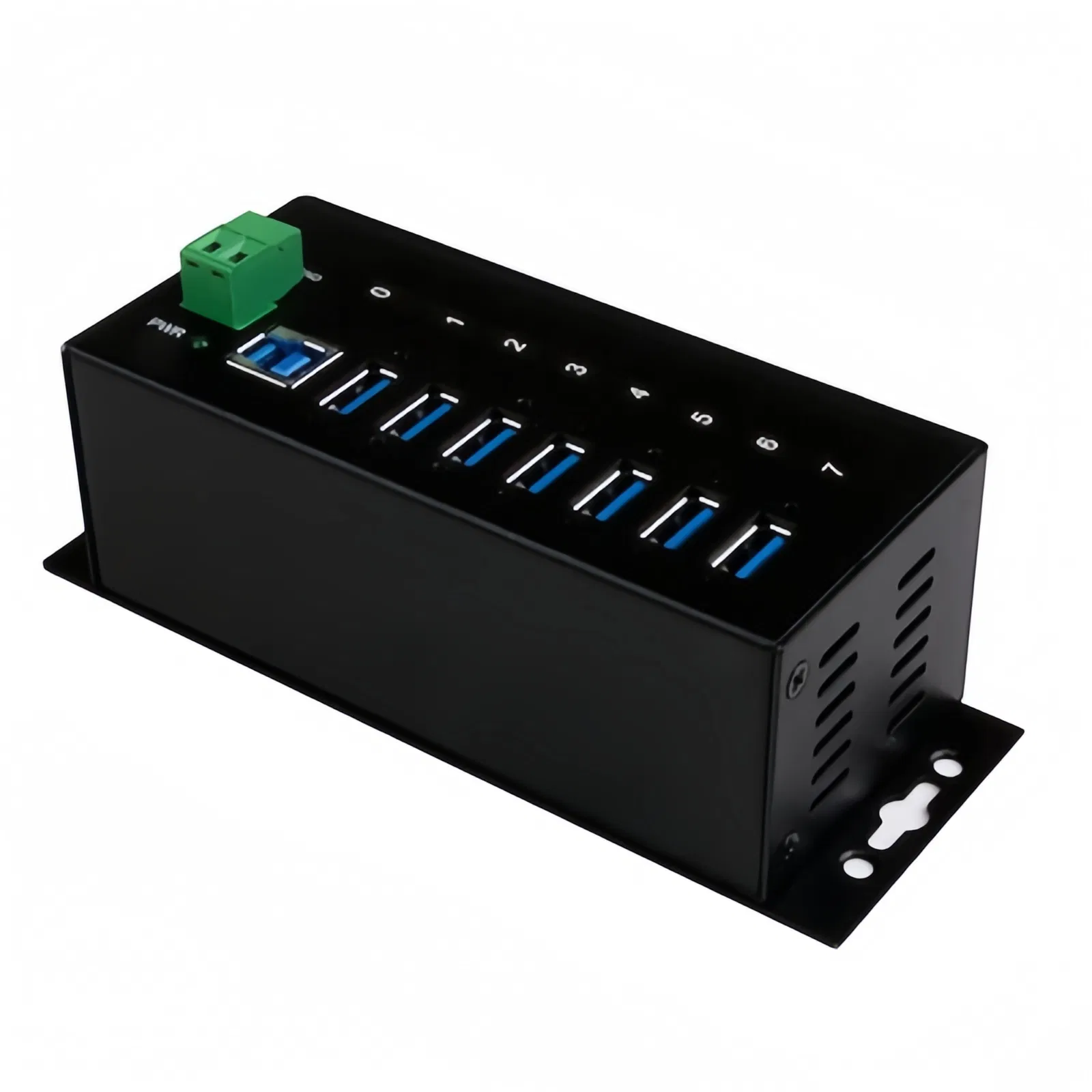

Industrial-Grade USB 3.2 Gen 1 (5Gbps) Hub
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
- RUGGED & RELIABLE: Metal housing with 15kV/8kV air/contact ESD protection & 350W surge protection for harsh environments.

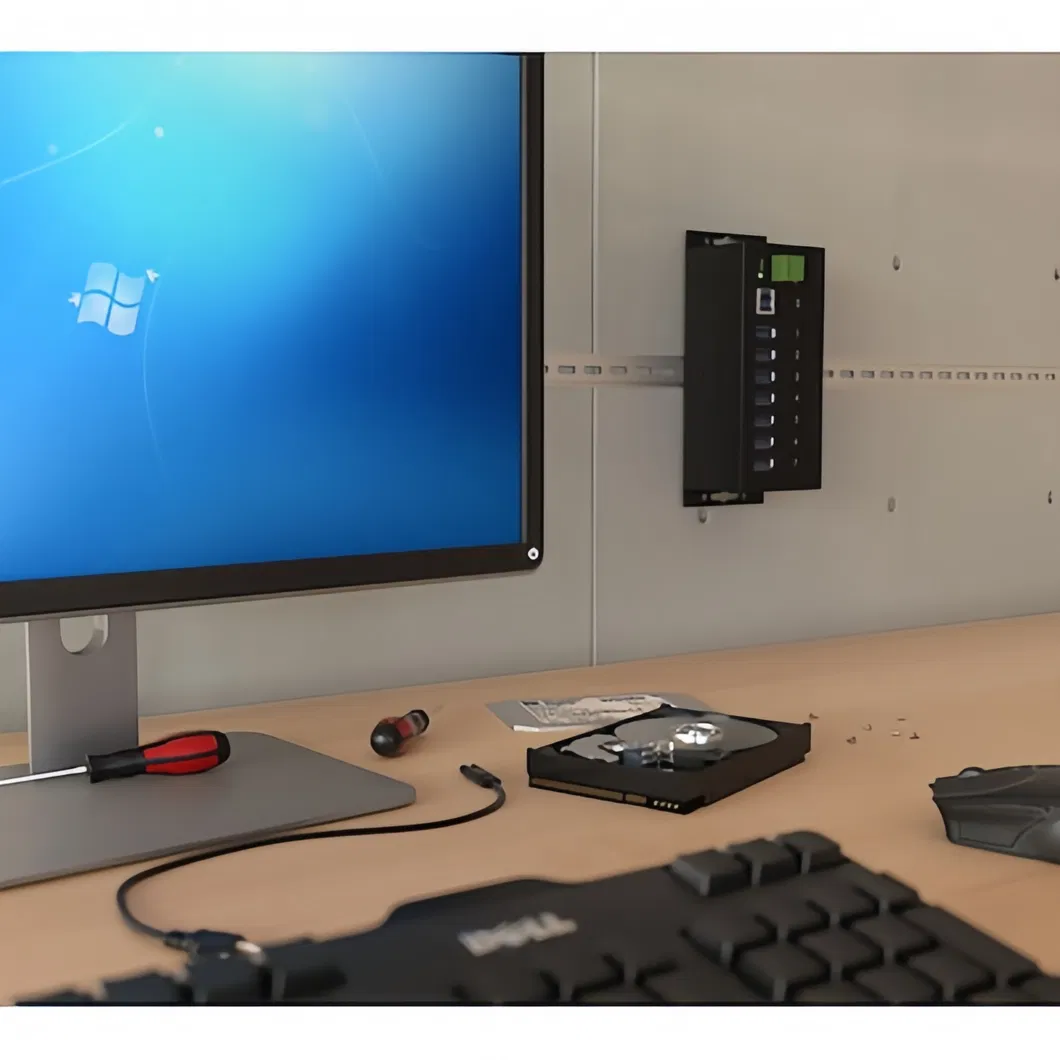

- MOUNTING OPTIONS: Securely installs on/under a desk, to a wall or DIN rail using built-in mounting ears.
- POWER FLEXIBILITY: Supports a +7-48 volt DC range via terminal block or included power supply adapter.
- POWER & CHARGE: Provides a total of 35W power, supporting BC 1.2 supplying up to 2.4A (12W) on any two ports.
- SCALABILITY: TAA compliant 7-port design for factory environments, labs, and office workstations.
Perfect for Harsh Environments
Designed for factory environments, this rugged hub supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, preventing damage to connected devices.
Frequently Asked Questions
What kind of protection does this USB hub provide for industrial use?
The hub features 15kV air and 8kV contact ESD protection, along with 350W surge protection for each port to safeguard your equipment.
What are the available mounting options?
This hub is highly versatile and can be mounted on a desk (on or under), to a wall, or onto a standard DIN rail using the included brackets.
What is the power input range for this device?
It supports a wide-range DC terminal block input from +7V to 48V, providing flexibility for various industrial power configurations.
Can this hub charge mobile devices?
Yes, it supports USB battery charging specification 1.2, delivering up to 2.4A on any port with a maximum total output of 35W.
What is the operating temperature range?
The hub is designed for reliability in demanding environments with an operating temperature range of 0°C to 70°C.
What data transfer speed does it support?
It supports High-Speed USB 3.2 Gen 1 (formerly USB 3.0), providing data transfer rates up to 5Gbps.
