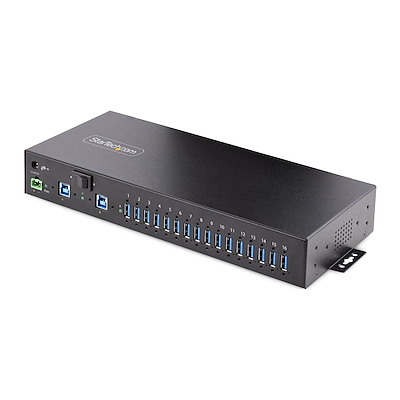

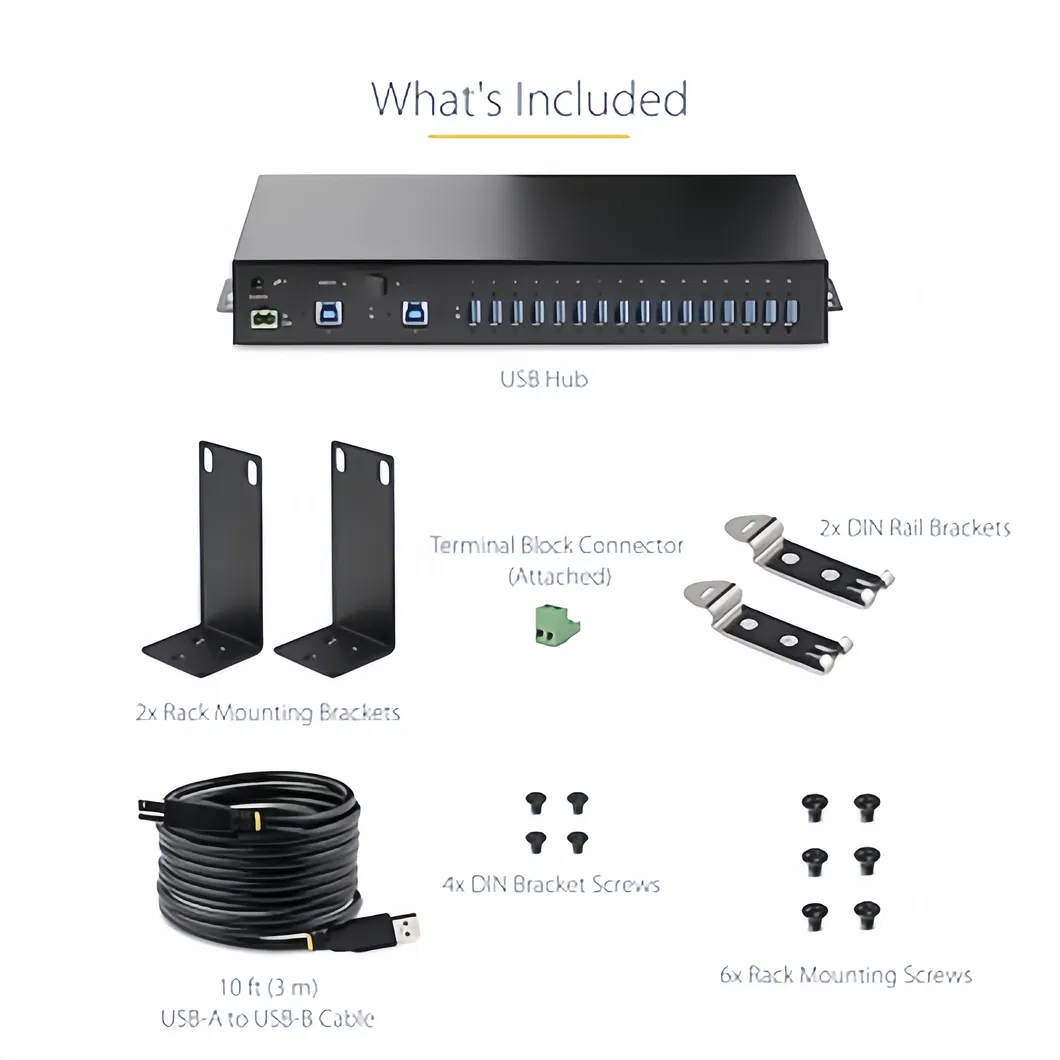

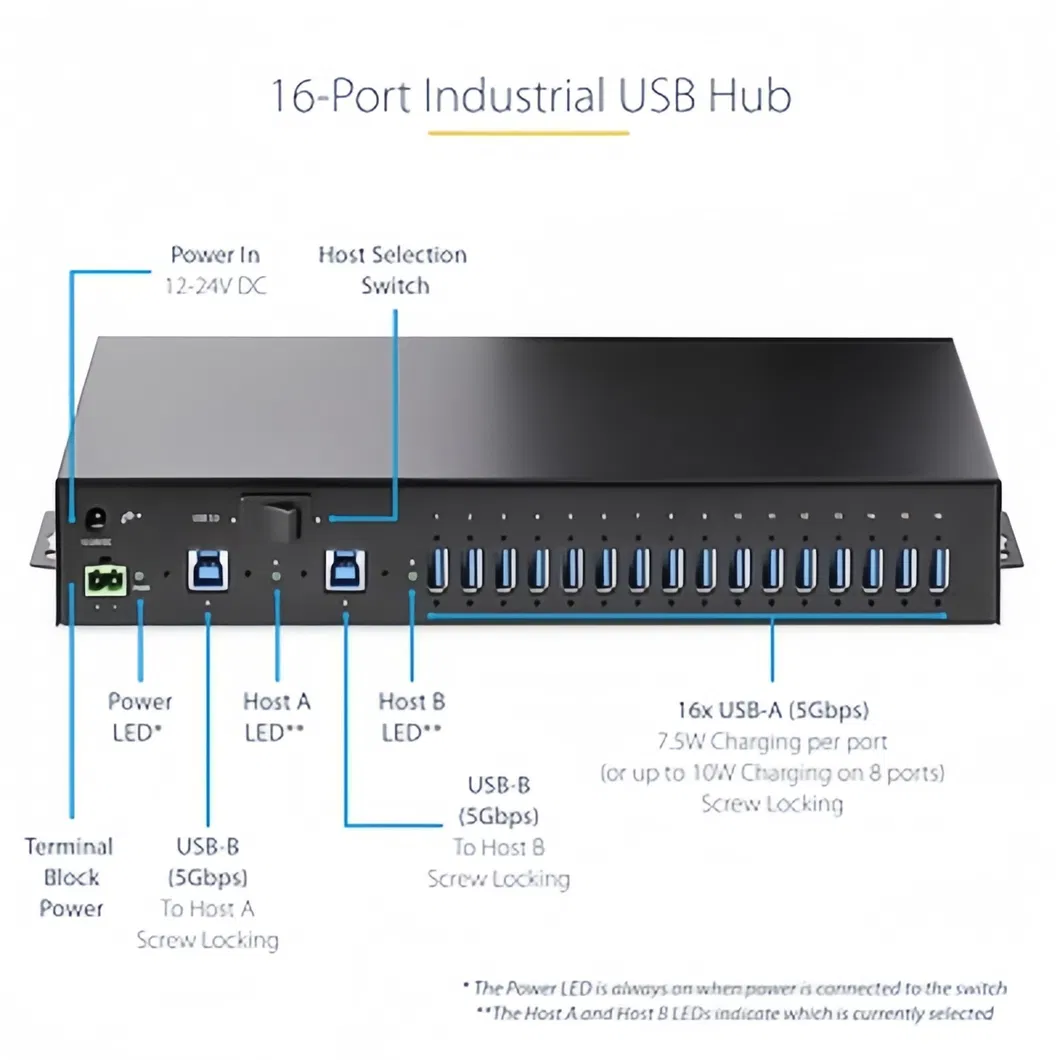

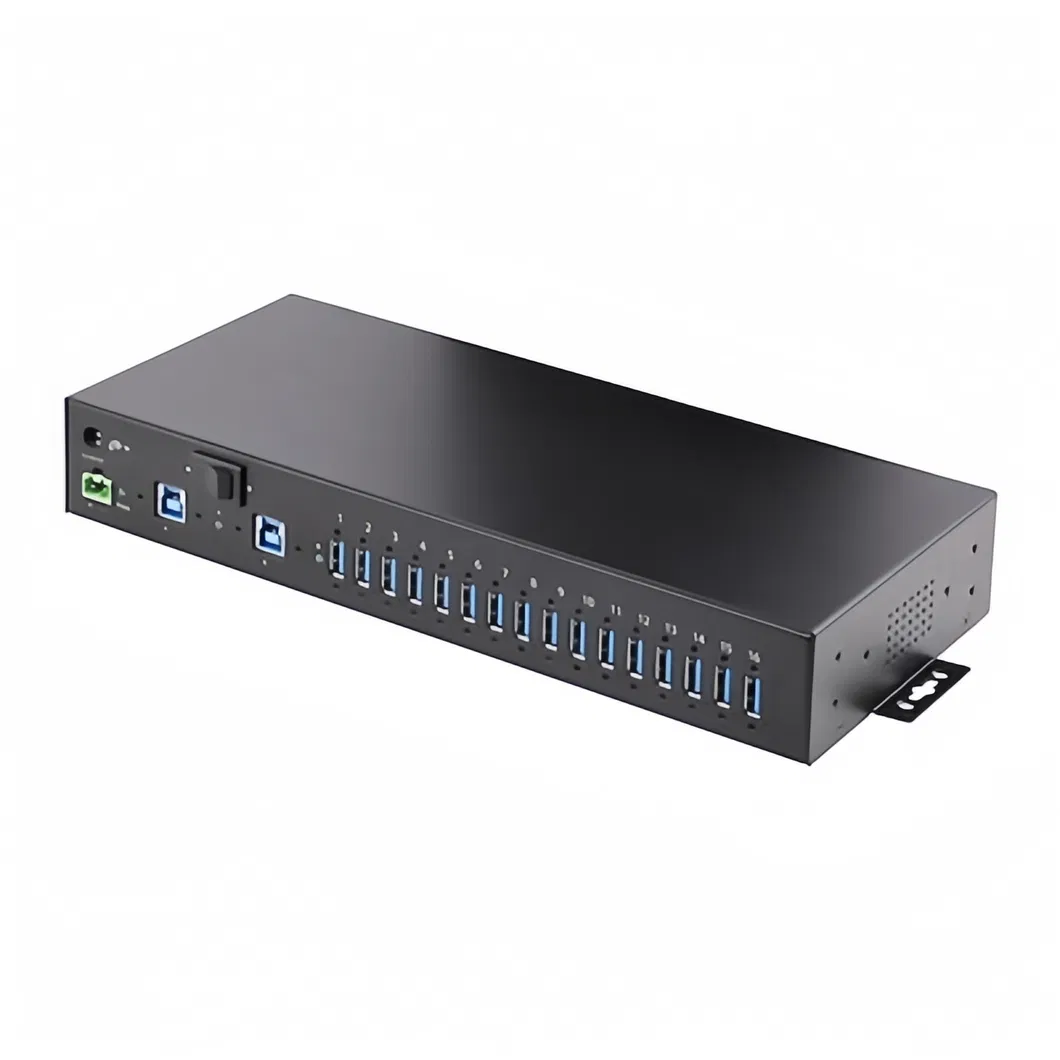

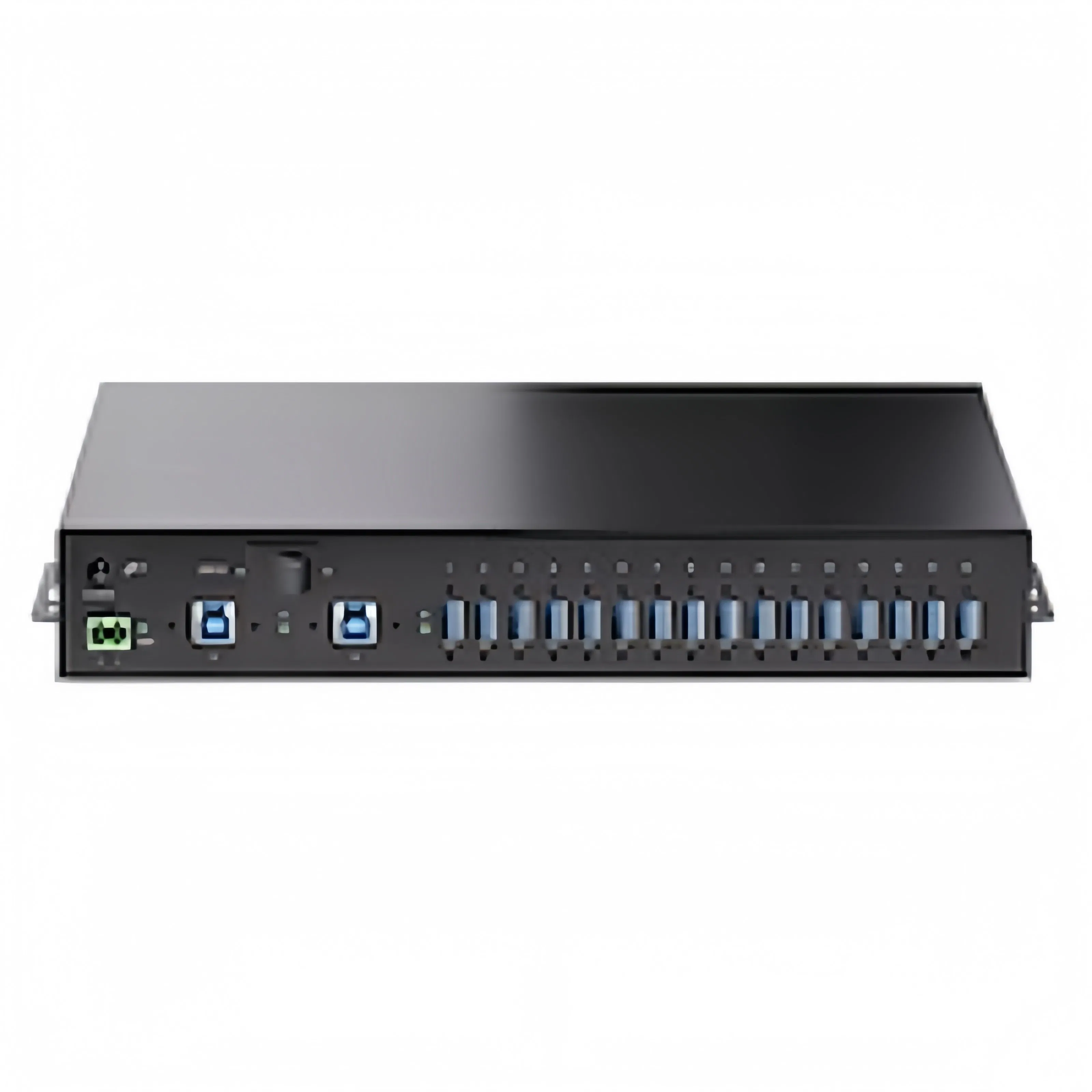

The 16-Port Industrial USB 3.0 Hub with 5Gbps of shared bandwidth provides fast and efficient transfer speeds, making it an ideal solution for data-intensive applications. The hub features a 2-port host switch, enabling users to switch between two host devices, streamlining device management. The hub also includes ESD protection to safeguard against static electricity. Versatile mounting hardware is included for flexible installation options. Additionally, the hub supports USB BC 1.2, enabling fast charging of battery-powered USB devices. The combined features of this USB hub ensure stable and reliable functionality for use in IT and industrial applications.

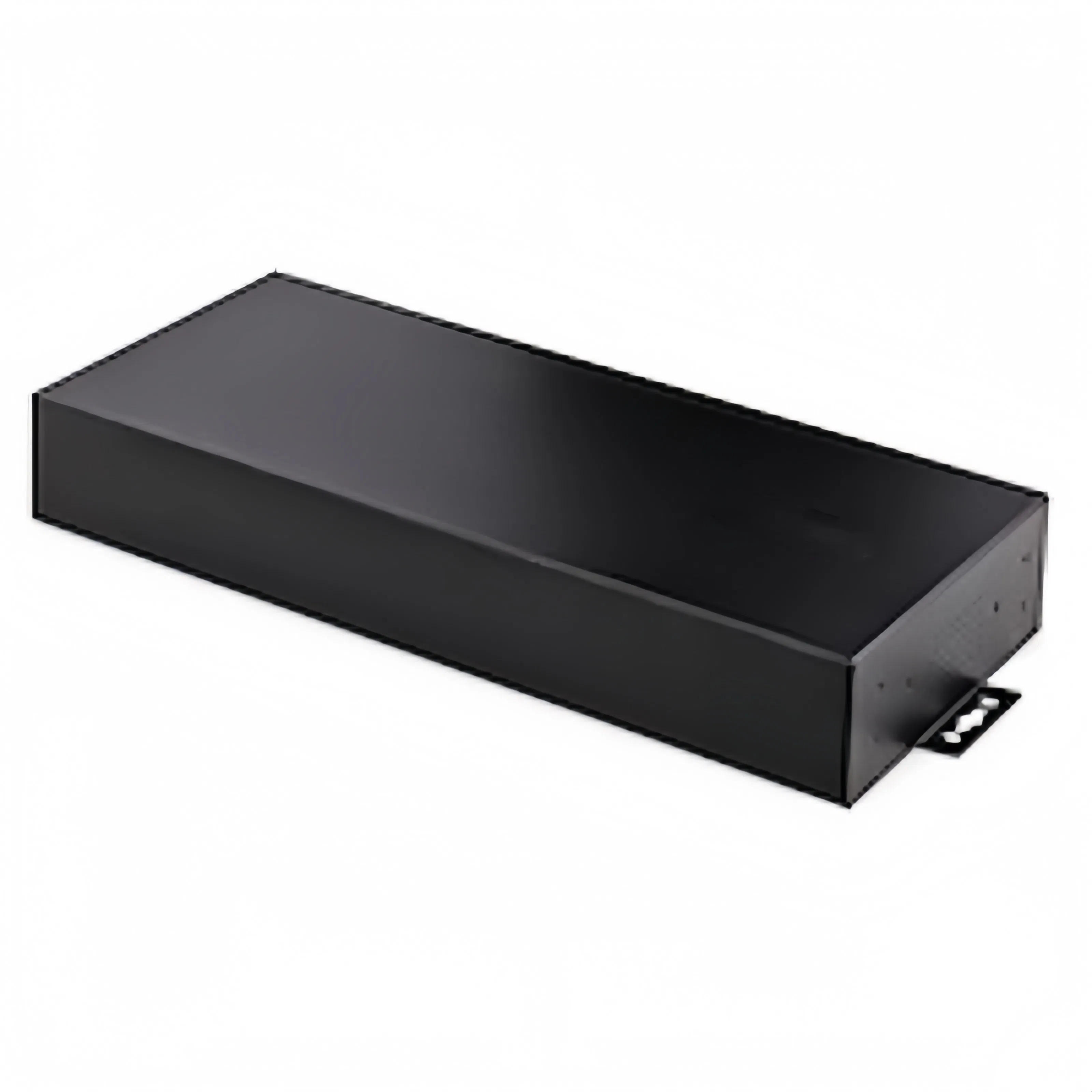

This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection to safeguard against damage caused by static electricity. These features make the USB hub an excellent choice for factories, production lines, and other industrial settings.

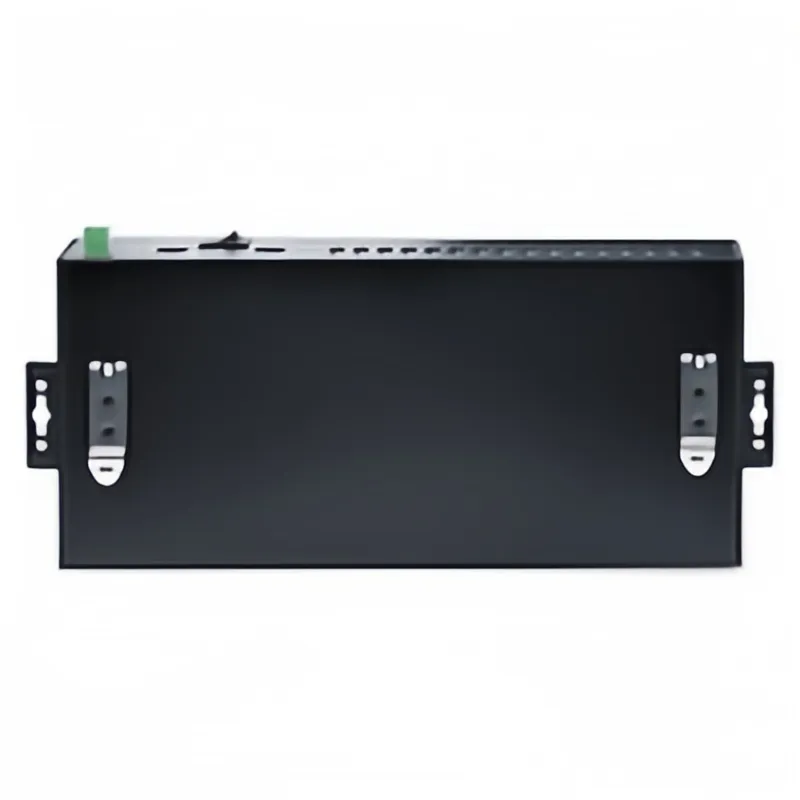

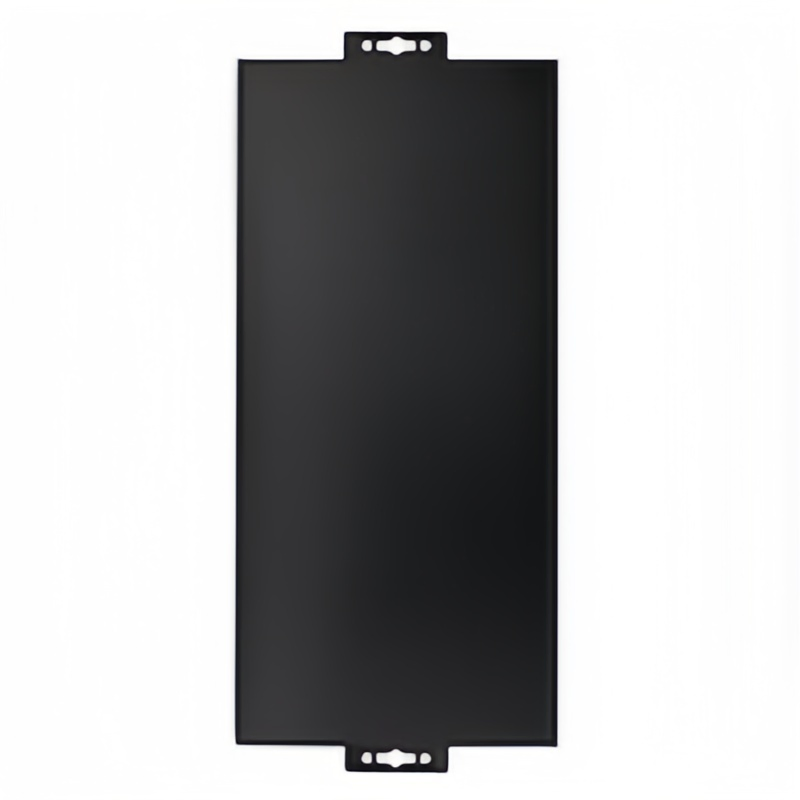

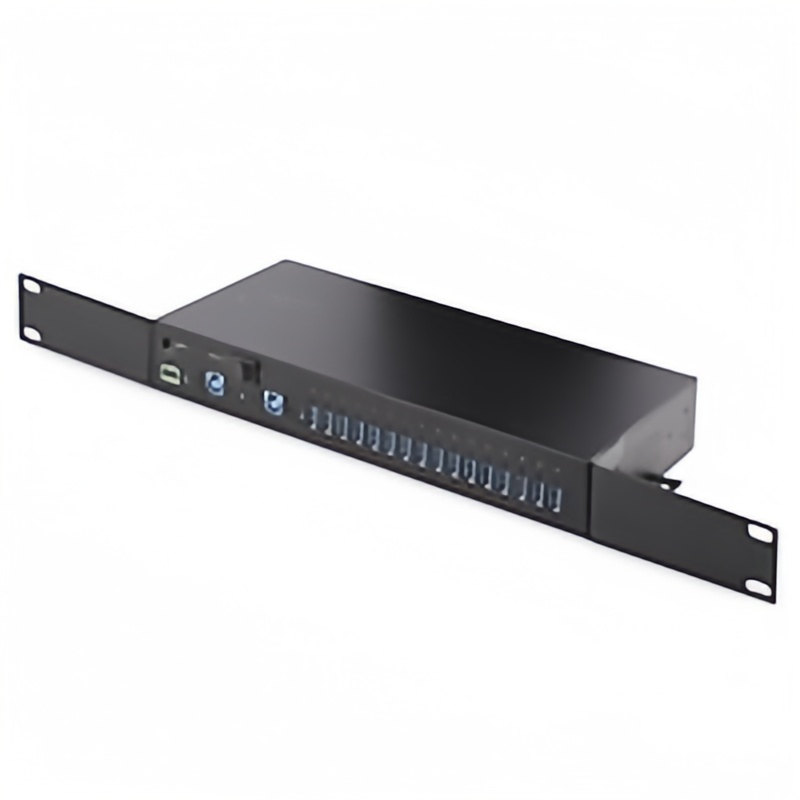

The 19" rackmount rails are compliant with EIA-310 standards for 1U space. The built-in surface mount is perfect for workstations, while the standard DIN-rail hardware suits industrial automation equipment. This hub is OS independent, ensuring compatibility with Windows, macOS, and Linux.
| Hardware & Performance | |
| Interface | USB 3.2 Gen 1 (5Gbps) |
| Chipset ID | Genesys Logic - GL3523 |
| External Ports | 16 - USB 3.2 Type-A (9 pin) |
| Host Connectors | 2 - USB 3.2 USB Type-B (9 pin) |
| ESD Protection | +/-15kV (Air), +/-8kV (Contact) |
| MTBF | 122,383.8 Hours |
| Physical & Environmental | |
| Material | Steel |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Input Voltage | 12 ~ 24V DC |
| Form Factor | 1U Rackmount |
