| Model NO. | 16 port industrial usb 5gbps network switch |
| Bandwidth | Customization |
| Network Management | Customization |
| Ports | 16 Ports |
| Transfer Rate | 5Gbps (USB 3.2 Gen 1) |
| Compatible Network | Customization |
| Size | Rack-Mounted (1U 19") |
| Signal Processing | Intelligent HUB |
| Housing | Industrial Metal Enclosure |
| Origin | China |

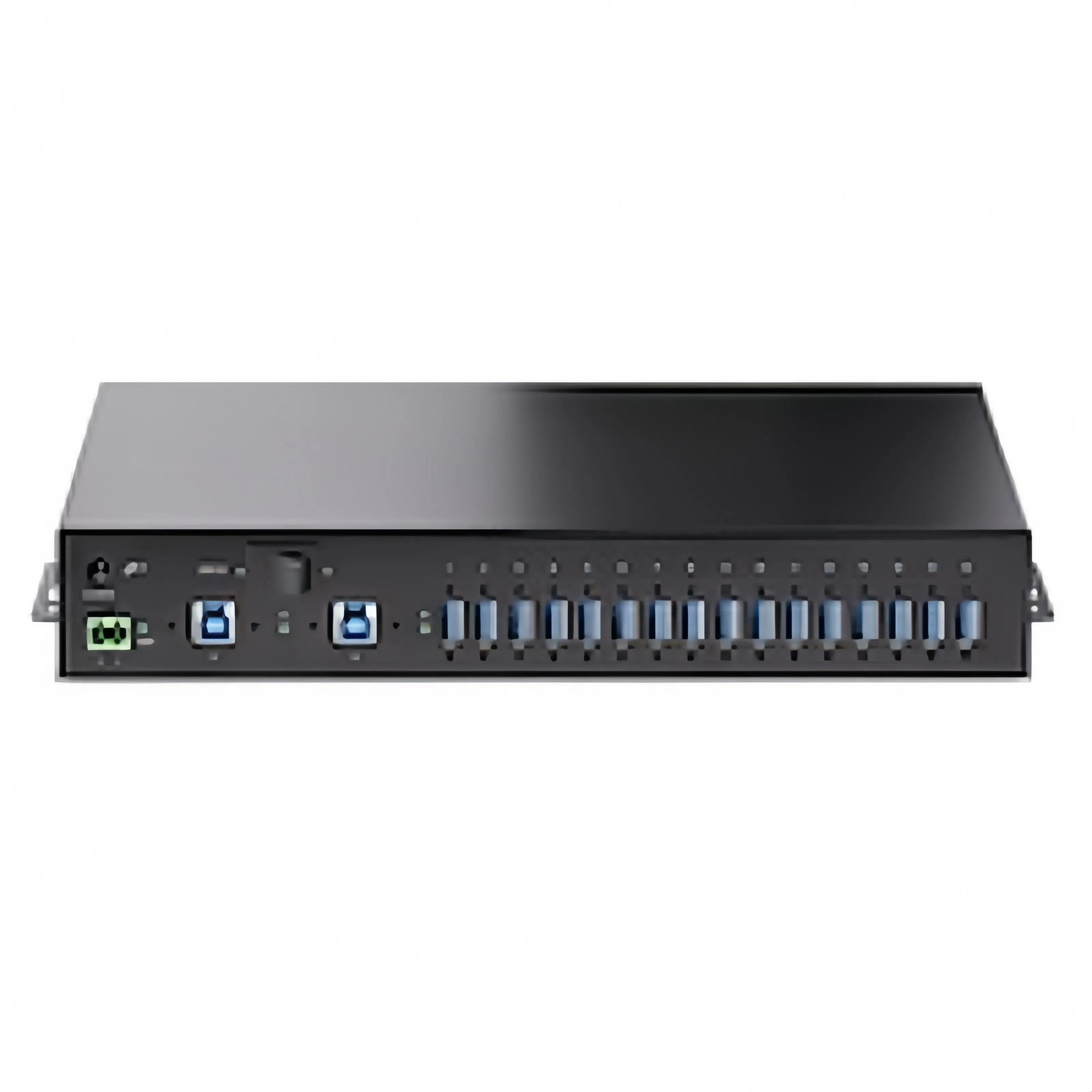

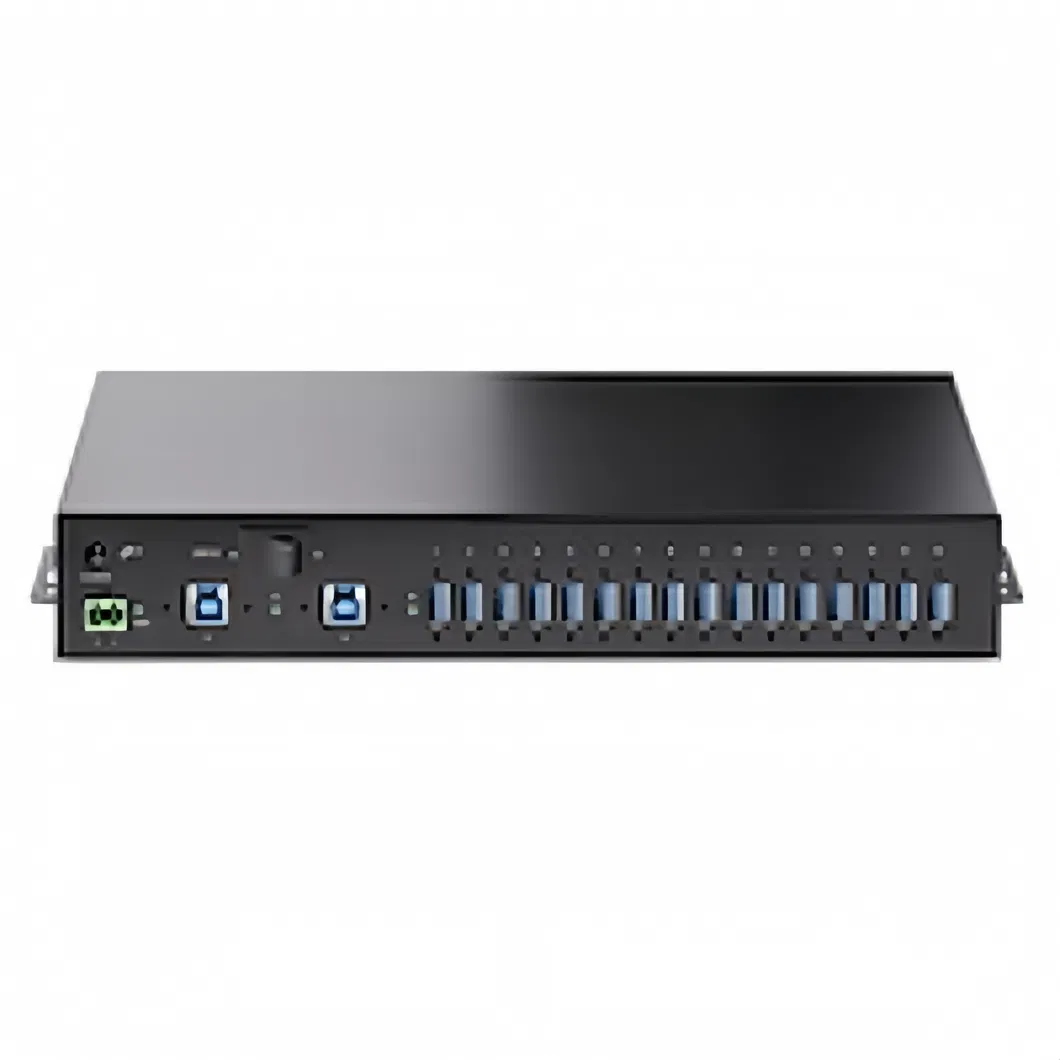

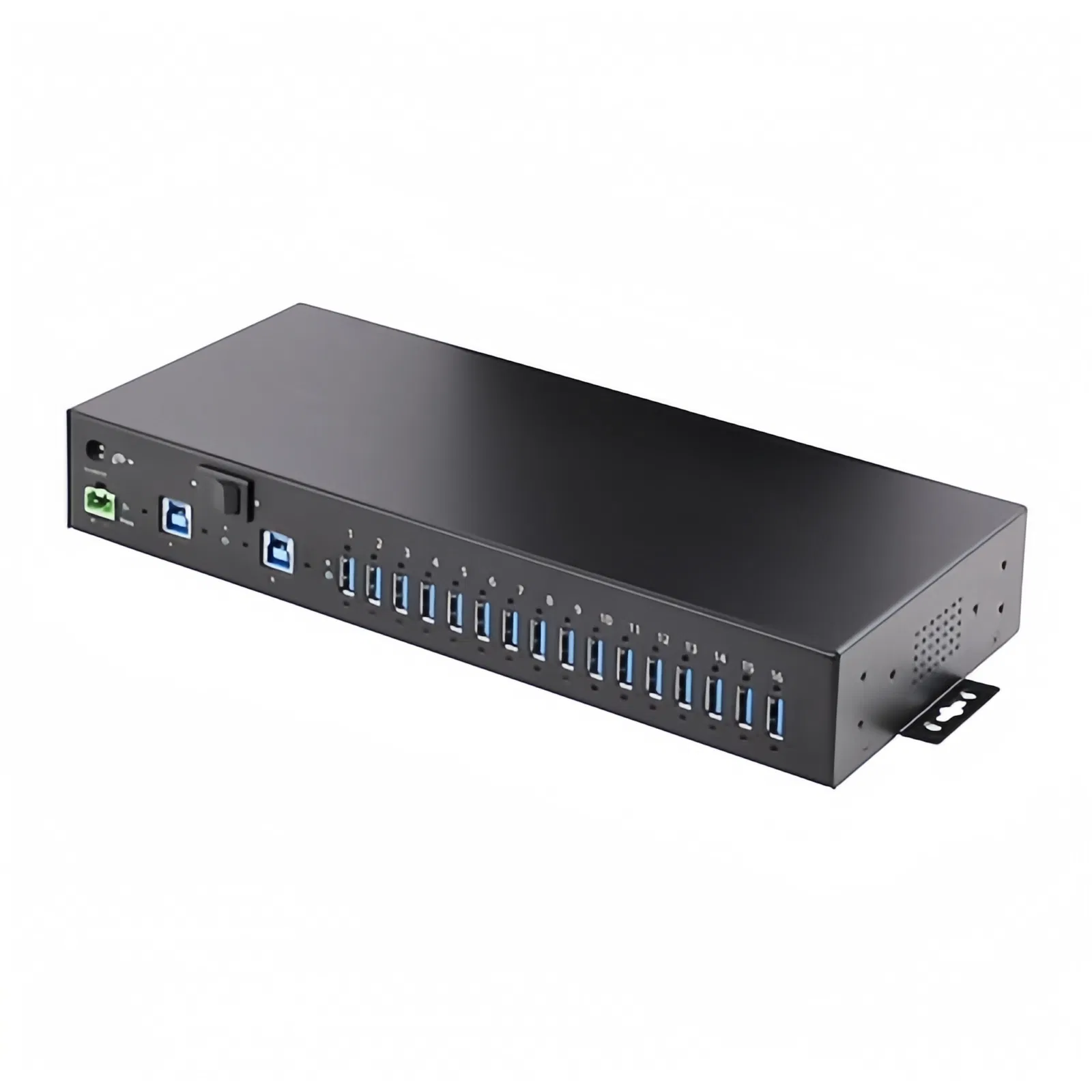

The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports. The rugged all-metal construction is suitable for use in industrial rackmount applications. Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air / 8kV Contact discharges. The hub features a 2-port host switch, enabling users to switch between two host devices.

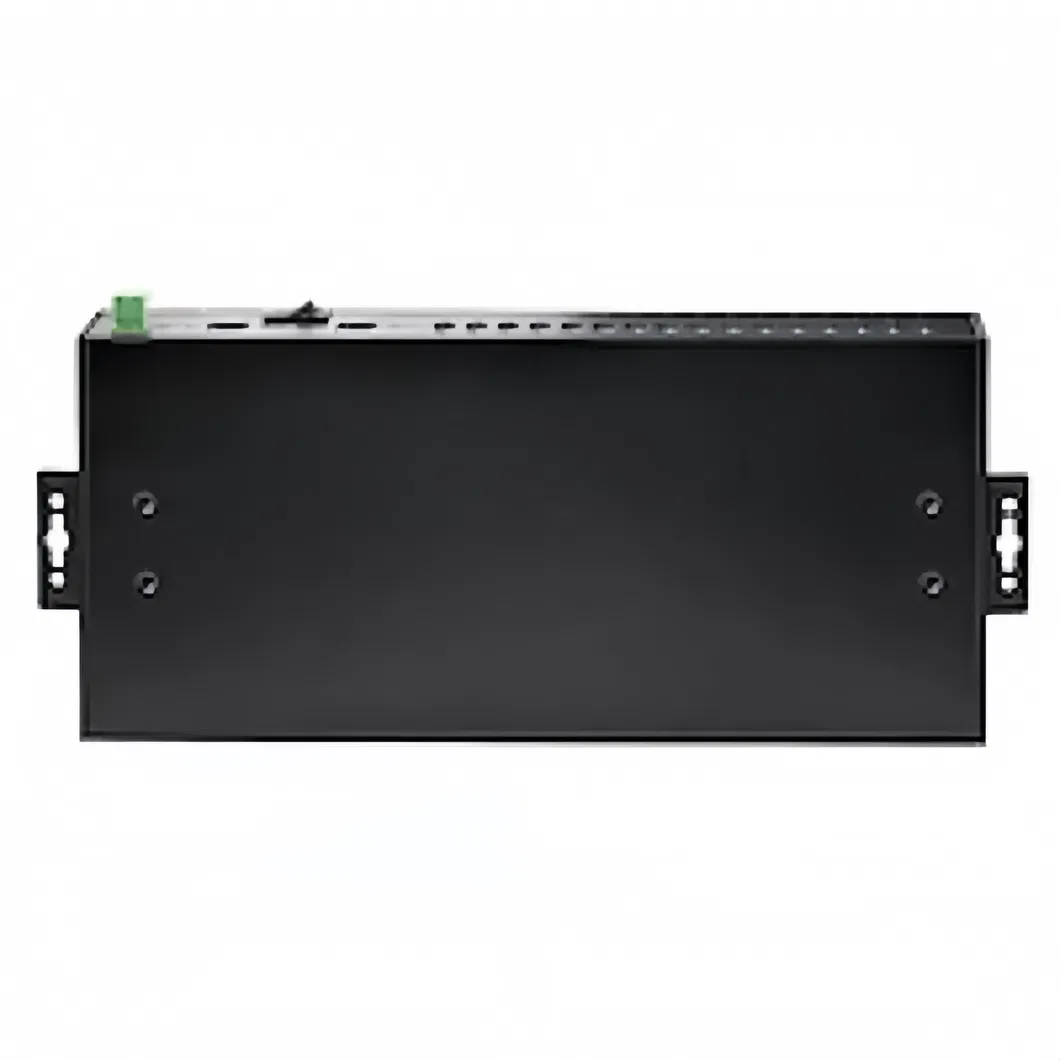

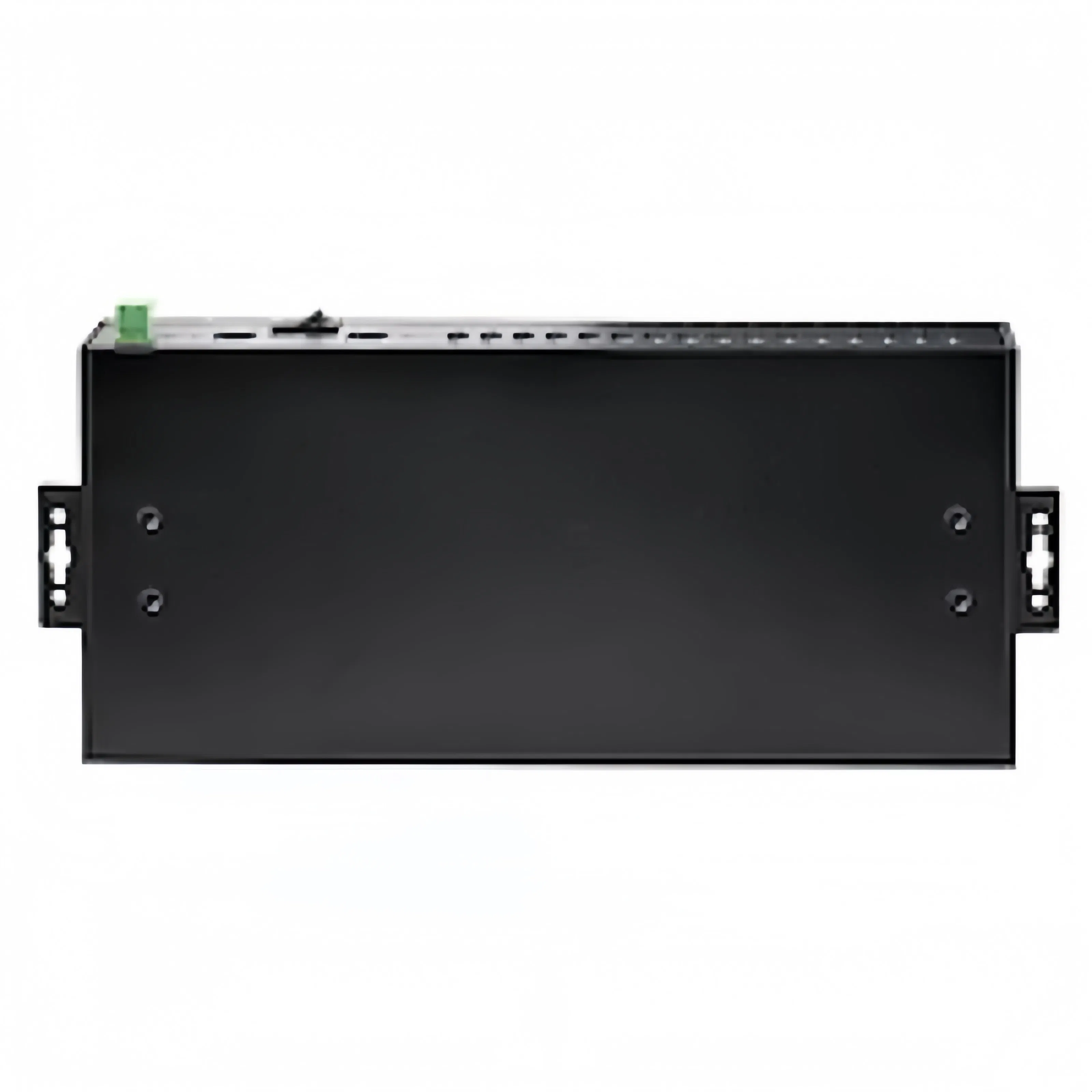

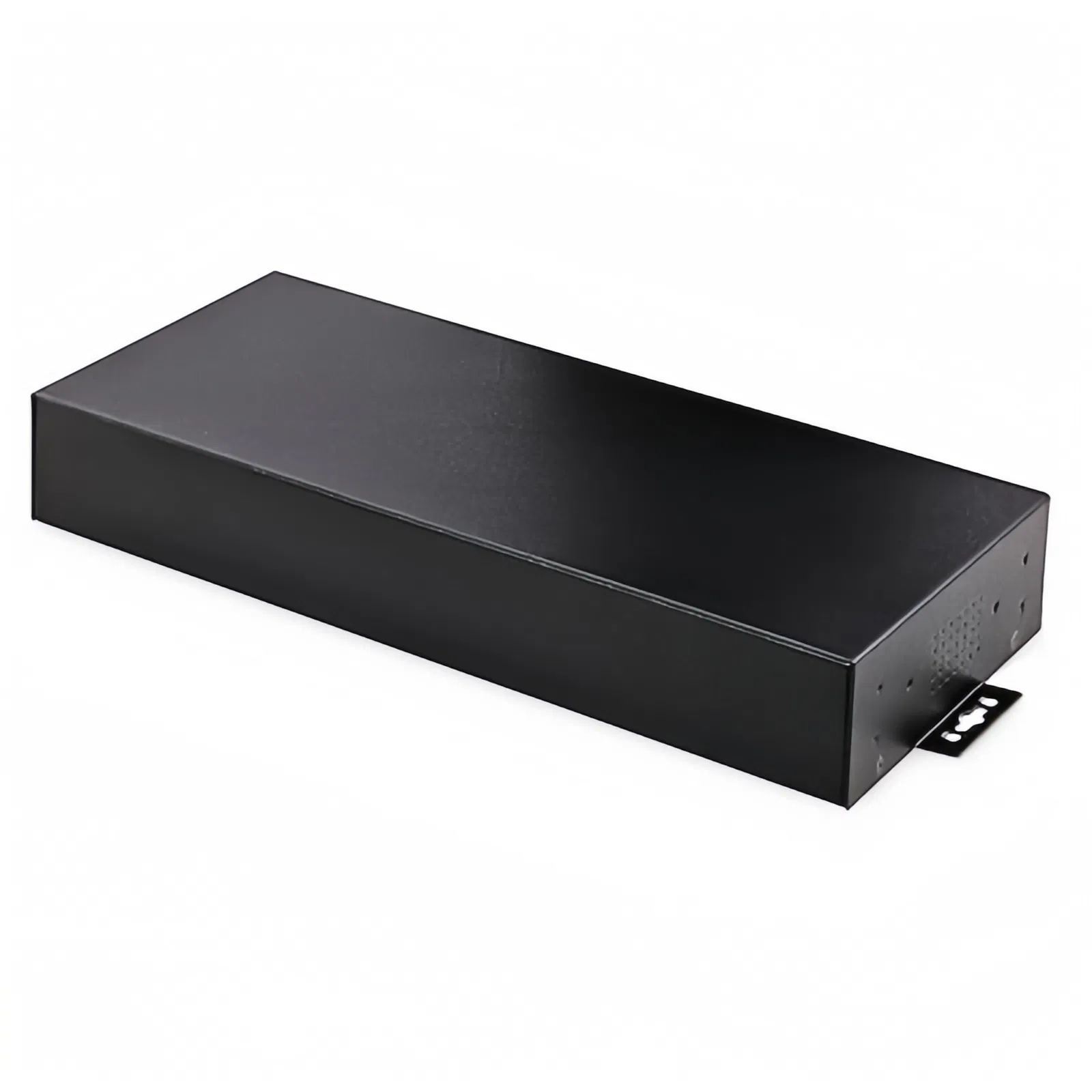

This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that protects against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity.

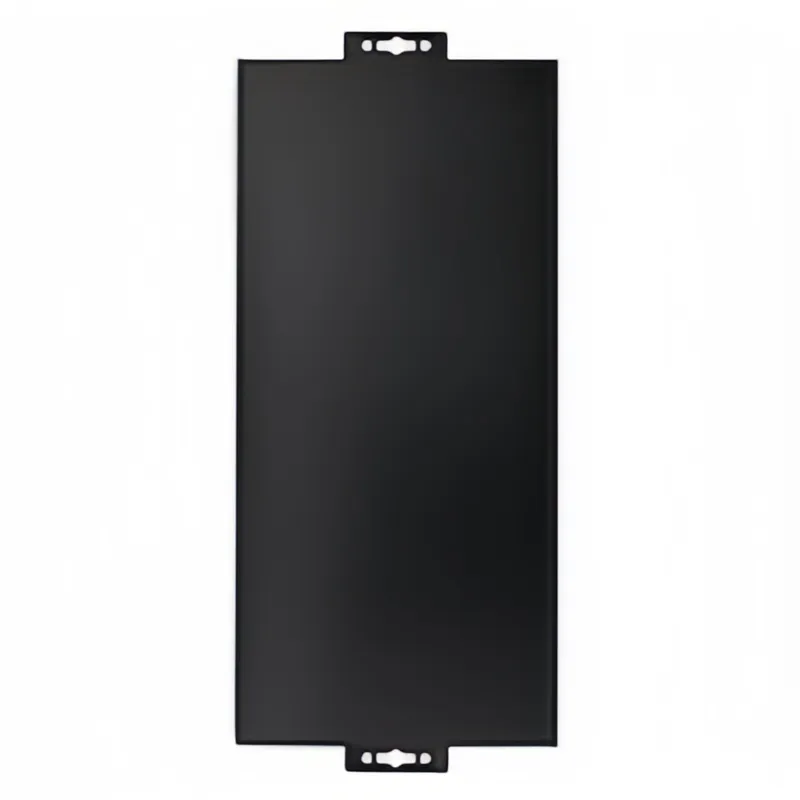

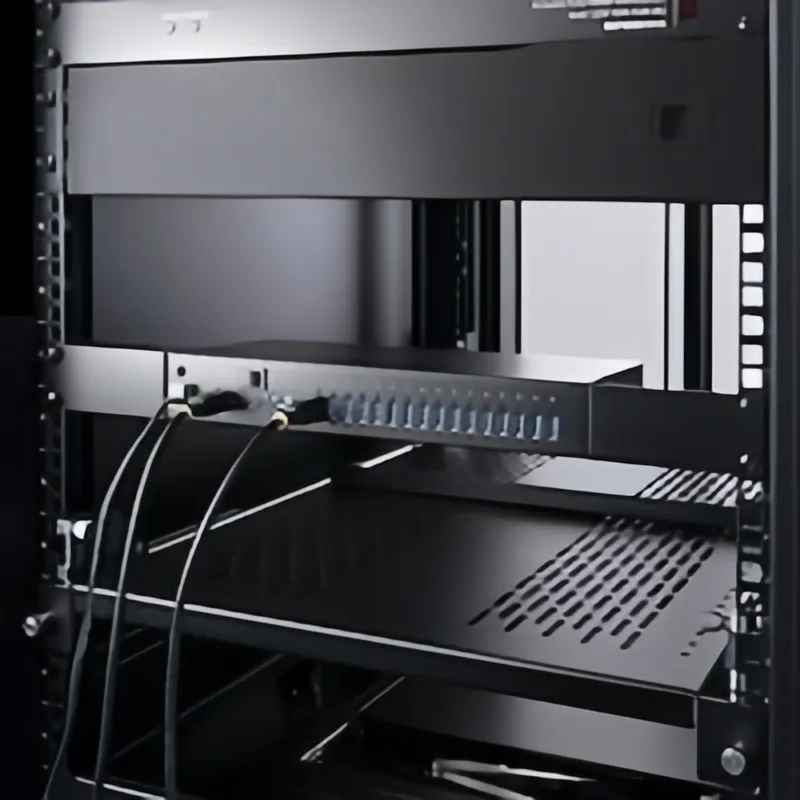

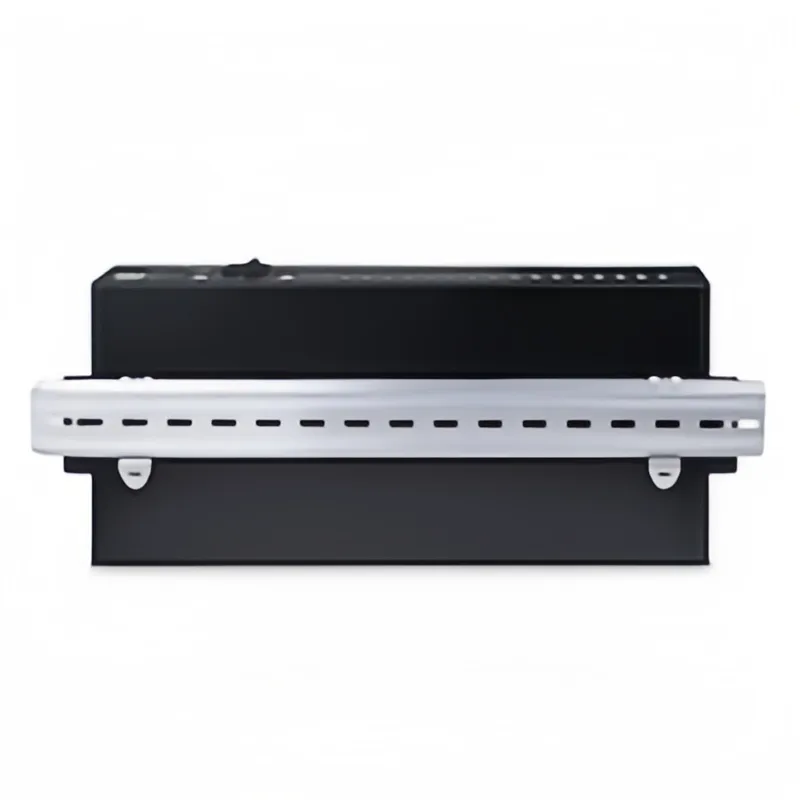

The 16-Port USB hub can be attached to a surface (atop/underneath a desk or wall mounted), rack mounted, or DIN-rail mounted. The 19" rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks for data centers and server rooms. It also includes hardware for DIN-rail (Top Hat/TH) mounting in electrical enclosures.

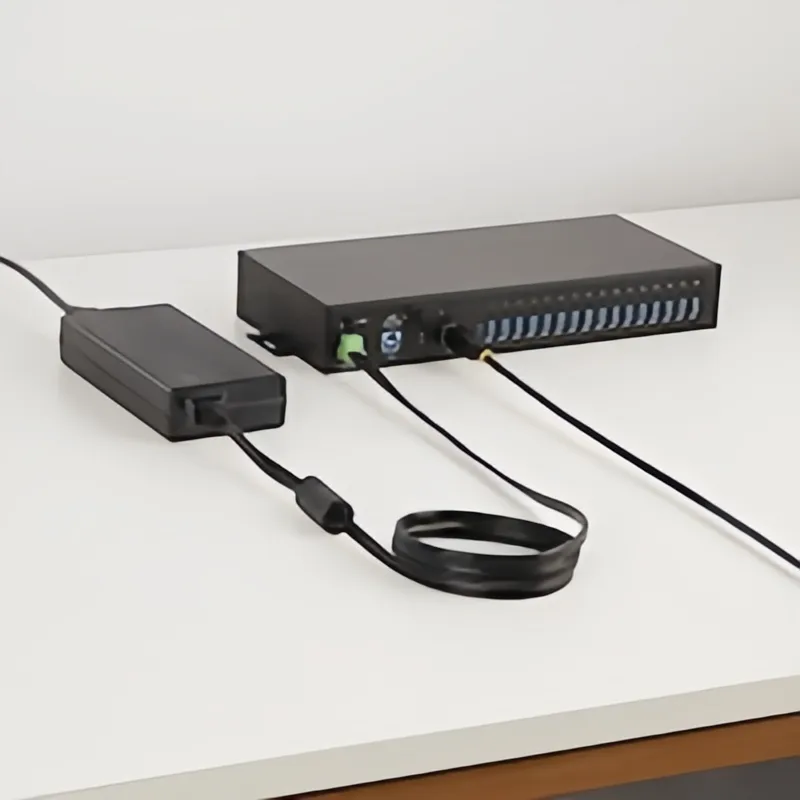

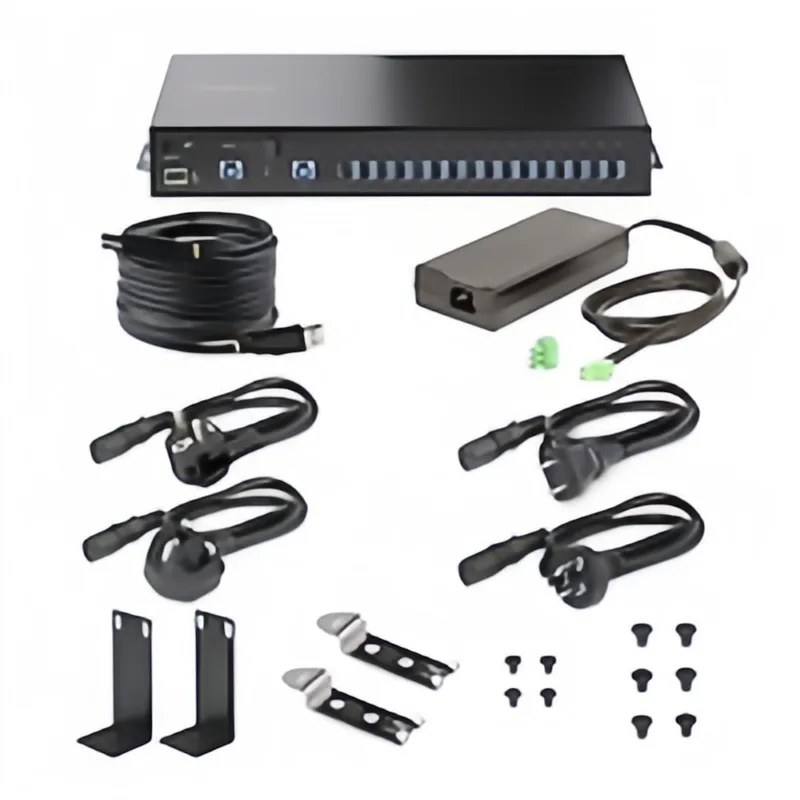

Includes a 160W power adapter connecting to the 2-wire terminal block. It supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. For optional power redundancy, the hub features a secondary barrel-power input (12-to-24-volt range), ideal for mission-critical applications.
