Basic Information
Model NO.
4-port usb 2.0 hub - black
Network Management
Customziation
Transfer Rate
Customziation
Compatible Network
Customziation
Signal Processing
Intelligent HUB
Industrial Type
16-Port Industrial
Compatibility A
USB 3.0 Hub USB
Compatibility B
Hub USB Hub 3.0
Compatibility C
16 Port USB 3.1 Hubs
Transport Package
Factory Standard
Specification
Customization
Product Description
Custom 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection. This high-performance hub is designed for reliability in demanding environments, offering an extended operating temperature range from -40 to 185°F.
◈ Key Features & Specifications
-
✓

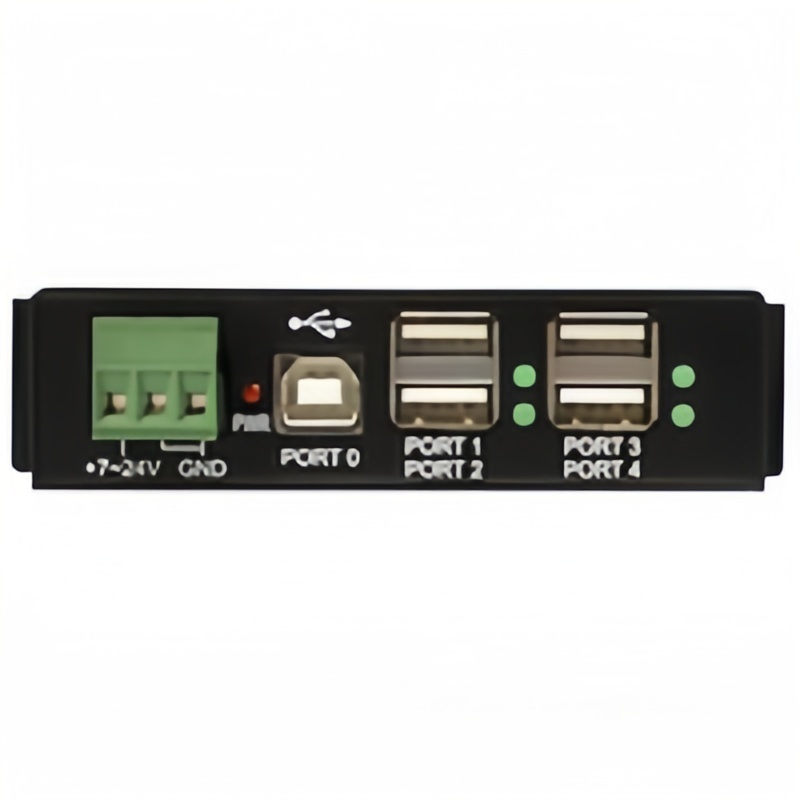

4 PORT USB 2.0 HUB: Expand connectivity by adding 4x USB-A high-speed ports (up to 480Mbps). Includes power LEDs for status identification.
-
✓
EXTENDED TEMPERATURE: Rated for operation between -40°F to 185°F (-40°C to 80°C) with aluminum heat sinks to protect against temperature spikes.
-
✓
ESD & SURGE PROTECTION: Features 15kV Air and 8kV Contact electrostatic protection & 350W surge protection for harsh industrial environments.
-
✓

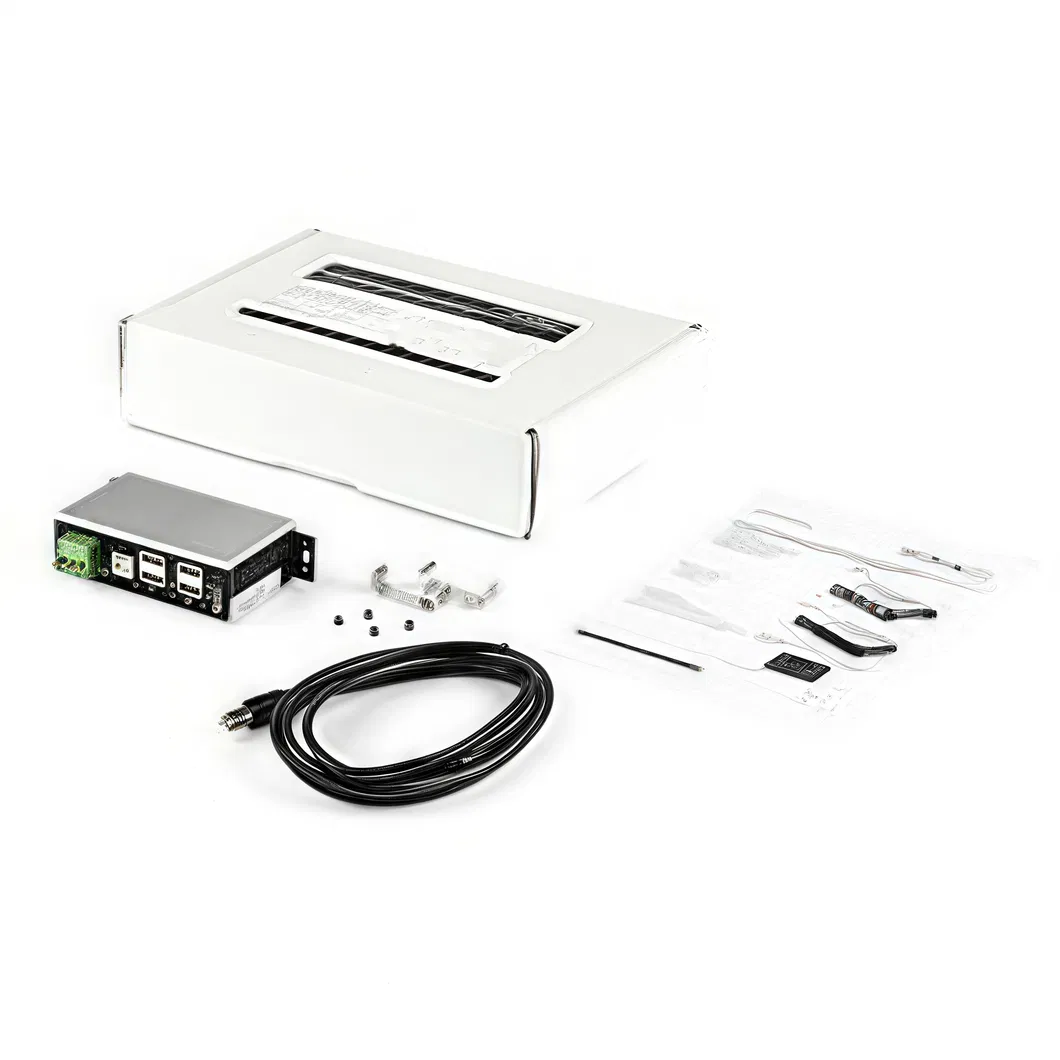

INSTALLATION FLEXIBILITY: Ear mount and DIN rail mountable. Includes terminal block power connector and a 6.6' (2m) USB host cable. Supports 7 to 48V DC input.
-
✓
WIDE COMPATIBILITY: OS independent; supports Windows, macOS, Linux, iPadOS, Chrome OS, and Android. Supports Multi Transaction Translator (MTT).

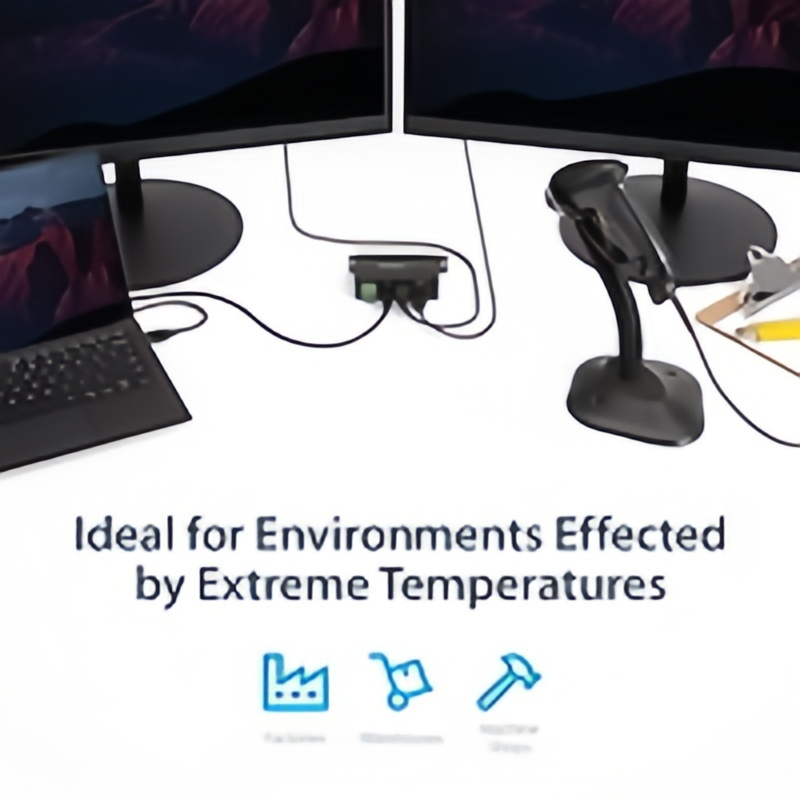

◈ Built for Harsh Environments

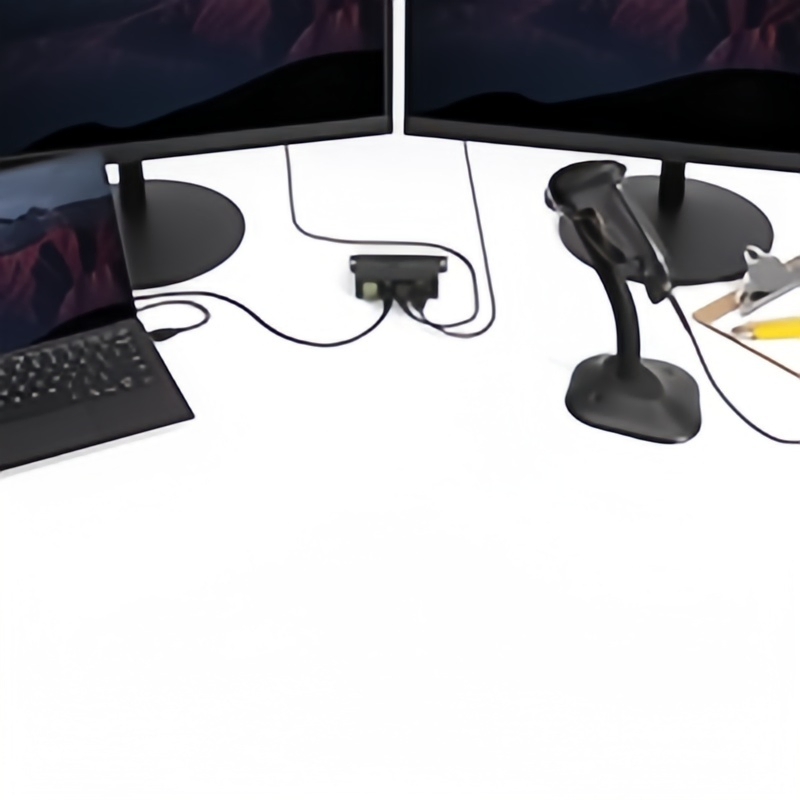

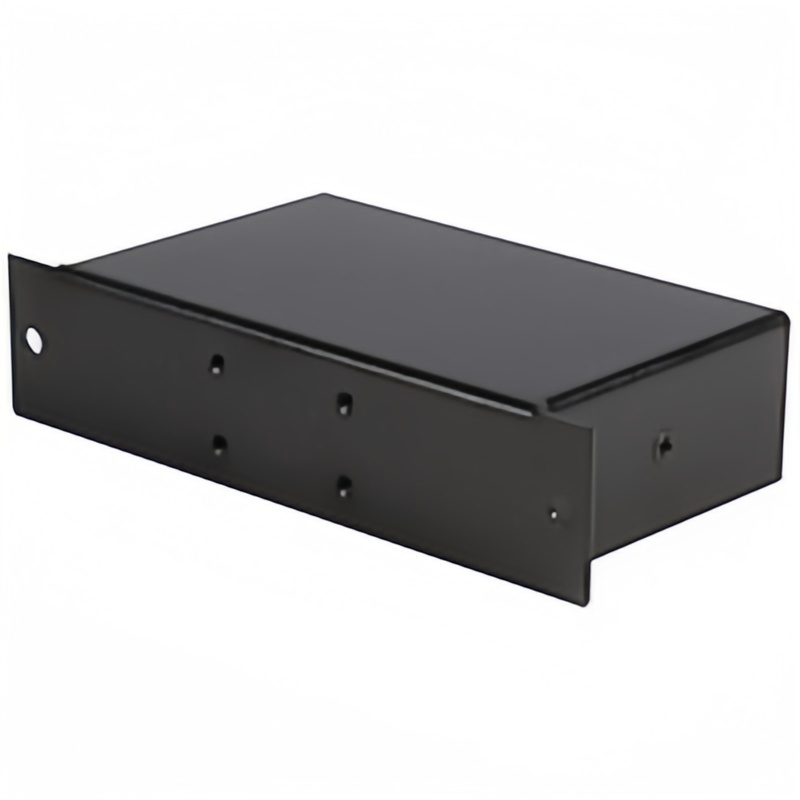

This industrial USB 2.0 hub provides the scalability required for product and repair labs, factories, conference rooms, or rugged office workstations. The heavy-duty metal housing ensures durability where standard hubs fail.
With its wide-range 7-48V DC terminal block input, you have the flexibility to power the hub according to your specific power capabilities. The ESD protection on each port prevents damage to your expensive connected devices.
Frequently Asked Questions
Q: What is the operating temperature range for this hub?
A: This rugged hub is designed for extreme conditions, operating reliably between -40°F to 185°F (-40°C to 80°C).
Q: How can I mount the USB hub in an industrial setting?

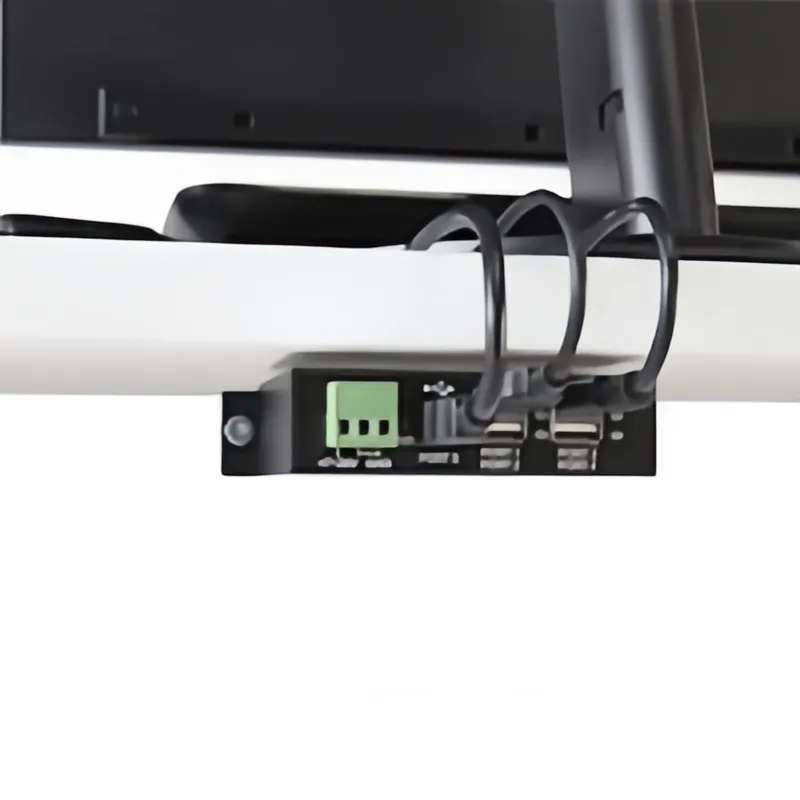

A: It offers multiple mounting options including DIN rail mounting (bracket included), wall mount, desk mount, or ear mounting.
Q: What kind of power input does the hub require?
A: The hub supports a flexible wide-range DC input from 7V to 48V via a terminal block connector.
Q: Does this hub protect against static electricity?
A: Yes, it features 15kV Air and 8kV Contact electrostatic (ESD) protection and 350W surge protection to keep your equipment safe.
Q: Is it compatible with Linux or macOS?
A: Yes, it is completely OS independent and compatible with Windows, macOS, Linux, iPadOS, Chrome OS, and Android.
Q: Does the hub support USB 1.1 devices?
A: Yes, it works with USB 1.1 devices and includes Multi Transaction Translator (MTT) support for mixed-speed peripherals.
