Custom 4-Port USB C Hub 10gbps - Metal Industrial USB Type-C Hub W/ 3xusb-a & 1xusb-C

Customization: Available
Interface Type: USB
Structure Function: HUB No Manage

Product Description

Basic Specifications
Model NO.
industrial grade usb type c hub
Bandwidth
Customziation
Network Management
Customziation
Ports
Customziation
Transfer Rate
Customziation
Compatible Network
Customziation
Size
Rack-Mounted
LAN
Customziation
Signal Processing
Intelligent HUB
Type A
16-Port Industrial
Type B
USB 3.0 Hub USB
Type C
Hub USB Hub 3.0
Type D
16 Port USB 3.1 Hubs
Transport Package
Factory Satandard
Specification
Customization
Origin
China
Product Overview

4-Port USB C Hub 10Gbps - Metal Industrial USB Type-C Hub

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

  • INDUSTRIAL 4 PORT USB-C HUB: Expand the connectivity of a USB-C or USB-A computer by adding 3x USB-A & 1x USB-C ports; SuperSpeed USB 3.2 Gen 2 (10Gbps) hub.
  • ESD PROTECTION: Featuring 15kV Air and 8kV Contact electrostatic discharge protection & 350W surge protection for harsh environments.
  • POWER & CHARGE: Self powered USB C hub w/ 36W power adapter & terminal block connector (7-24V DC inputs); Charging w/BC 1.2 for 30W total.
  • INSTALLATION FLEXIBILITY: Mountable USB Type-C Hub with built-in ear mounting allows for wall/surface mounting; screw-lock connectors prevent accidental cable release.

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.

Expands Connectivity for Industrial Applications

With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps).

Powers and Charges Your Connected Devices

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power.

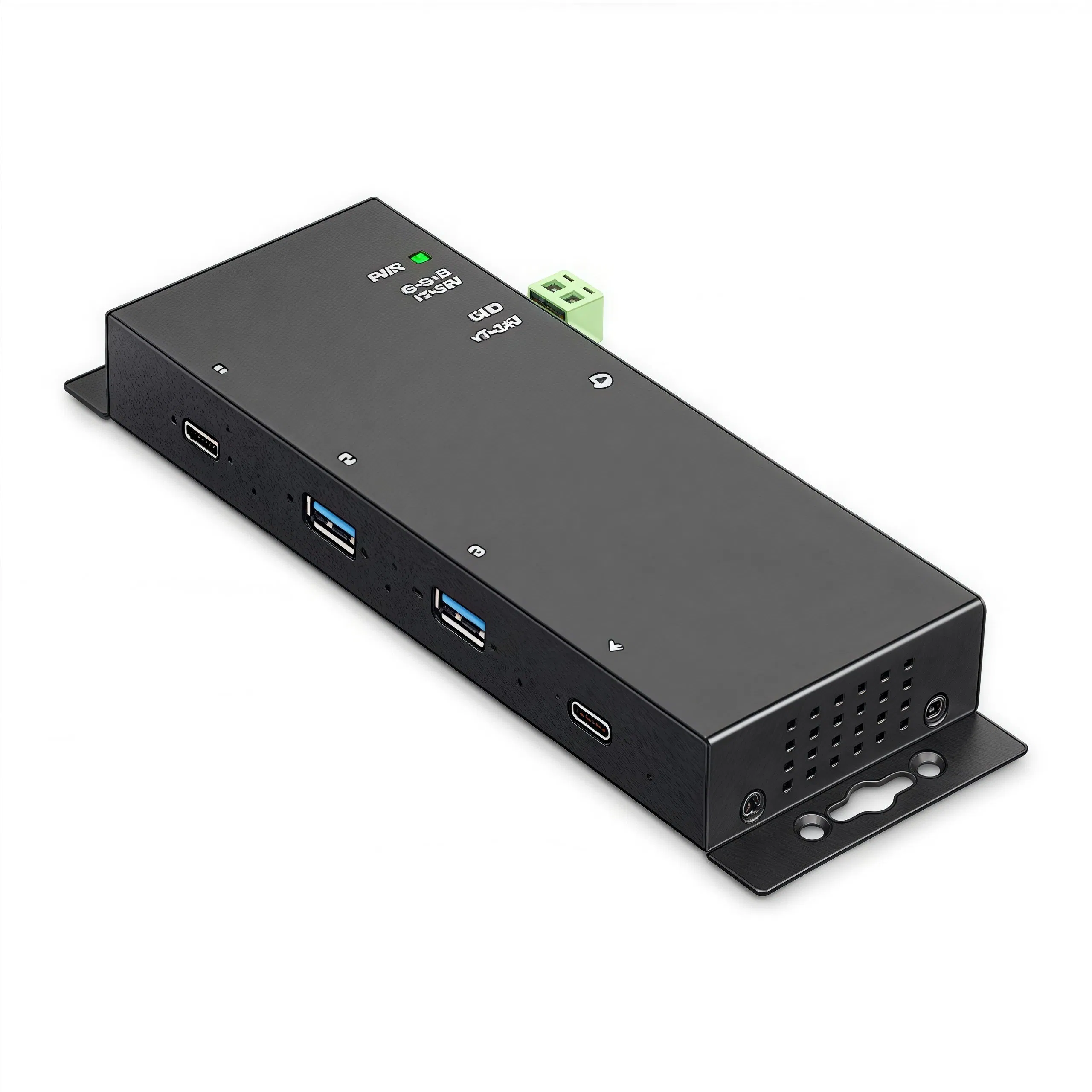

Industrial USB Hub View 1

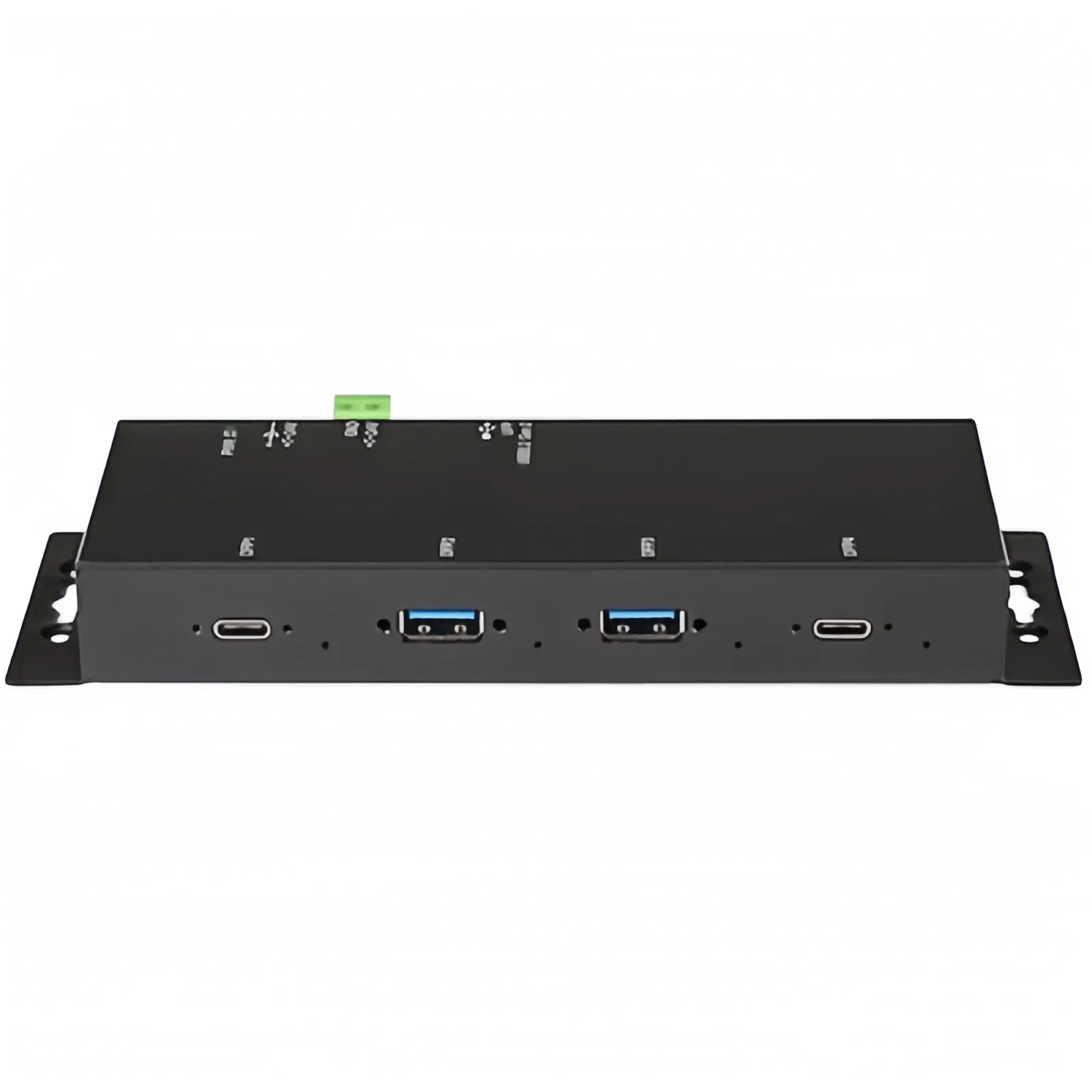

Industrial USB Hub View 2

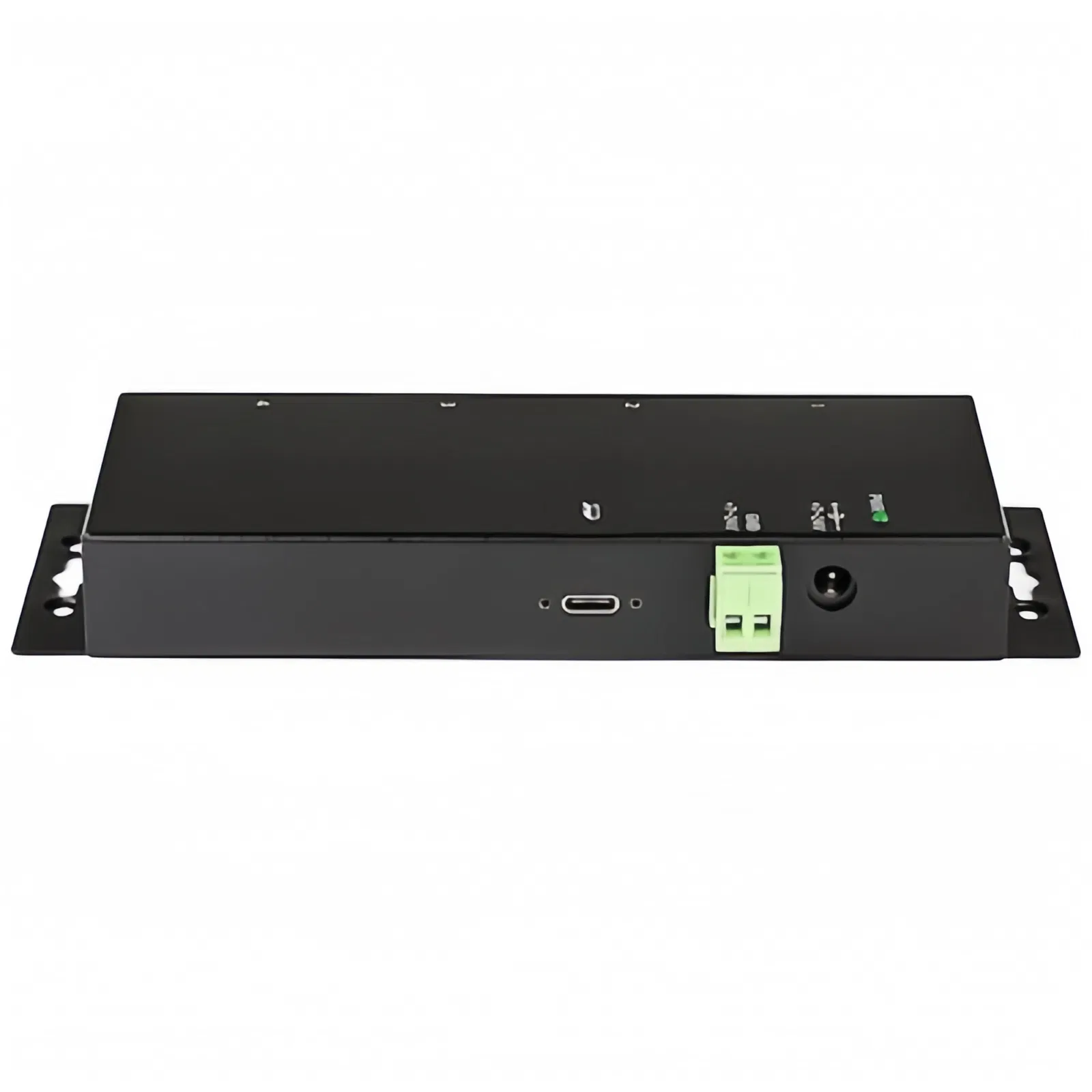

Industrial USB Hub View 3

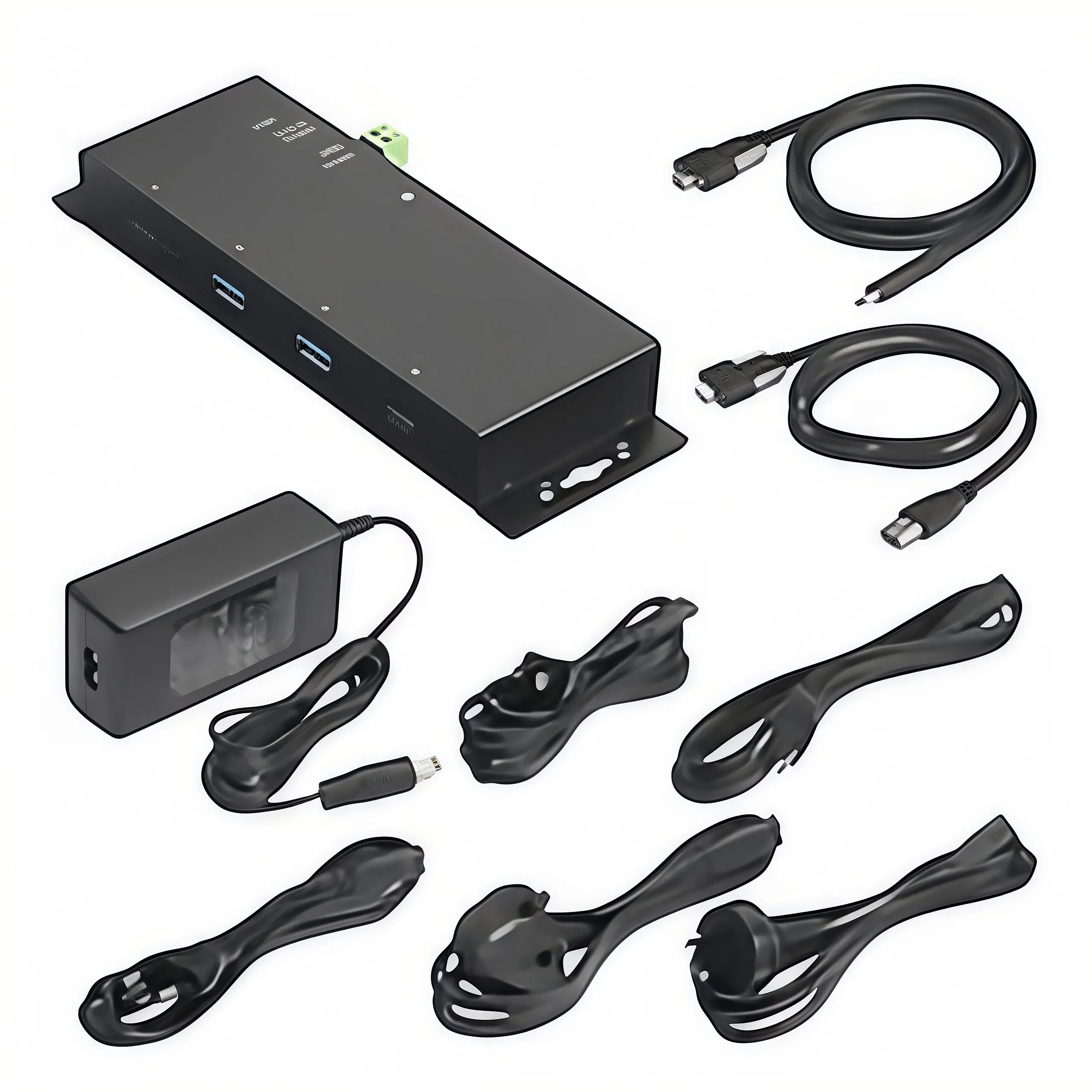

Industrial USB Hub View 4
Industrial USB Hub View 5
Frequently Asked Questions
1. What is the maximum data transfer speed of this industrial hub?
This hub supports SuperSpeed USB 3.2 Gen 2, providing data transfer rates up to 10Gbps. It is also backward compatible with USB 3.0 and USB 2.0 devices.
2. Does this hub provide protection against electrical damage?
Yes, it features integrated 15kV Air and 8kV Contact ESD (Electrostatic Discharge) protection and 350W surge protection, making it ideal for harsh industrial environments.
3. Can I mount this hub on a wall or a desk?
Absolutely. The hub comes with built-in ear mounting hardware, allowing for easy and secure installation on walls, under desks, or on other flat surfaces.
4. What are the power supply options for this device?
It can be powered via the included 36W AC/DC power adapter or through the built-in terminal block connector which supports a wide range of 7-24V DC input.

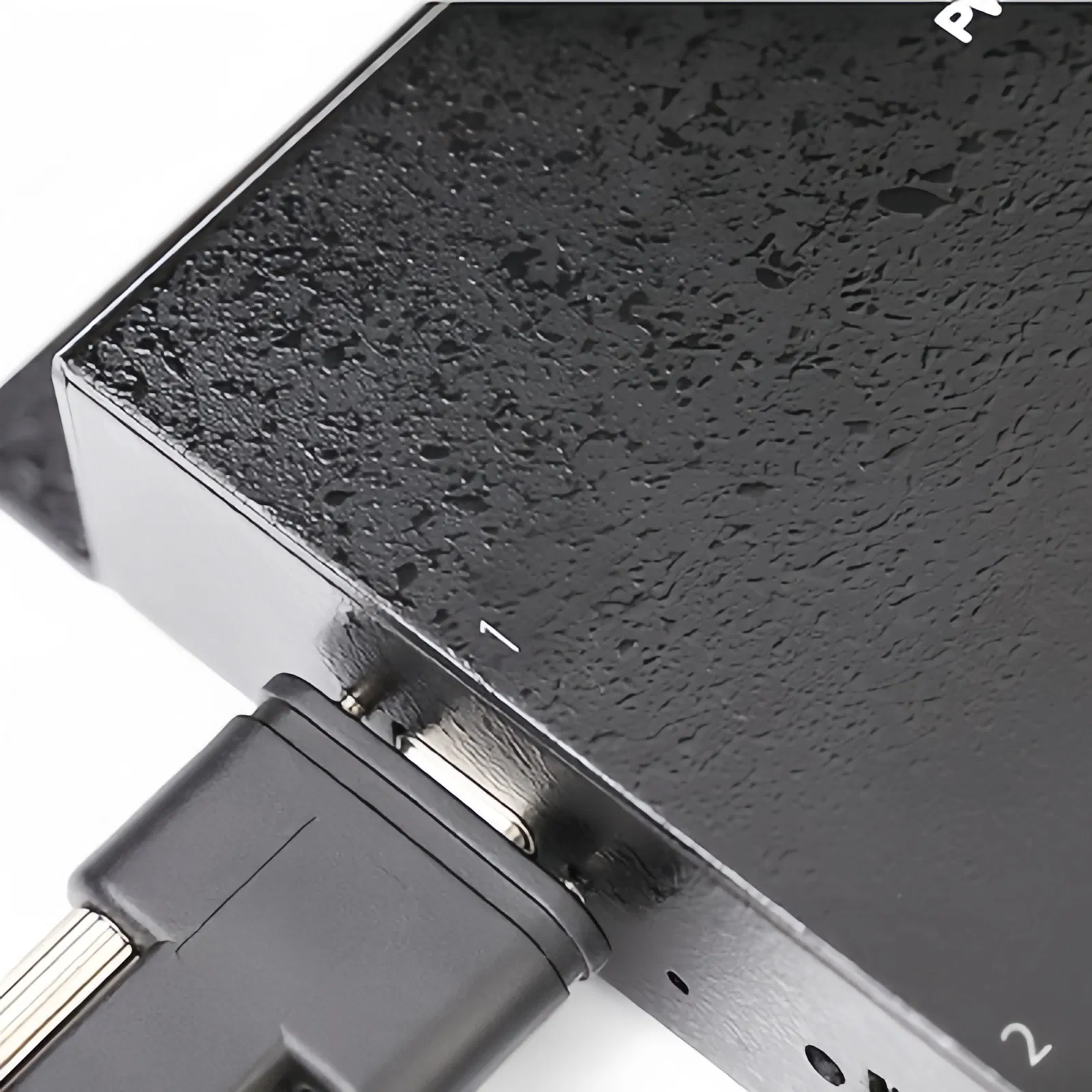

5. How do the screw-locking ports benefit industrial users?
The screw-lock connectors on all USB-A and USB-C ports ensure that cables remain securely connected even in environments prone to vibration, preventing accidental disconnects.
6. Is it compatible with both USB-C and USB-A computers?
Yes, the package includes 3.3 ft (1m) host cables for both USB-C and USB-A connections, ensuring broad compatibility with various host systems.
