Technical Specifications
Model NO.
metal industrial usb to usb c
Network Management
Customziation
Transfer Rate
Customziation
Compatible Network
Customziation
Signal Processing
Intelligent HUB
Performance
16 Port USB 3.1 Hubs
Specification
Customization
Product Overview
Custom 4 Port USB C Hub 10Gbps

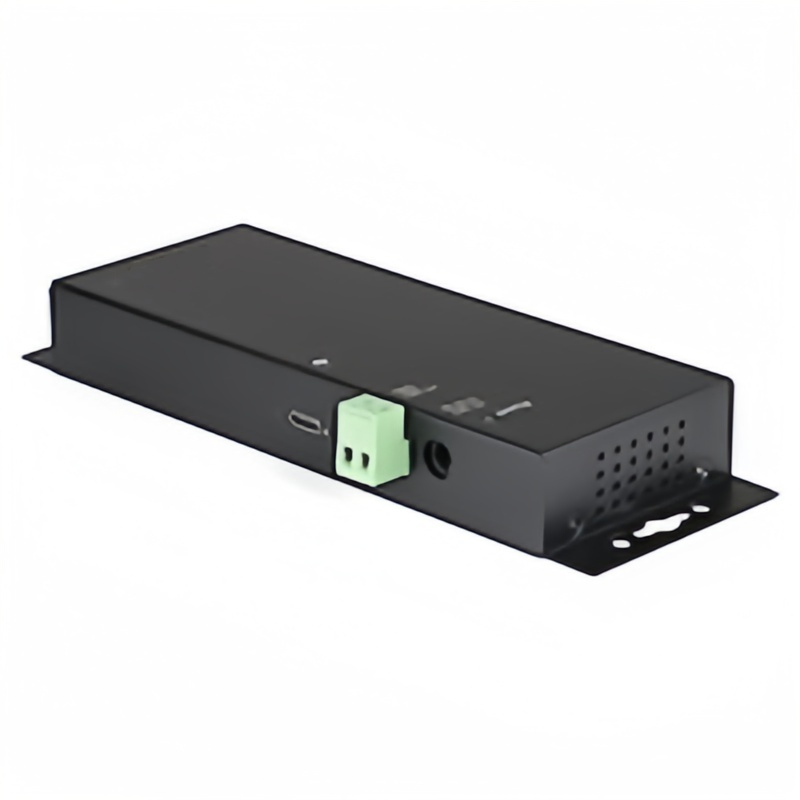

Metal Industrial USB-C Hub - 2x USB-C & 2x USB-A - ESD Surge Protection - USB-C or USB-A Host - Self-Powered Mountable USB 3.2 Gen 2 Type-C Hub.
Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports
- INDUSTRIAL 4 PORT USB-C HUB: Expand the connectivity of a USB-C or USB-A computer by adding 2x USB Type-A & 2x USB Type-C ports; SuperSpeed USB 3.2 Gen 2 (10Gbps) hub; 3.3 ft (1m) USB-C & USB-A host cables included (w/ screw-lock)
- ESD SURGE PROTECTION: Featuring 15kV Air and 8kV Contact electrostatic discharge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments
- POWER & CHARGE: Self powered USB C hub w/ 36W power adapter & terminal block connector (7-24V DC inputs); Charging w/BC 1.2 for 30W total on all ports | Provides 12W (2.4A) on all ports up to a total 30W draw

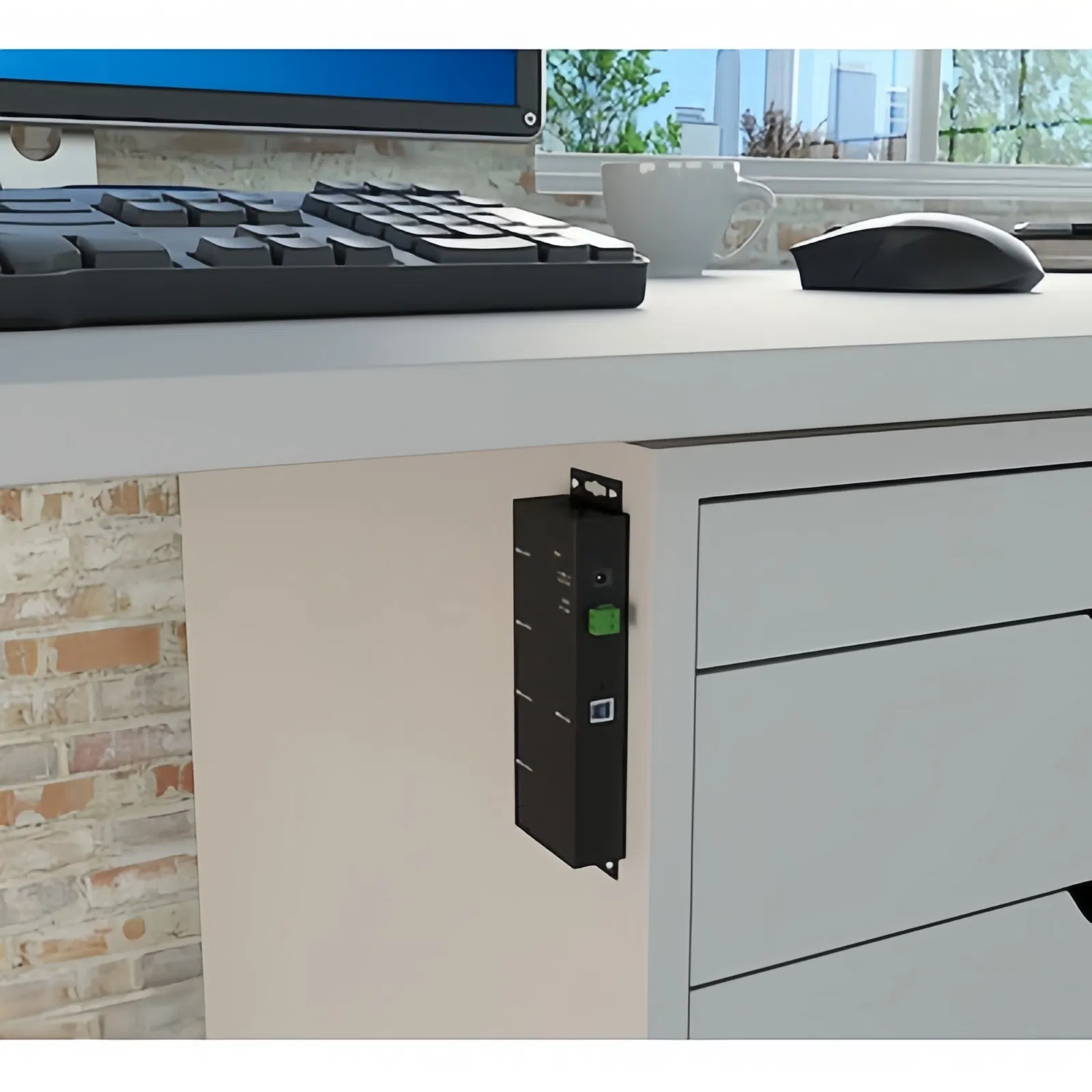

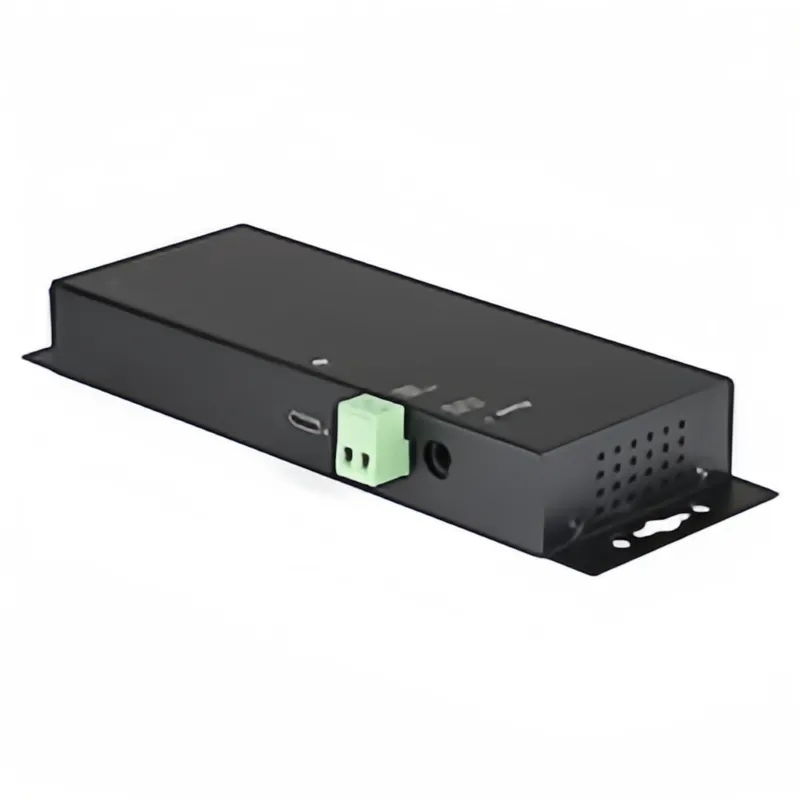

- INSTALLATION FLEXIBILITY: Mountable USB Type-C Hub with built-in ear mounting allows for wall/surface mounting; All USB-A & USB-C ports on hub feature screw-lock connectors to prevent accidental cable release
Industrial Application Expansion
With this USB-C hub you can connect two USB-A devices, and two USB-C devices, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).
Powers and Charges Your Connected Devices
The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.
Frequently Asked Questions
Q1: What is the maximum data transfer speed of this hub?
A: This industrial hub supports SuperSpeed USB 3.2 Gen 2, providing data transfer speeds up to 10Gbps.
Q2: Does it support charging for connected devices?
A: Yes, it supports BC 1.2 charging, providing up to 12W (2.4A) per port with a total power budget of 30W across all ports.
Q3: How is the hub powered in industrial environments?
A: It can be powered via the included 36W AC adapter or through a built-in terminal block connector that supports 7-24V DC input.
Q4: What kind of protection does the metal housing provide?
A: The rugged metal housing includes ESD surge protection (15kV Air and 8kV Contact) to protect equipment in harsh environments.
Q5: Can I secure the cables to prevent accidental disconnection?
A: Yes, all USB-A and USB-C ports on the hub feature screw-lock connectors to ensure cables stay securely attached.
Q6: Is this hub compatible with both USB-A and USB-C host computers?
A: Yes, it includes both USB-C and USB-A host cables, making it compatible with a wide range of computer systems.
