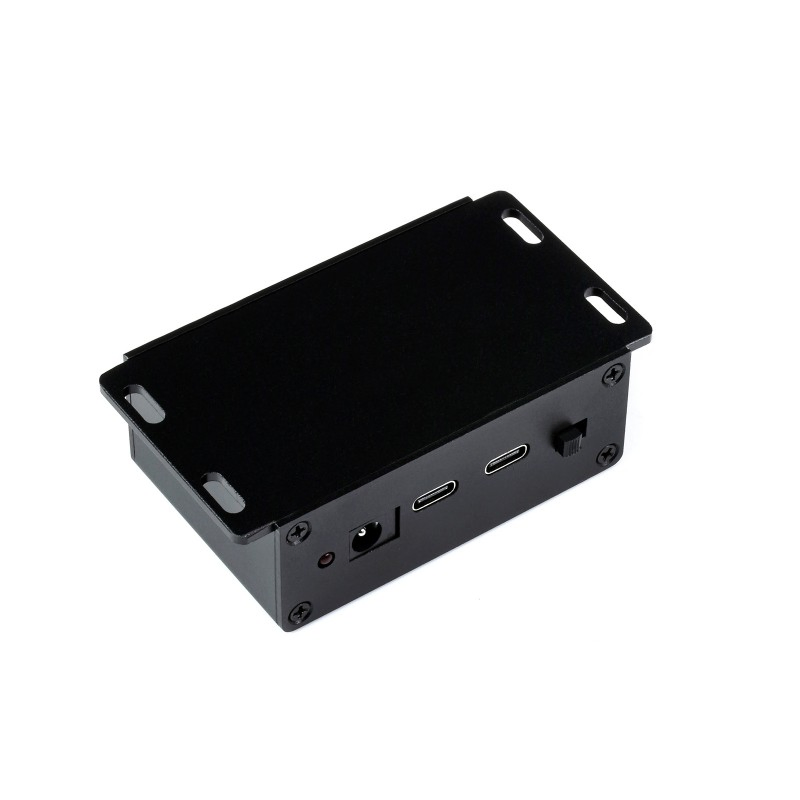

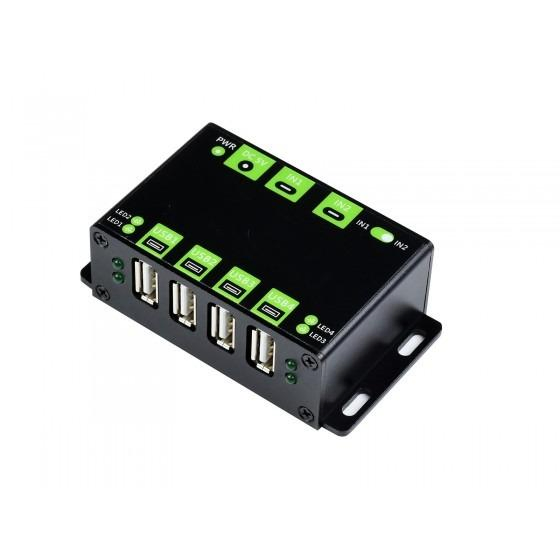

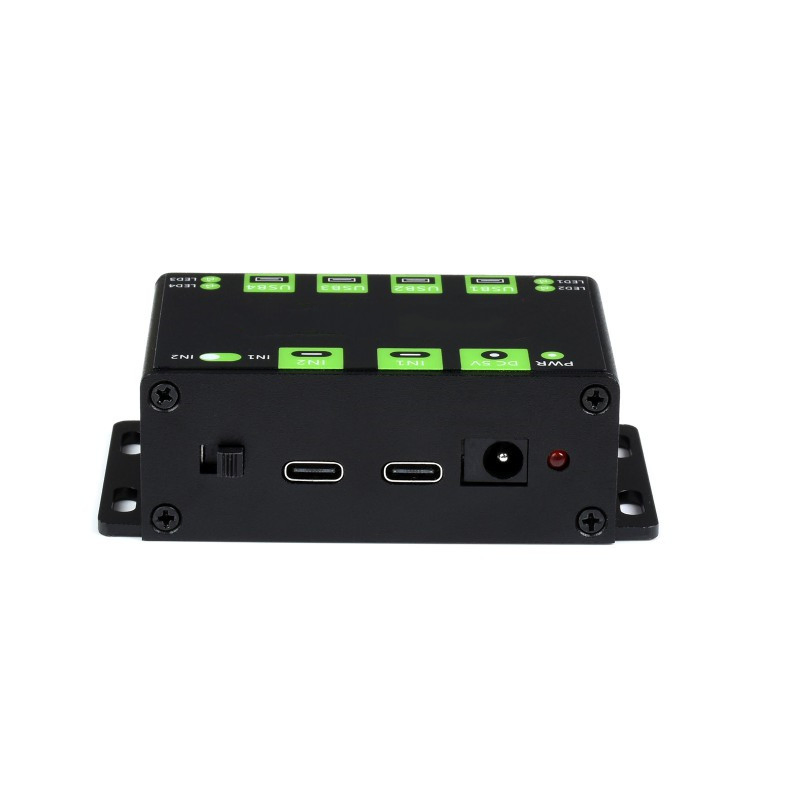

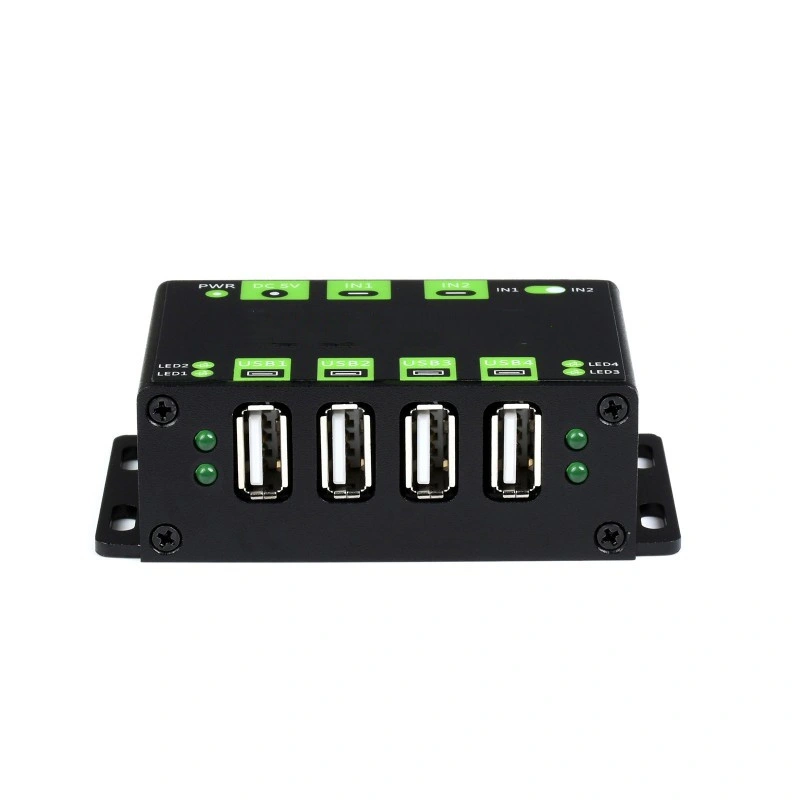

Industrial Grade USB Hub, Extending 4X USB 2.0 Ports, Switchable Dual Hosts

Customization: Available
Interface Type: USB
Structure Function: HUB No Manage

Product Description

Basic Information
Model NO. HUB-C 2in4out
Network Management Without Network Management
Ports 2-4
Transfer Rate 480Mbps
Compatible Network Gigabit Ethernet
Size Rack-Mounted
LAN Port Switching HUB
Signal Processing Active HUB
Specification customization
Origin China
HS Code 8501510010
Packaging & Delivery
Package Size 13.00cm * 12.00cm * 20.00cm
Package Gross Weight 1.000kg
Product Description
Industrial Grade USB HUB, Extending 4x USB 2.0 Ports, Switchable Dual Hosts

Sharing USB devices for two hosts, free up the crowded desktop

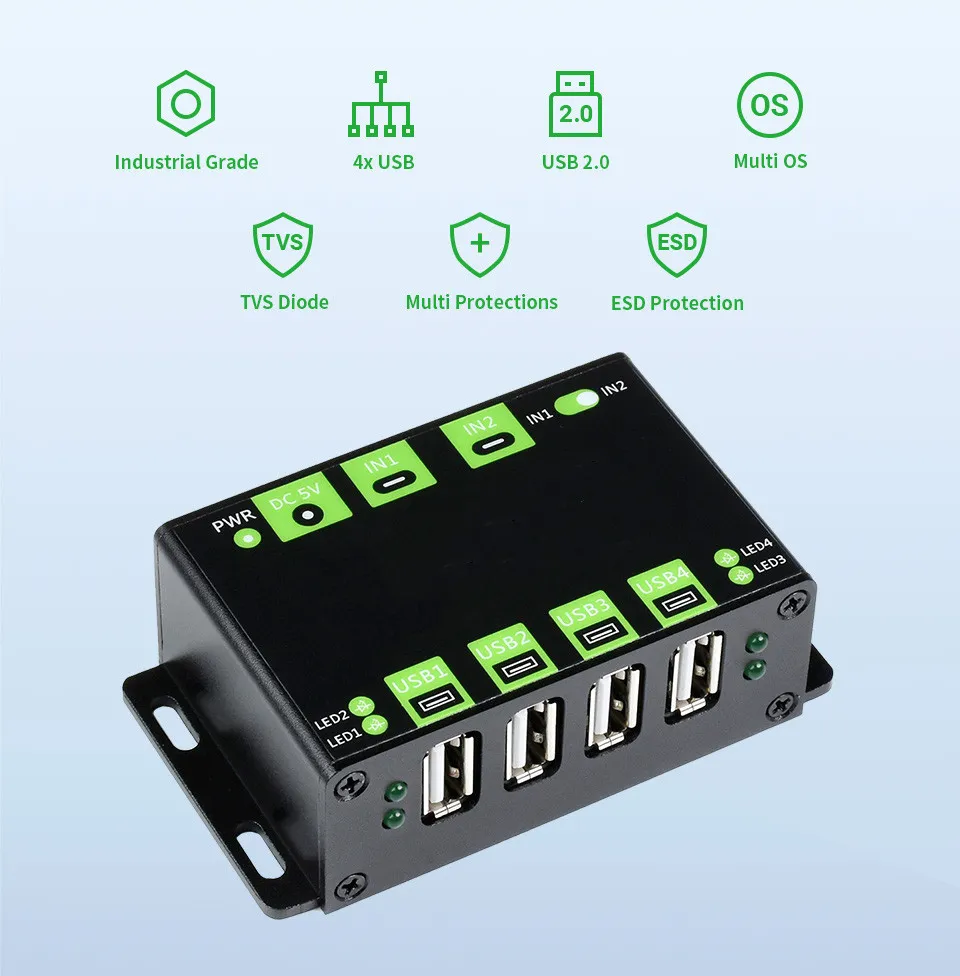

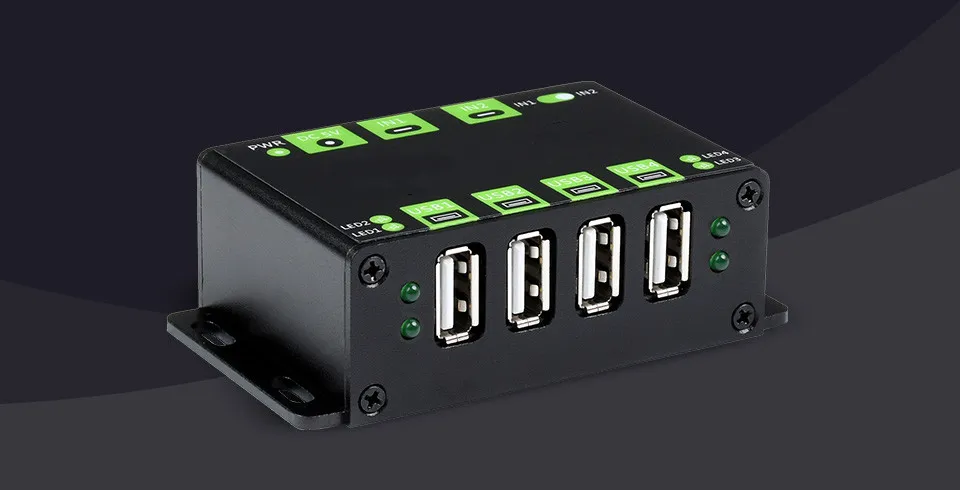

Features At A Glance
  • 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
  • Industrial grade HUB chip, adopting STT technology, allows stable and smooth 4x concurrent USB connections
  • ESD protection for each USB port, preventing electric surge damage and data loss
  • Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
  • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
  • Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Technical Specifications
STANDARD high speed USB 2.0
DATA RATE up to 480Mbps
USB OUTPUT 5V@Imax:1.2A, USB-A connector
USB HUB INPUT 5V, switchable dual USB-C connector (standalone power supply, no crossed power)
EXTERNAL POWER DC 5V, DC jack/USB-C power input
OPERATING ENVIRONMENT -40ºC ~ 85ºC
OS SUPPORT Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

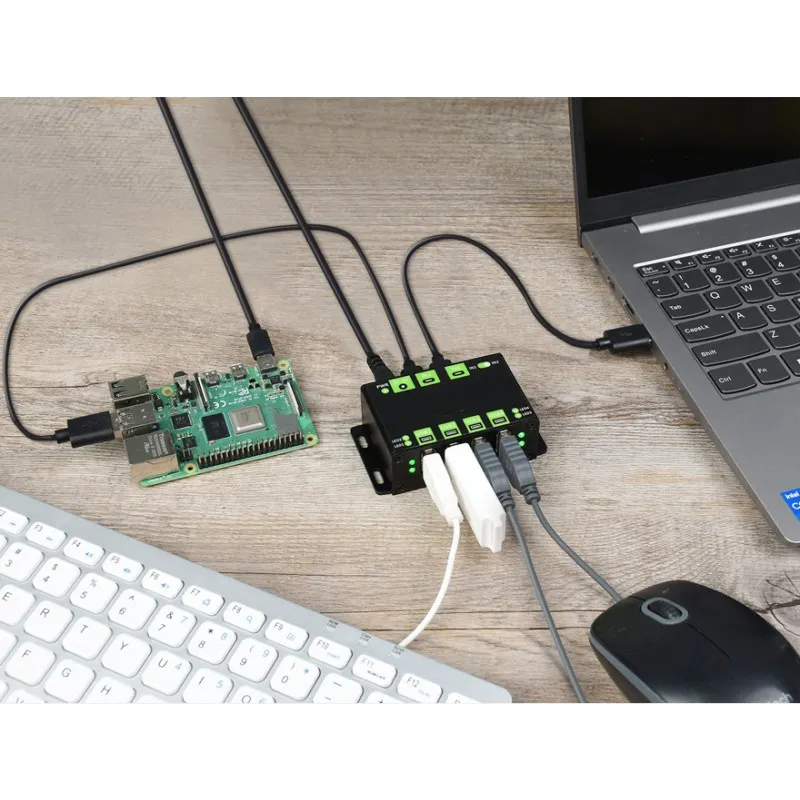

Sharing USB Devices For Two Hosts

Switch the active host by the handy switch at any time, easily control two hosts by the same keyboard and mouse.

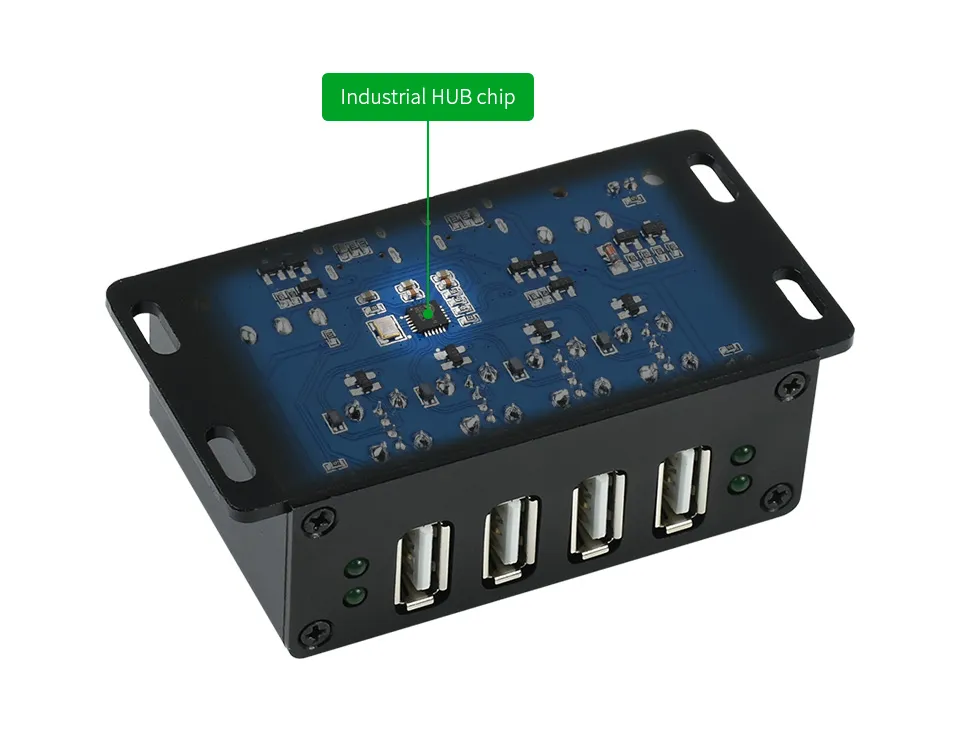

Industrial Grade HUB Chip

STT Technology, 4x Concurrent USB Connections, Stable And Smooth

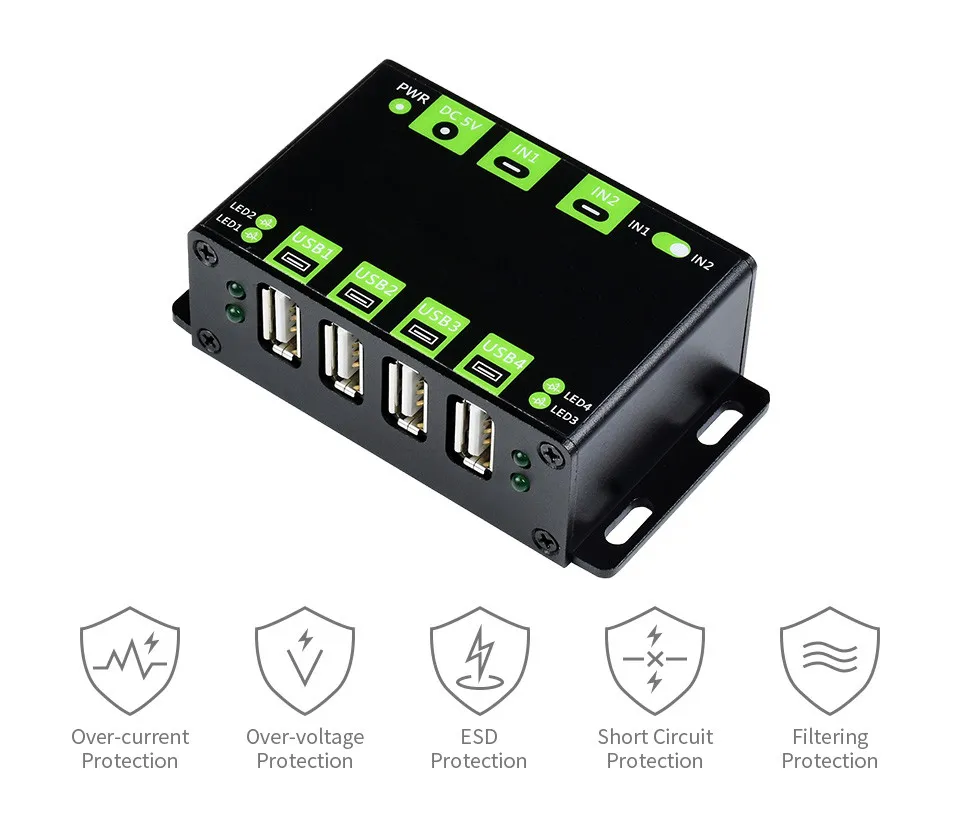

Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, 8KV ESD Protection...

Multiple OS Support, Plug & Play

Compatible With OS Including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...

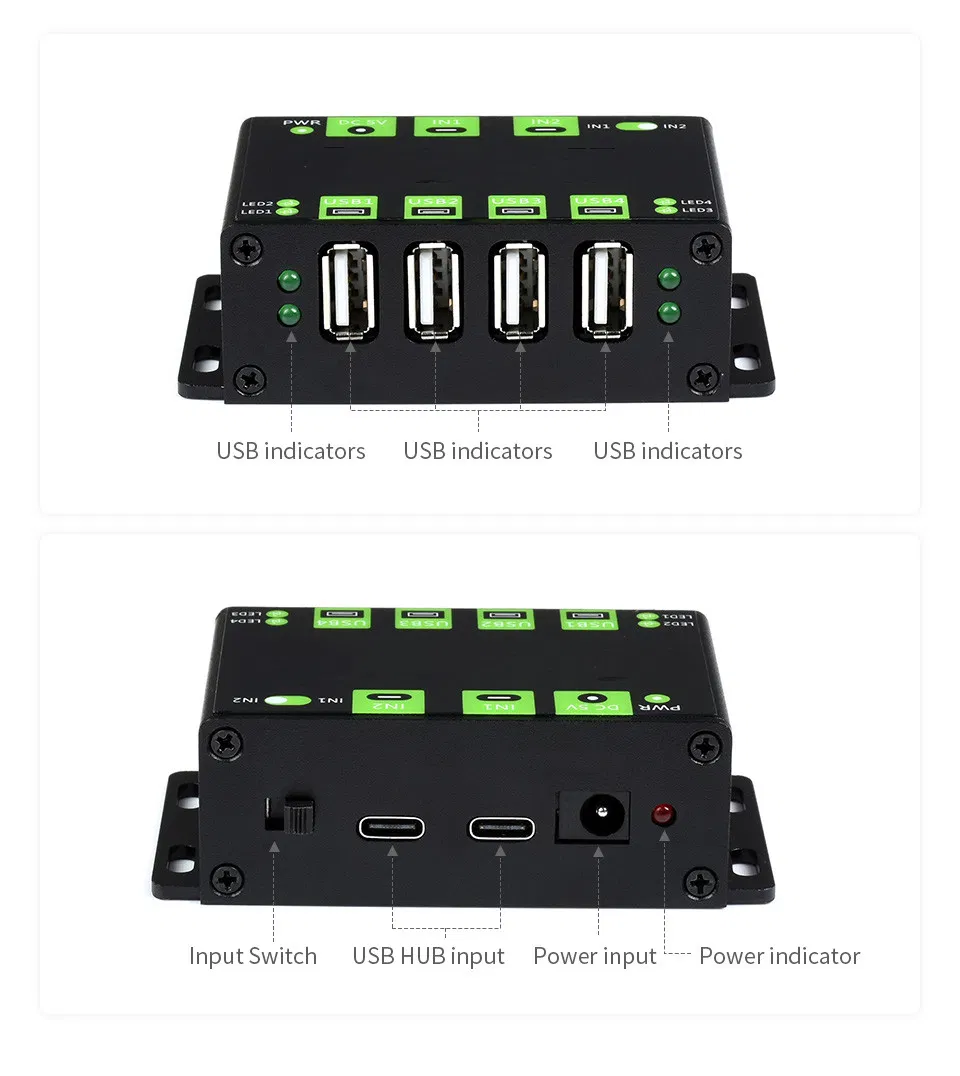

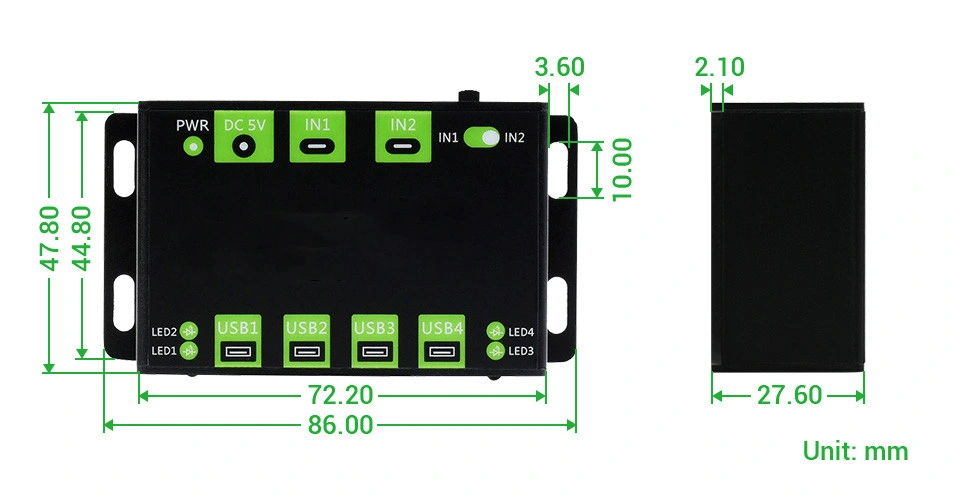

Interface Introduction & Dimensions
Frequently Asked Questions
Q1: Can this USB HUB share devices between two computers? A: Yes, it features switchable dual hosts, allowing you to share the same set of USB devices (like keyboard and mouse) between two different computers or hosts.
Q2: What is the maximum data transfer speed? A: This HUB supports high-speed USB 2.0 with a data transfer rate of up to 480Mbps.
Q3: Does it require an external power supply? A: Yes, it supports an external DC 5V power input via a DC jack or USB-C power connector to ensure stable operation for connected devices.
Q4: What kind of industrial protections are included? A: It includes multiple protection circuits such as 8KV ESD protection, over-voltage, over-current, short circuit, over-temperature, and reverse current protection.
Q5: Is it compatible with Linux and Raspberry Pi? A: Yes, it is fully compatible with Linux (2.4.20 or above) and works perfectly with Raspberry Pi and other similar development boards.
Q6: What is the operating temperature range? A: Designed for industrial environments, it can operate in temperatures ranging from -40ºC to 85ºC.
