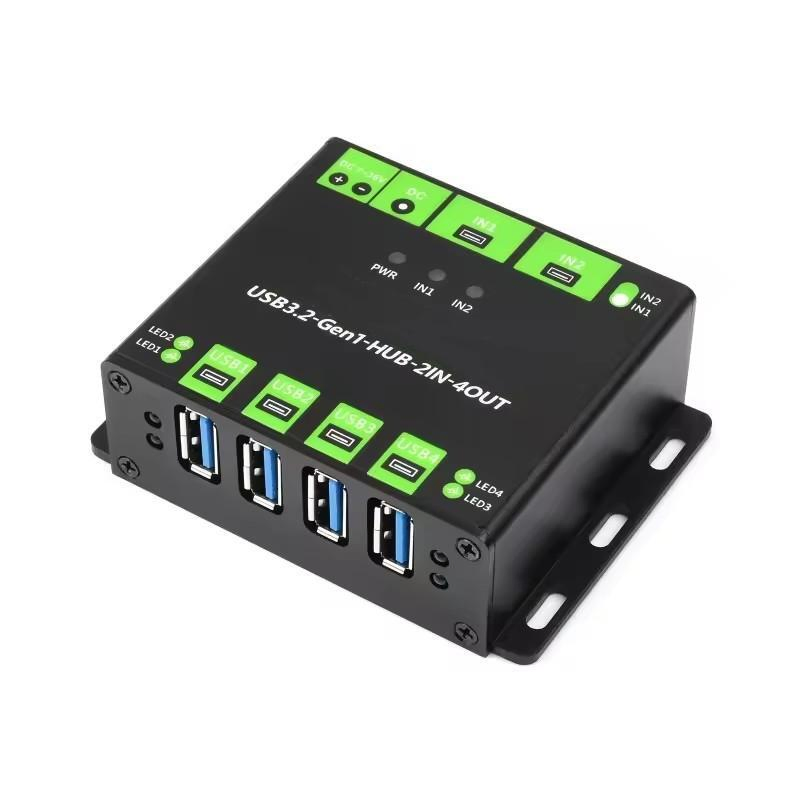

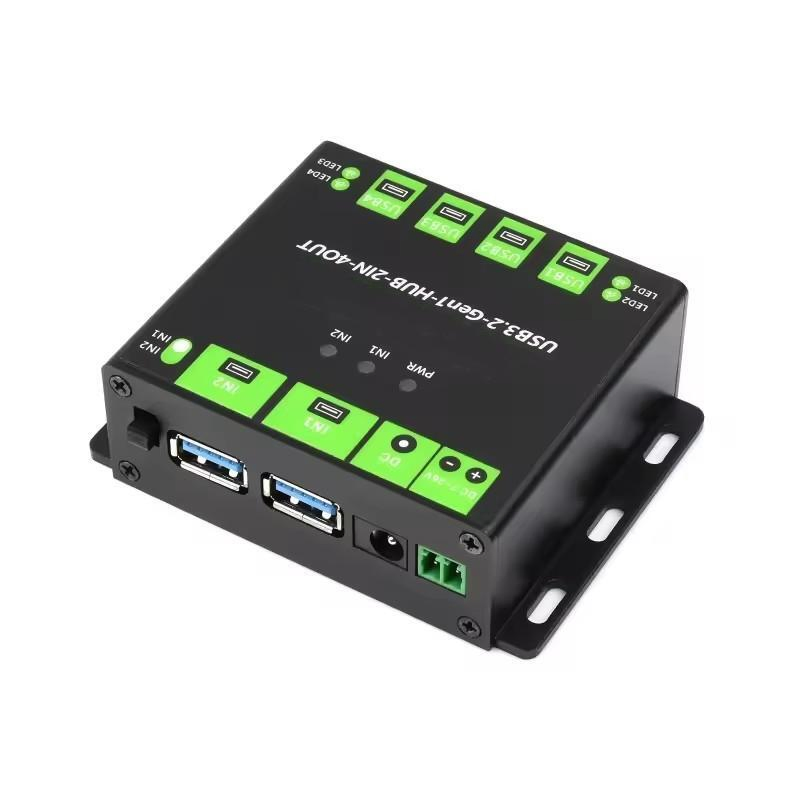

Industrial Grade USB Hub, Extending 4X USB 3.2 Ports, Switchable Dual Hosts, Multi Protections

1 / 5

Industrial Grade USB Hub, Extending 4X USB 3.2 Ports, Switchable Dual Hosts, Multi Protections

Customization:	Available
Interface Type:	USB
Structure Function:	HUB No Manage

Send Inquiry

Product Description

Basic Specifications

Model NO.

USB3.2-Gen1-HUB-2IN-4OUT

Bandwidth

Customization

Network Mgmt

Unmanaged

Ports

2-4 Ports

Transfer Rate

5Gbps / Customization

Size

Rack-Mounted / Industrial

Signal Type

Active HUB

Origin

China

📦

Packaging & Delivery

Package Size

12.00cm * 13.00cm * 16.00cm

Gross Weight

1.000kg

⚙

Product Description

Industrial Grade USB HUB: Extending 4x USB 3.2 Ports, Switchable Dual Hosts, with Multi-Protections for stable performance in demanding environments.

Technical Specifications

STANDARD	High speed USB 3.2 Gen 1
DATA RATE	Up to 5Gbps
USB OUTPUT	5V@Imax:1.2A, USB-A connector

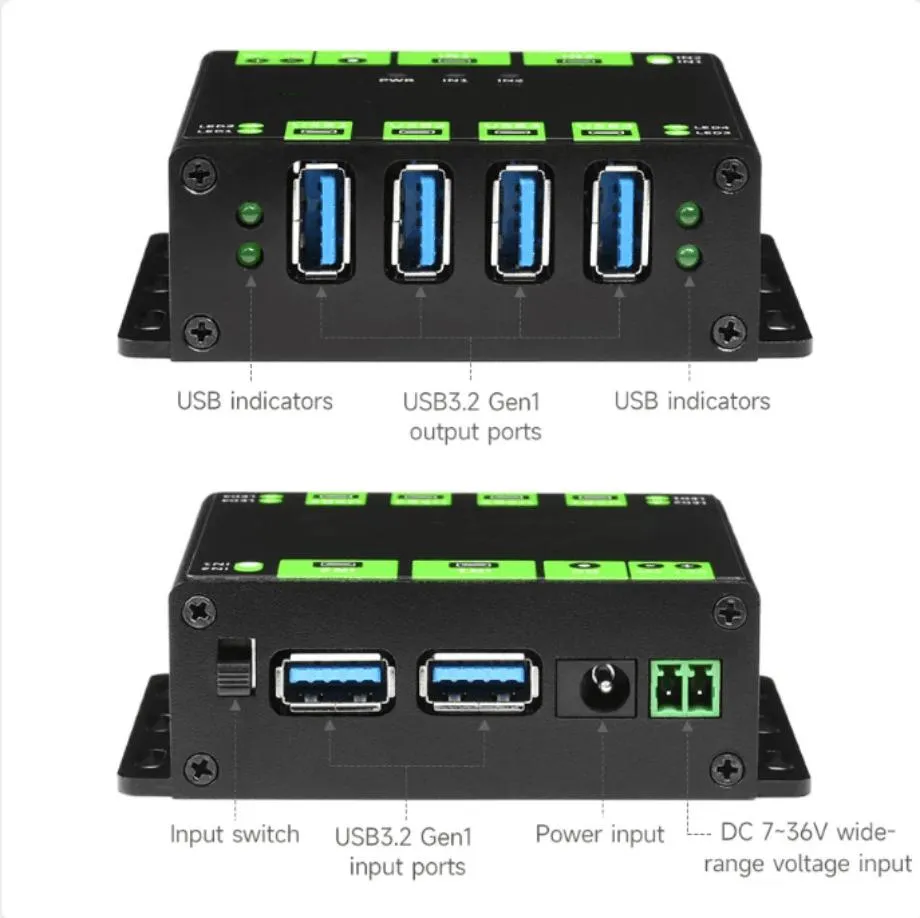

USB HUB INPUT	5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
EXTERNAL POWER	DC power supply terminal 7~36V (Required for high power devices)
ENVIRONMENT	Operating: -40ºC ~ 85ºC
OS SUPPORT	Mac OS (8.6+), Linux (2.4.20+), Windows 11/10/8.1/8/7/XP

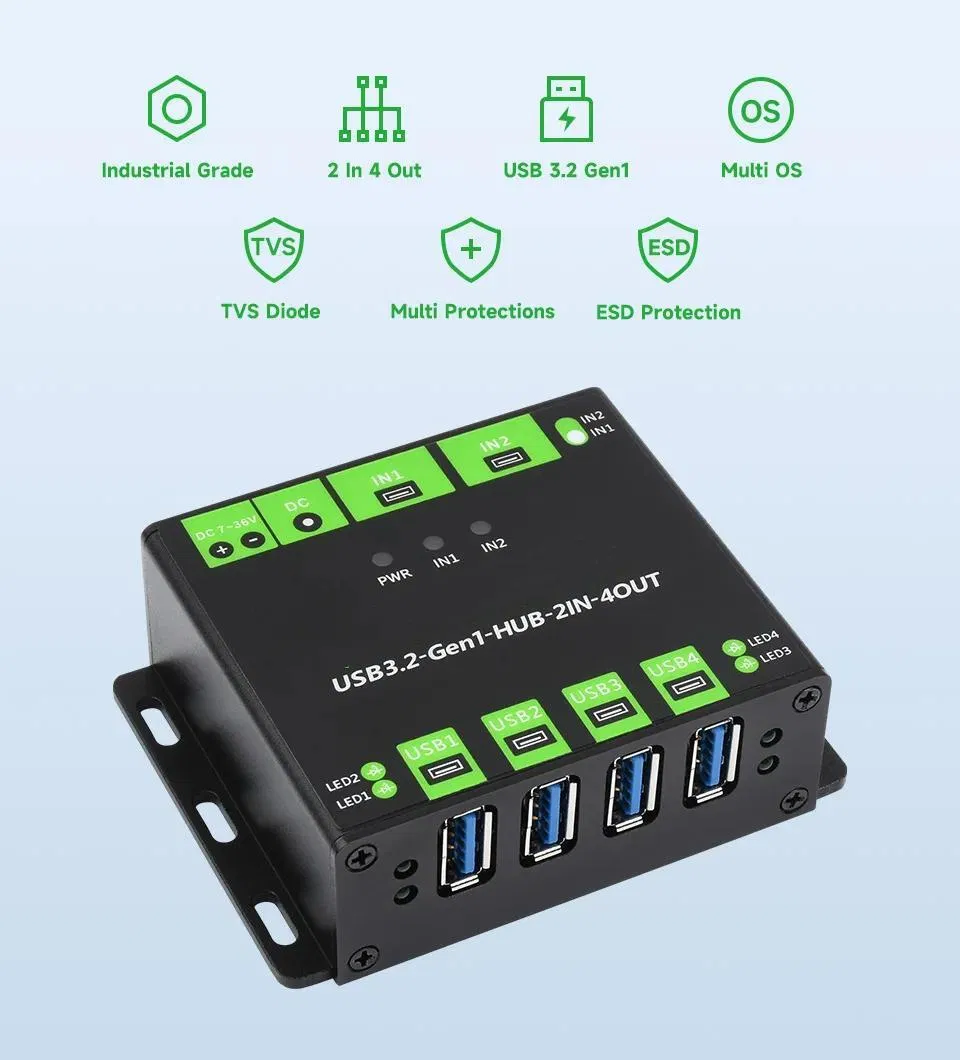

Features At A Glance

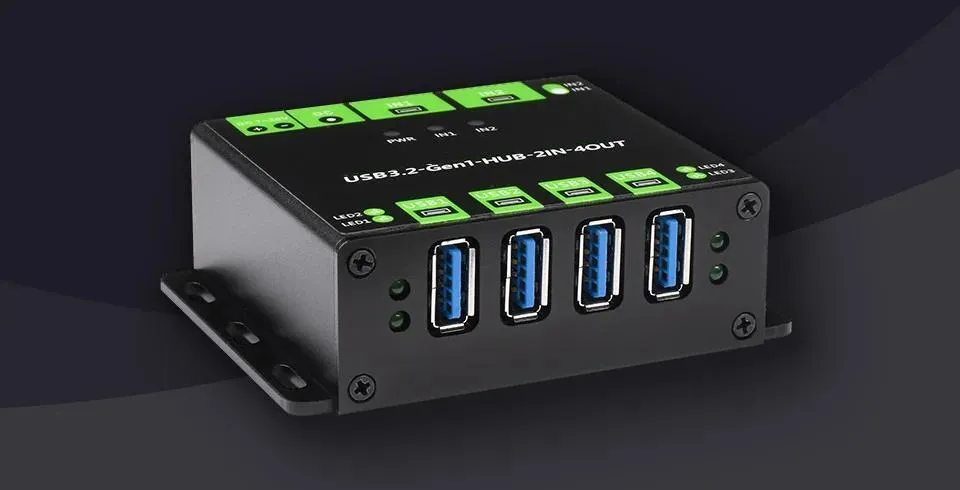

4x extended USB ports with switchable dual inputs for sharing devices between two hosts.
Industrial grade HUB chip with MTT technology for stable 4x concurrent connections.
ESD protection for each USB port to prevent electric surge damage and data loss.
Over-voltage protection prevents damage from high voltage power input.

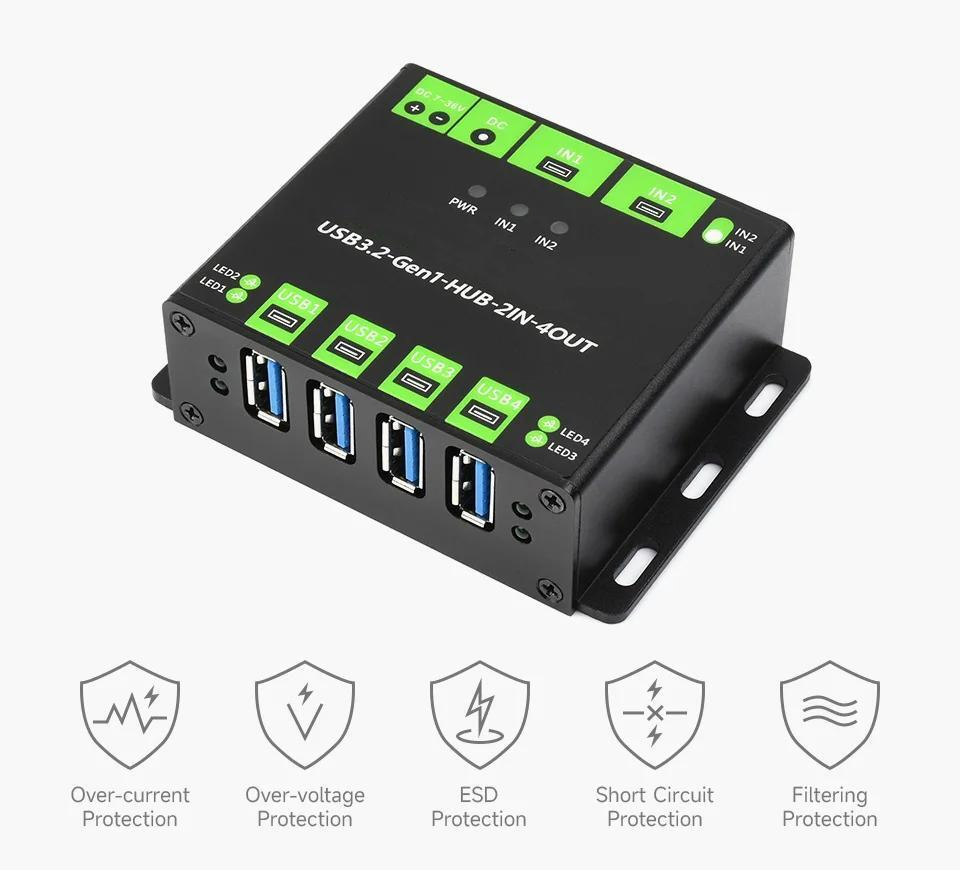

Multiple protection circuits: over-current, short circuit, over-temperature, reverse current, and 8KV ESD protection.
Rugged industrial metal case with mounting holes for easy installation.

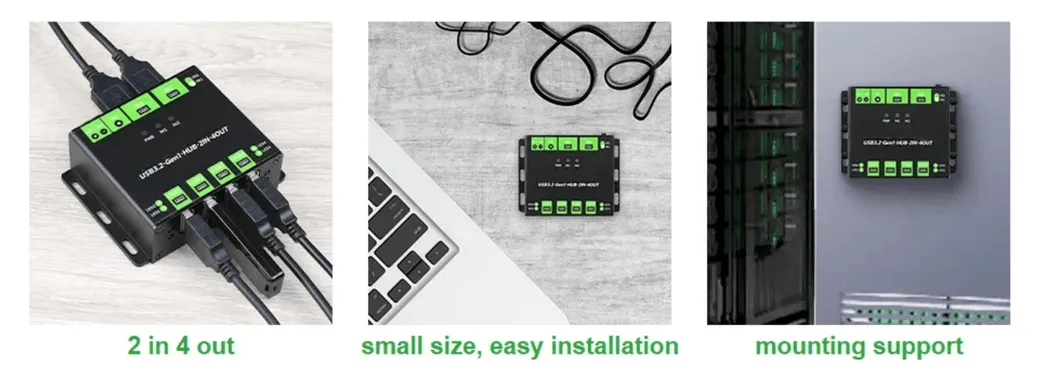

Versatile Application

Suitable for industrial and office environments with higher level device requirements. Switch hosts at any time with the handy switch to keep your workspace tidy.

Frequently Asked Questions (FAQ)

What is the maximum data transfer speed?

This industrial hub supports the USB 3.2 Gen 1 standard, offering data transfer rates up to 5Gbps.

Can I control two different computers with one set of peripherals?

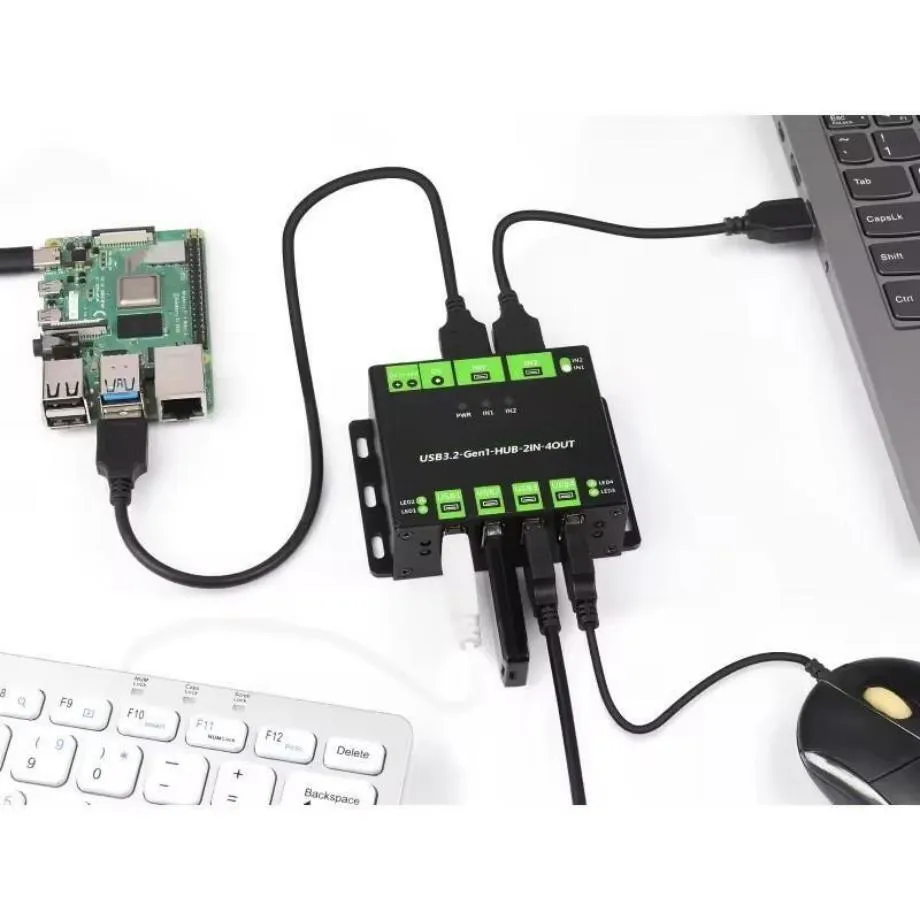

Yes, the hub features switchable dual hosts, allowing you to share the same keyboard, mouse, and USB devices between two computers or systems like a Raspberry Pi.

What kind of industrial protections are included?

The device includes over-voltage, over-current, short circuit, over-temperature, reverse current, under-voltage lock-out, and 8KV ESD protection.

Does it require an external power supply?

While it can work with standard connections, an external DC power supply (7~36V) is required when connecting to high-power consumption devices to ensure stability.

Is it compatible with Linux and Mac systems?

Yes, it is plug-and-play compatible with Mac OS (8.6 or above), Linux (2.4.20 or above), and Windows (XP through Windows 11).

What is the operating temperature range for this hub?

Designed for industrial use, the hub operates reliably in environments ranging from -40ºC to 85ºC.
