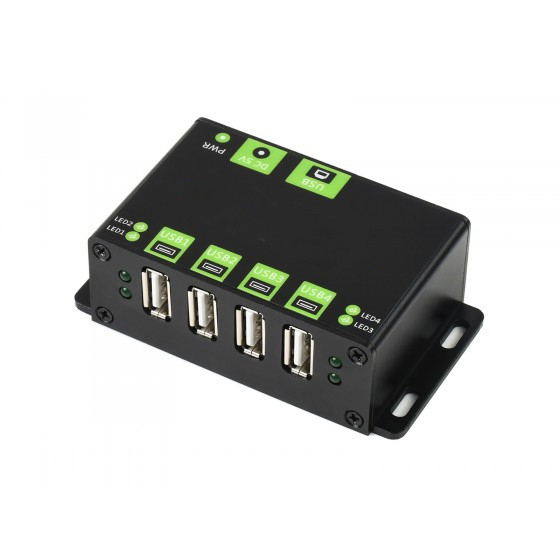

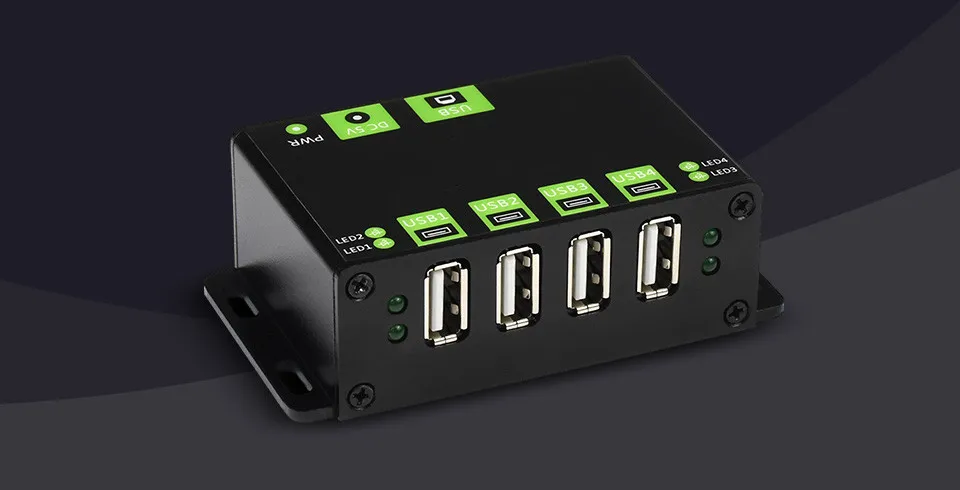

The Port series USB hubs are industrial-grade, and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and can provide true Hi-Speed USB 2.0 data rates up to 480 Mbps—even for heavy-load applications. The series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that can operate reliably even in harsh conditions.
| STANDARD | USB 2.0 |
|---|---|
| DATA RATE | up to 480Mbps |

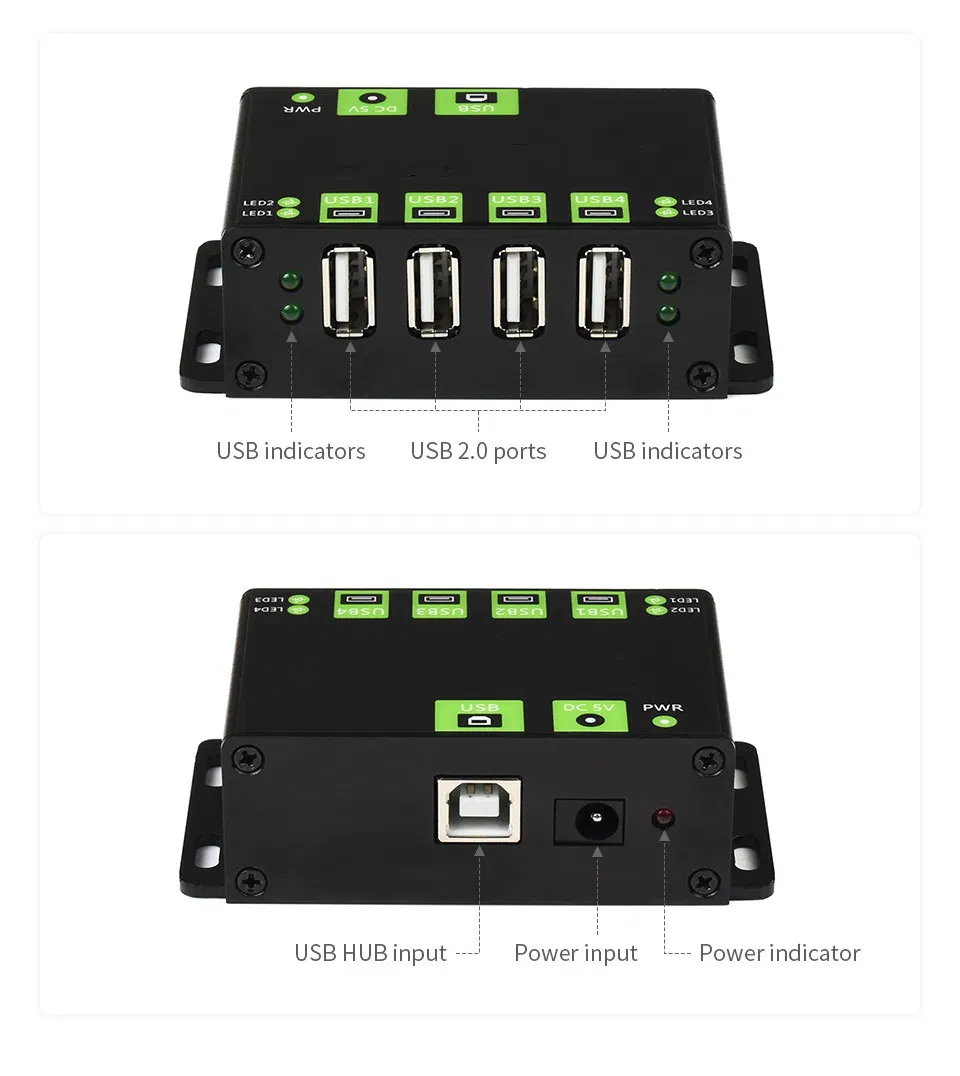

| USB HUB INPUT | operating voltage: 5V connector: USB-B |
| USB OUTPUT | operating voltage: 5V@Imax:1.2A connector: USB-A |

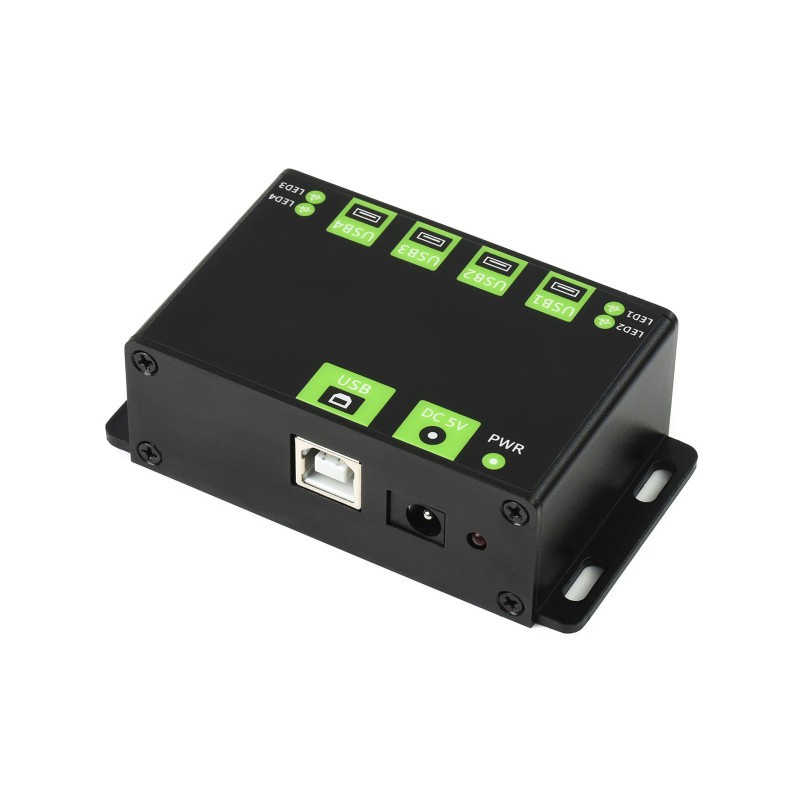

| EXTERNAL POWER | power supply voltage: DC 5V connector: DC jack |
| OPERATING ENVIRONMENT | -40ºC ~ 85ºC |
| OS SUPPORT | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
* up to 1.2A Max output current for each USB port when sufficient power is supplied. Comes with 5V 2A power supply; 5V 4A or above recommended for higher USB loads.

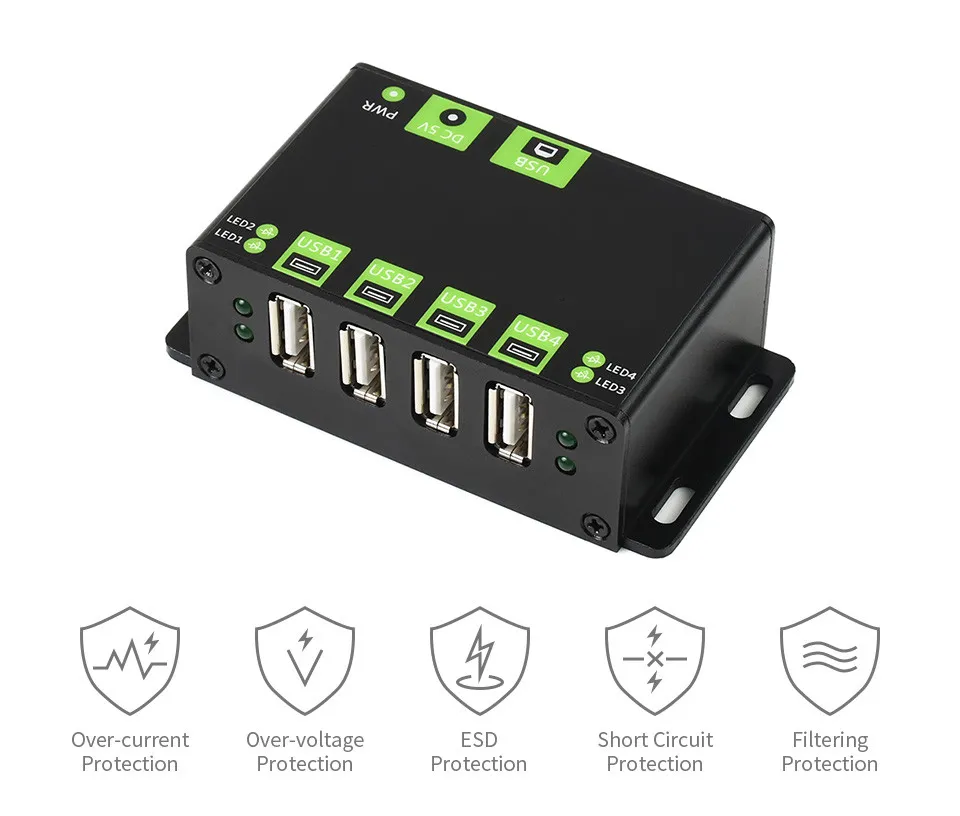

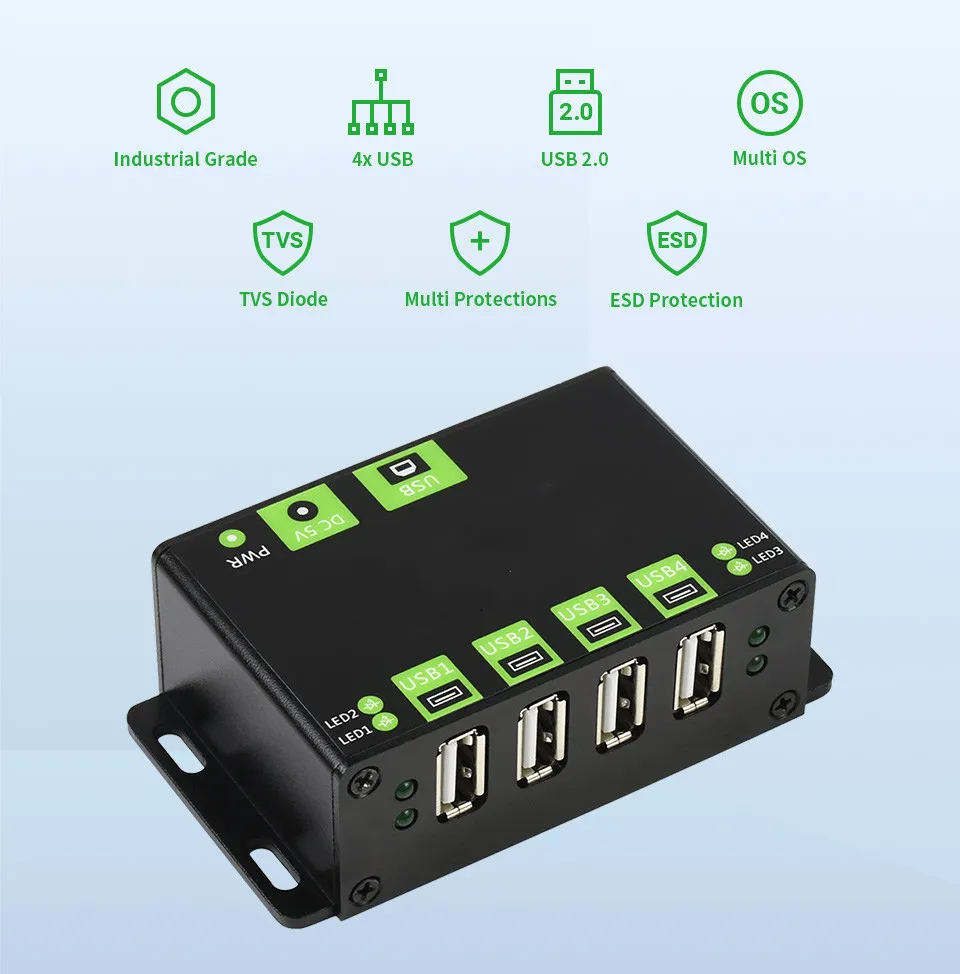

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

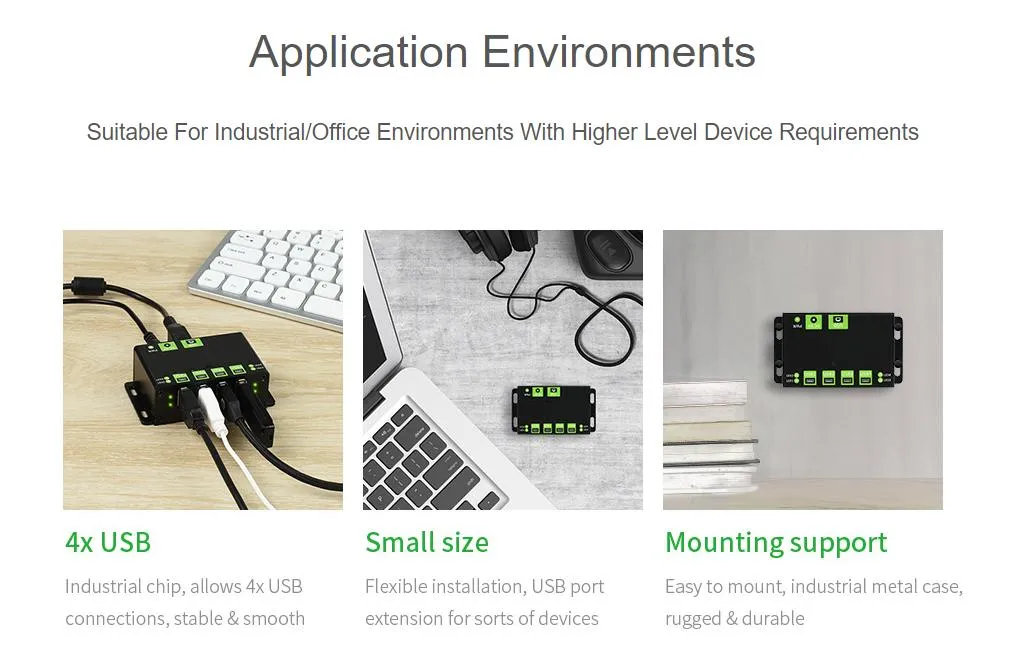

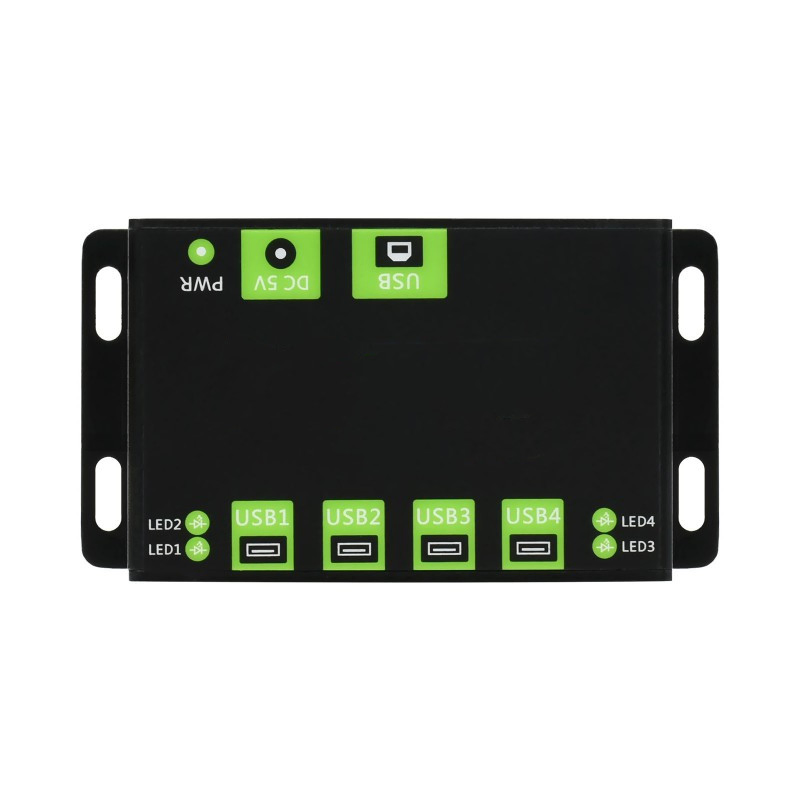

4x Concurrent USB Connections, Stable And Smooth Performance
